IRT PrepCure Prep X 3-1 and 3-2 LDP
userfriendly prepcure

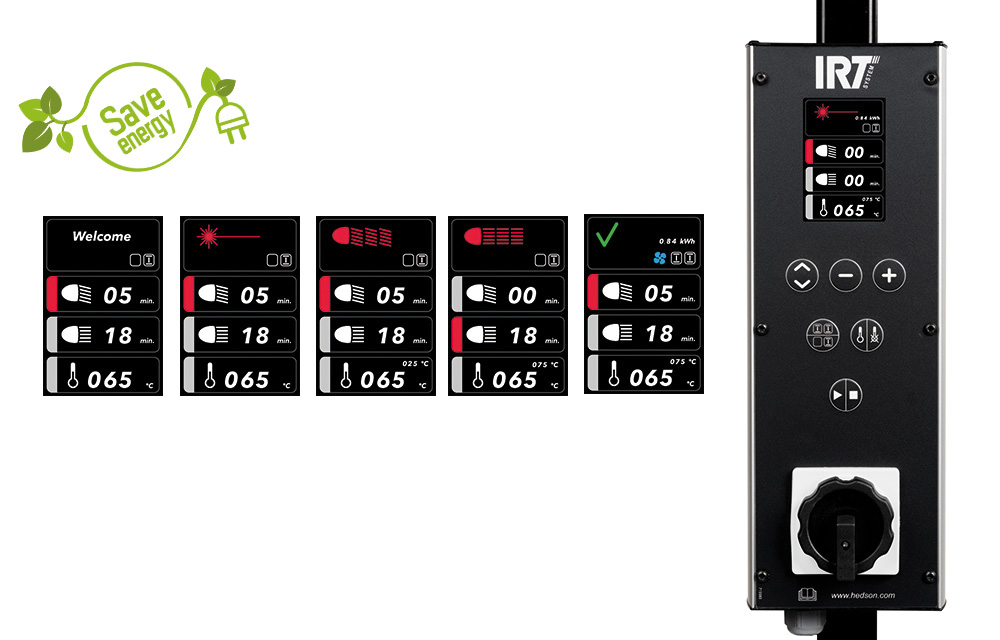

- Temperature setting
- User-friendly laser distance guide
- Energy-use displayed after each cycle
- 1 or 2 cassettes
Merge the dots - cure
- Set the target temperature and time
- Choose 1 or 2 cassettes (Prep X 3-2 LDP)
- Merge the two laser dots on the curing surface – Cure!

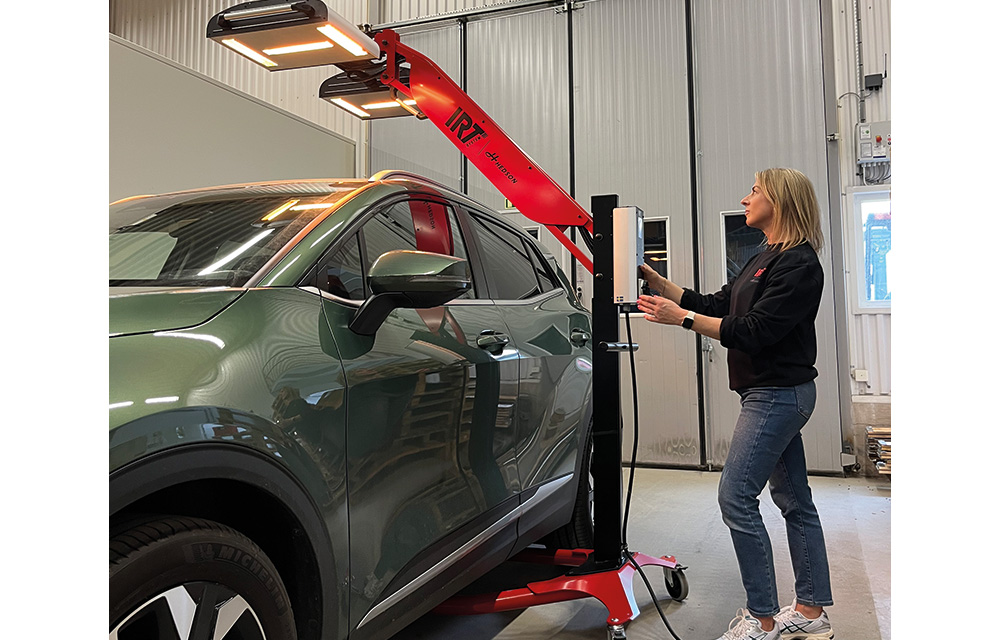

Cure a roof, max height 2.2 m!
- Fingertip-light height adjustment
- Self-locking
- Integrated cables
- Low slim foot
IRT PrepCure Prep X LDP
(L)aser (D)istance guide for easy positioning.
(P)yrometer for correct temperature setting (can also be deactivated).

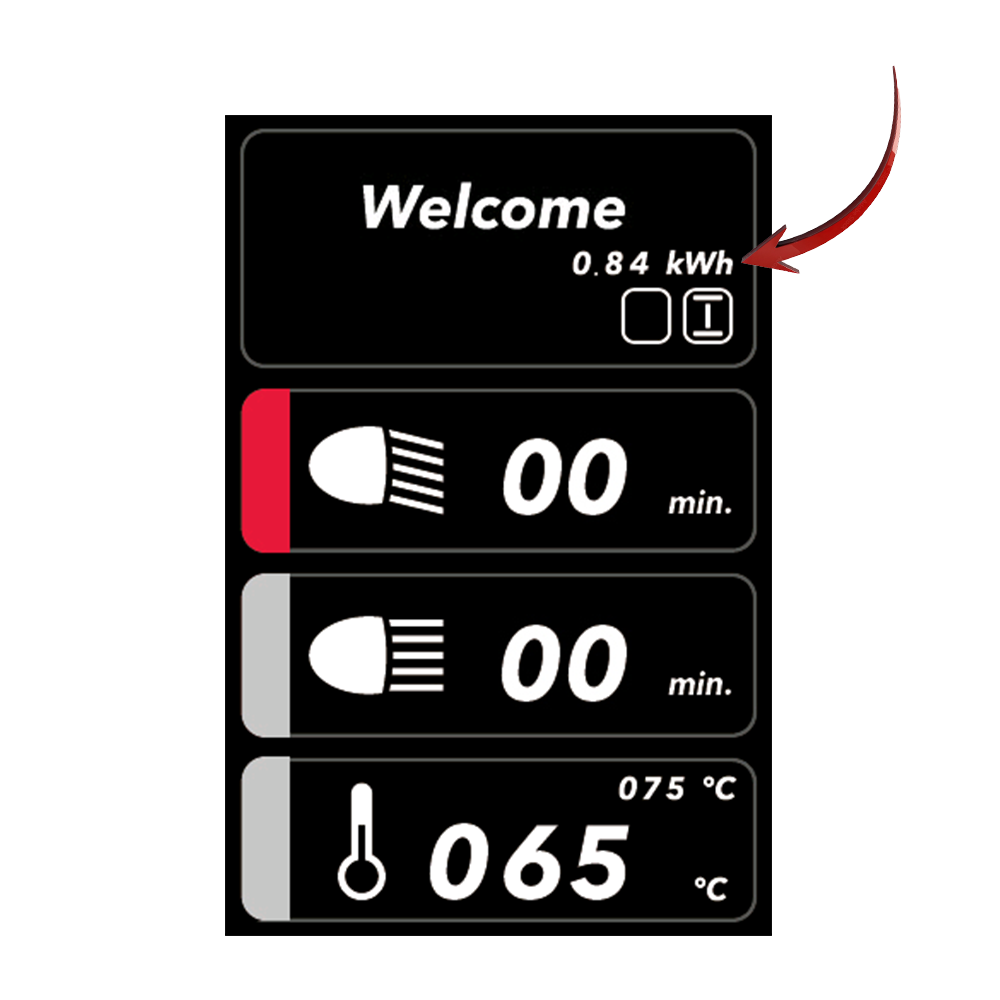

Energy-use displayed after each cycle.
Flash-off/Full bake with time control.
Wide reach, both low and high (max 2.2 m).
Great coverage: 1 cassette: 1.0 x 1.1 m -2 cassettes: 2.0 x 1.1 m (on black surface at 60 cm distance.)
3 lamps/cassette, 1000 W/lamp.
Low slim base and finger-light arm design.
Parks with small foot-print, cassettes between the legs.
Powerful ventilation increases lamp life.
Efficient IRT FreeForm 24K gold reflector.

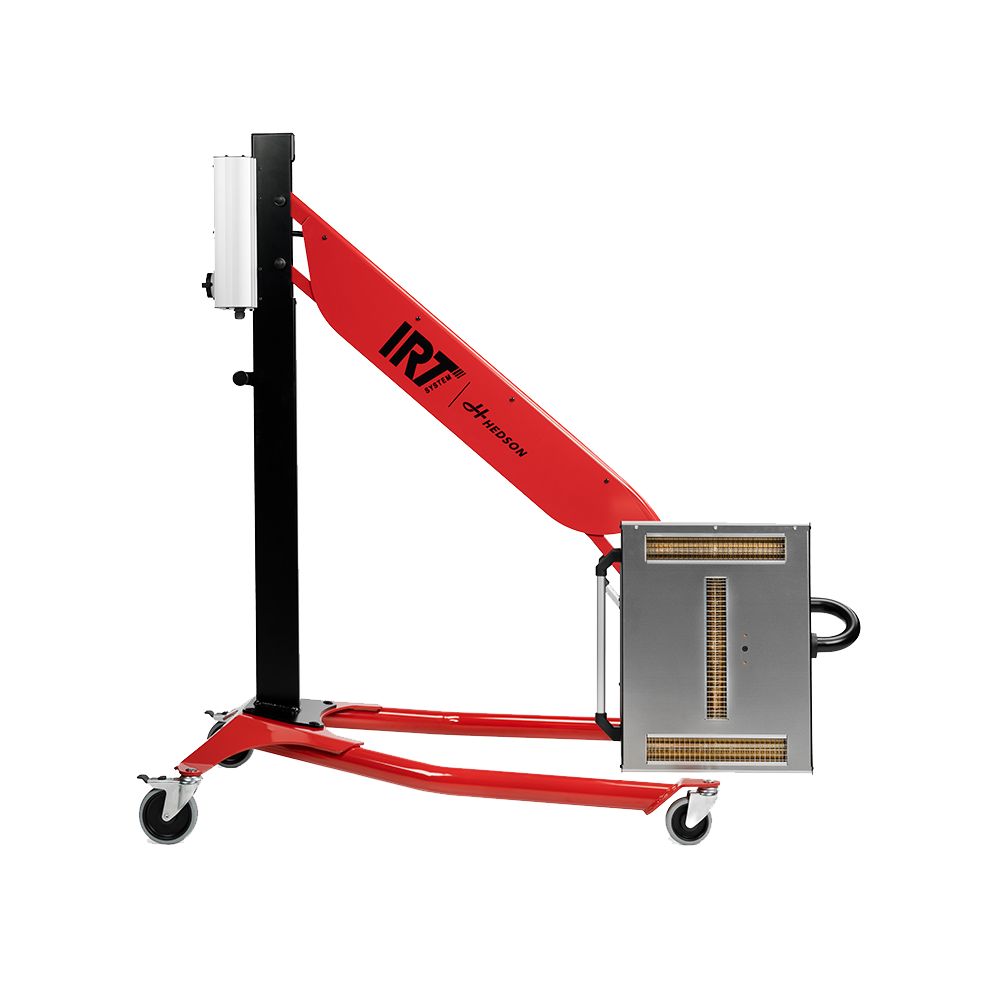

prep x 3- 1 ldp (1 cassette)
| Part no. | Current | Output power | Fuse | Voltage | Frequency |
|---|---|---|---|---|---|
| 801405 | 13 A | 3 kW | 16 A | 230V, 1 PH, EU | 50-60 Hz |
| 801406 | 13 A | 3 kW | 13 A | 230V, 1 PH, UK (UK plug) | 50-60 Hz |
| 801407 | 13 A | 3 kW | 16 A | 230V, 1 PH, AUS & ARG type 1 | 50-60 Hz |
| 801408 | 13 A | 3 kW | 15/20 A | 200V, 1PH JP | 50-60 Hz |
| 801409 | 13 A | 3 kW | 20 A | 230V, 1PH, NA ETL | 50-60 Hz |

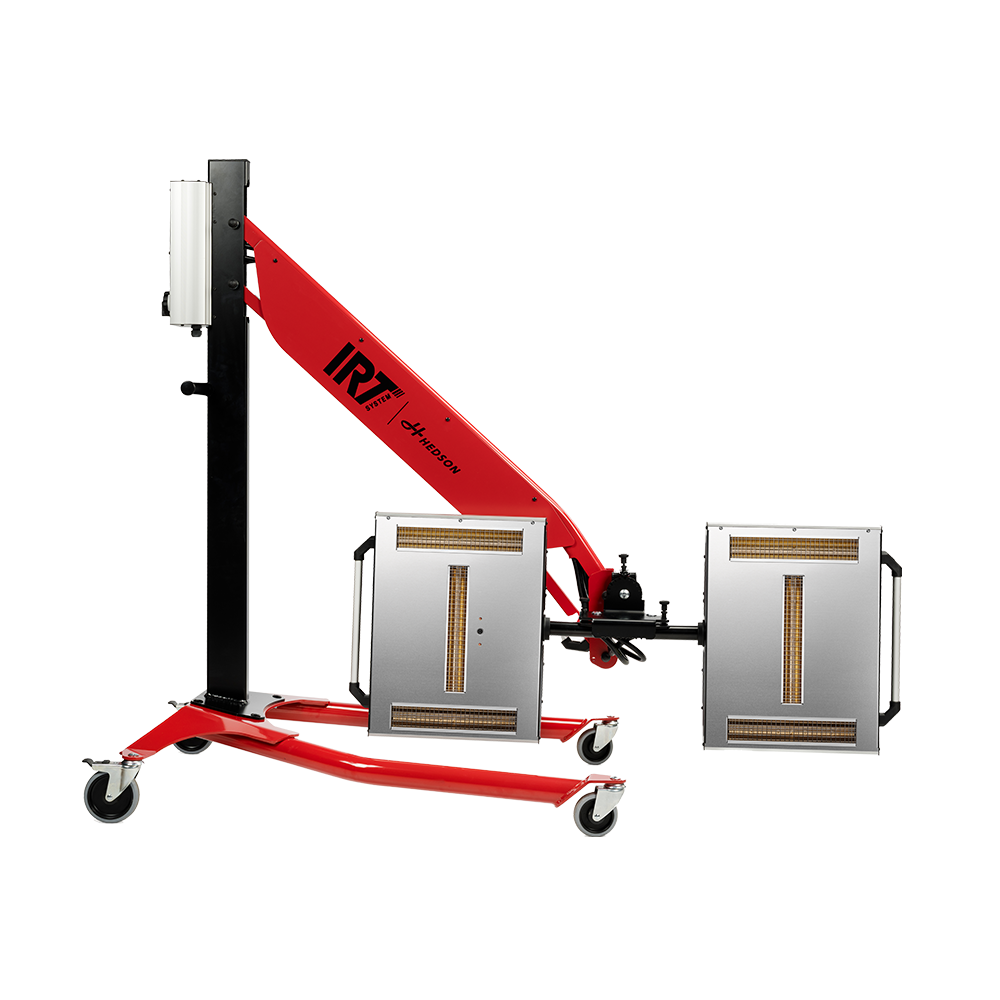

prep x 3- 2 ldp (2 cassettes)
| Part no. | Current | Output power | Fuse | Voltage | Frequency |
|---|---|---|---|---|---|
| 801420 | 9 A | 6 kW | 16 A | 400V, 3 PH, 4 pin, EU | 50-60 Hz |
| 801421 | 9 A | 6 kW | 16 A | 400V, 3 PH, 5 pin, EU/UK | 50-60 Hz |
| 801423 | 9 A | 6 kW | 16 A | 400V, 3 PH, AUS | 50-60 Hz |
| 801425 | 26 A | 6 kW | 30 A | 230V, 1PH, NA ETL | 50-60 Hz |
Related Equipment
Even heat = faster, better curing.
The IRT FreeForm reflector shape is carefully designed so that no spots get too hot or too cold. (Because the coldest part decides how long curing takes, and the hottest part limits the max temperature.)
Less wasted energy with 24K gold.
We coat the IRT FreeForm reflector with 24K gold. This reflects the infrared energy onto the surface (up to 97%), not the surroundings.
Longlife lamps – low maintenance.
To keep everything running smoothly, a high-quality ventilation system prevents overheating. This help the lamps last way longer (up to 20.000 hrs).
