Product Highlights

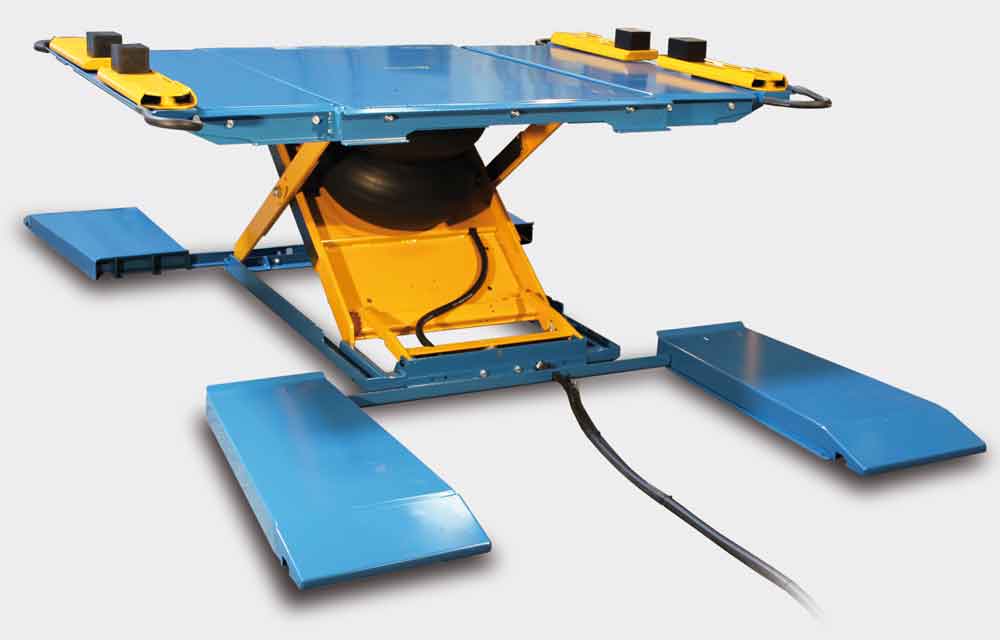

High capacity
The lifting and lowering of the working height is done safely and smoothly with a Herkules K700 by Hedson and increases the access to damaged areas and the ergonomic work process with loading capacity up to 2,8 tons
Space saving
No installations are required, can be used immediately and facilitate an individual planning of the tire workshop by using the existing space optimally.

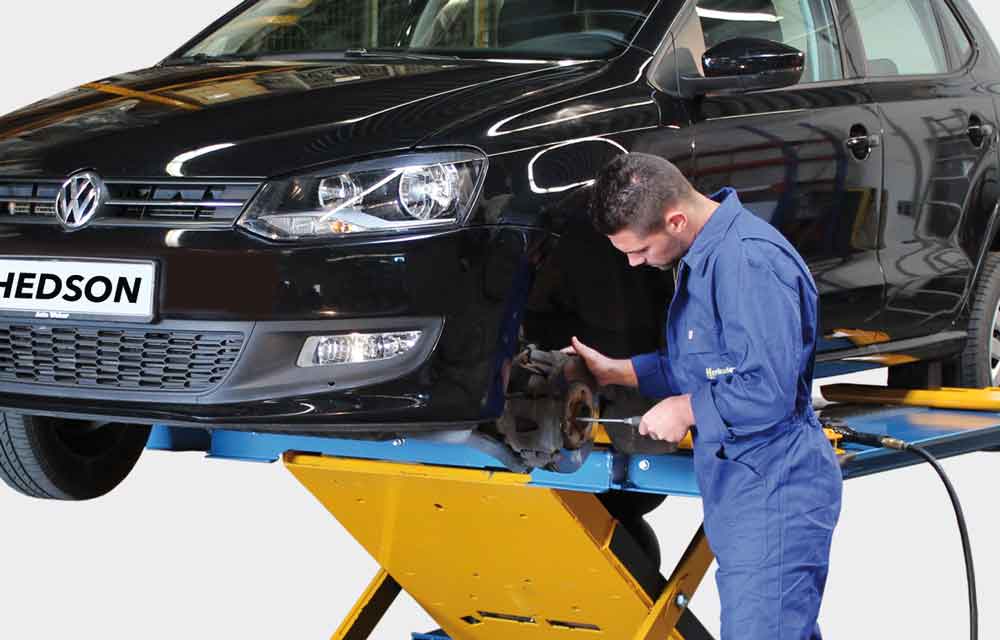

Ergonomic
The lifting height of this lift allows for an ergonomic work position and due to the wheel free lifting all work at the tire service, brake-service or tuning operations are accomplished.
The ergonomic work and the good visual control opportunities increase the efficiency and ensure the health of the employees.

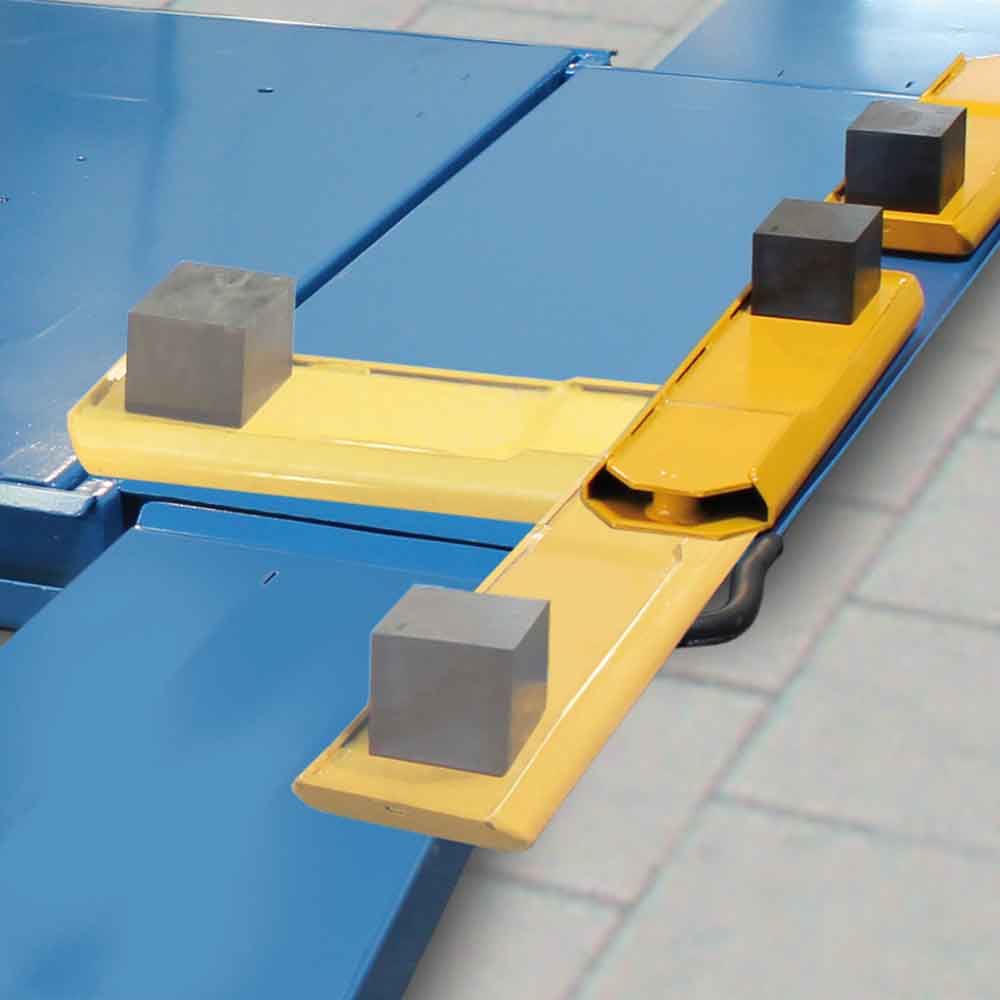

The large radius of the swivel arms reach easily the vehicle’s original lifting points.

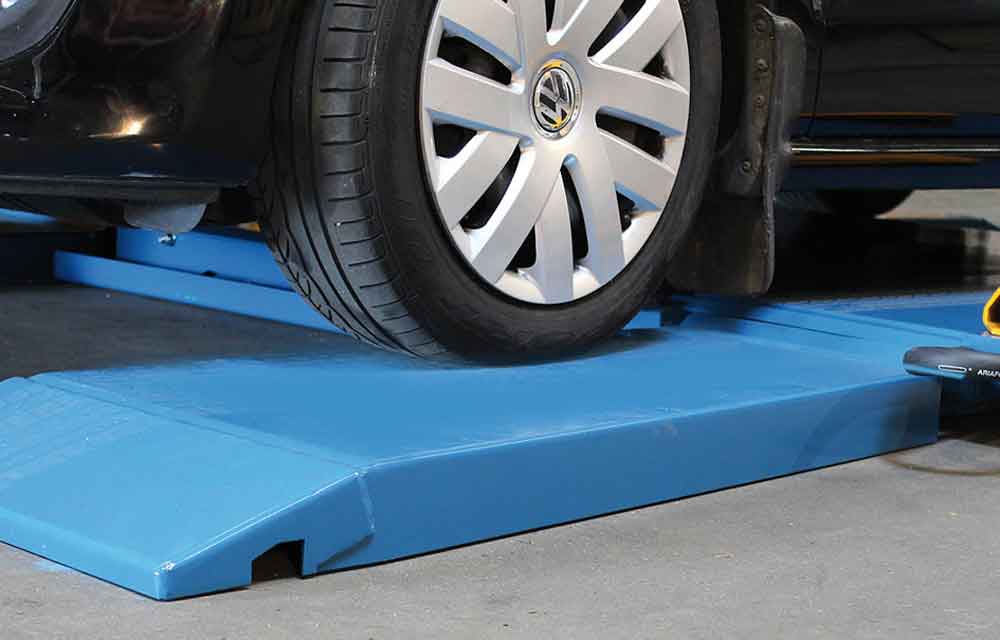

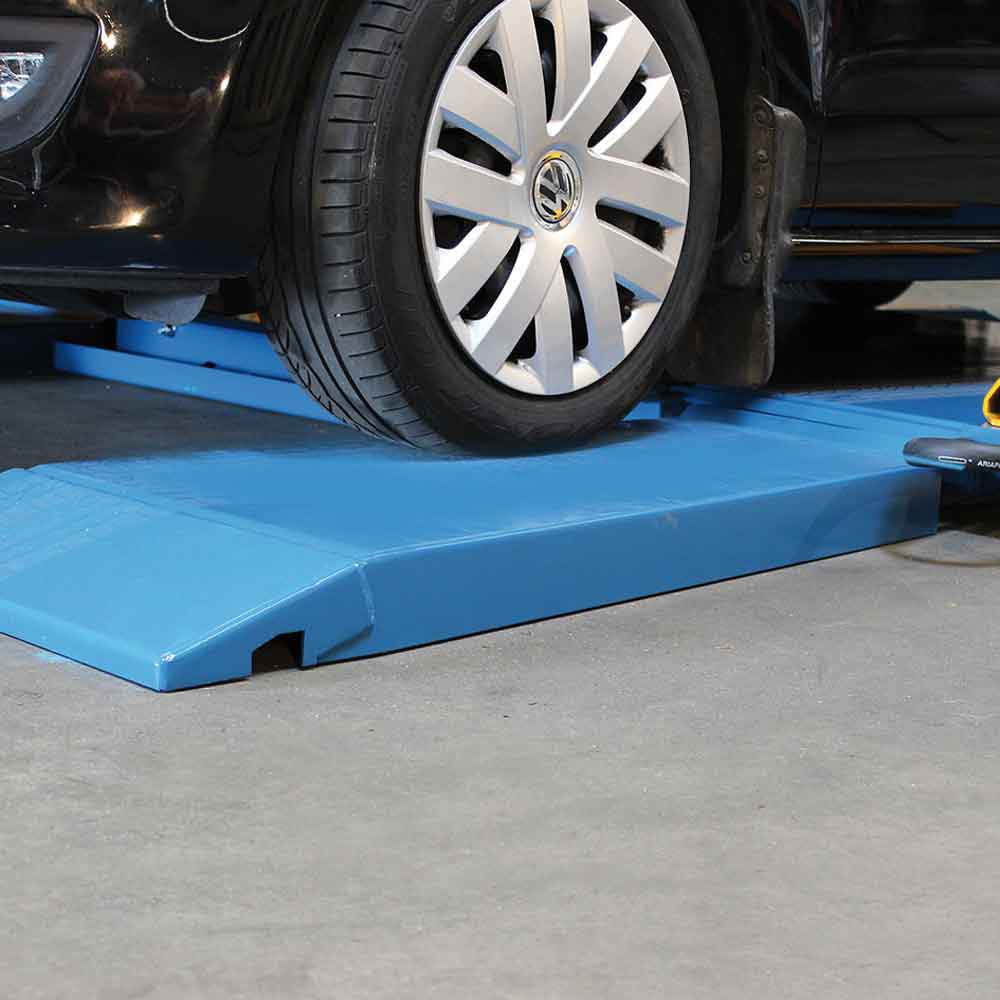

The double-wedge ramp allows for an easy and non-damaging access even with
lowered vehicles.
Measurement
Herkules lifting
by Hedson
Herkules K700

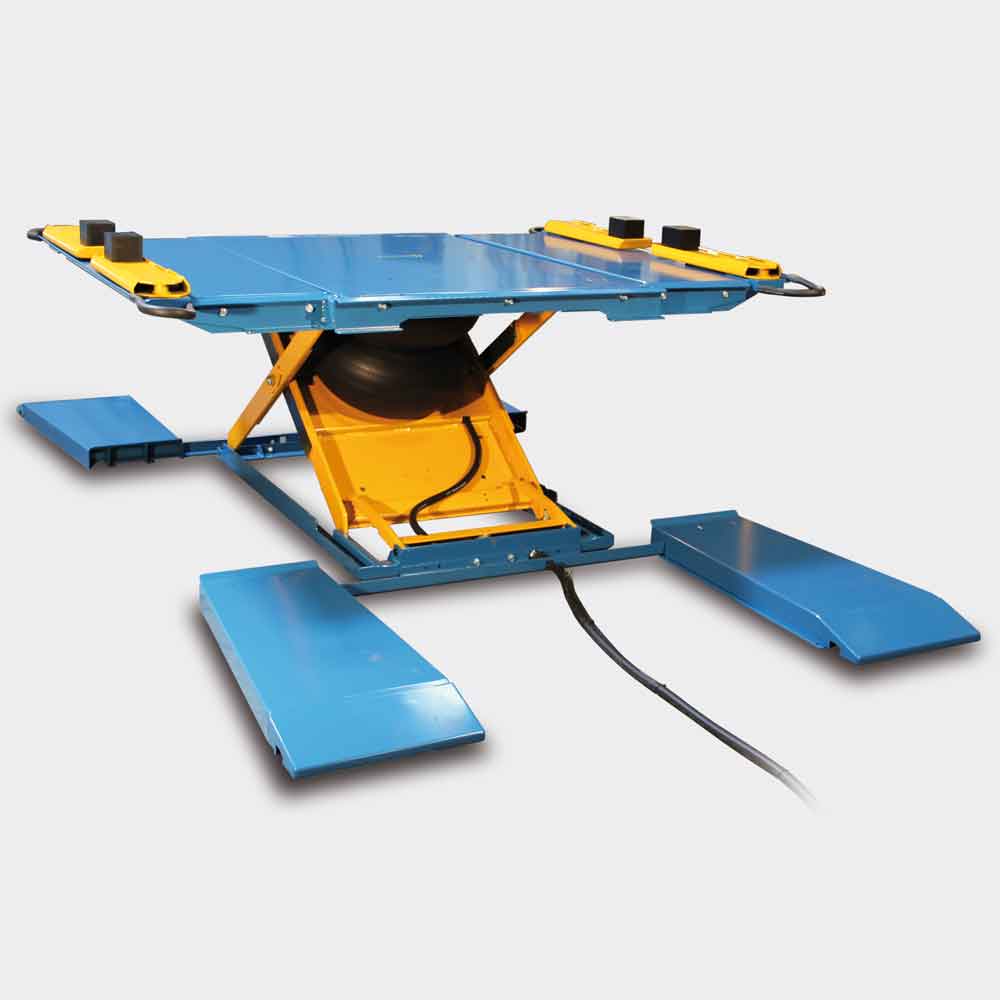

With a Herkules K700 by Hedson lift there is no installation necessary in the tire workshop, the lift is ready to use immediately. The lifting height of this lift allows for an ergonomic work position and due to the wheel free lifting all work at the tire service, brake-service or tuning operations are accomplished.
The double-wedge ramp allows for an easy and non-damaging access even with lowered vehicles. Thanks to the radius, the swivel arms reach easily the vehicle’s original lifting points.
More possibilities through conversion: Dropping off the driving tracks and replacing the supports the K700 can be converted into a stout body shop lift for the use for bodywork and tuning operations.
- 2,8 tons loading capacity
- Low drive-over height
- Rounded-off angles of the swivel arms
Technical Specification
Herkules K700
- Herkules K700
- Part.no. K700-45
- Weight
- 840 kg
- Loading Capacity
- 2,8 tons
- Air supply
- 6 bar
- Working height
- ~1100 mm
- Object height only
- 110 mm
- Lifting height
- 930 mm
Consumables - Rubber blocks
- 120x100x30 mm for DB
- Part.no. 800-104
- 120x100x80 mm Standard
- Part.no. 800-105
- 220x130x120 mm for Multi lift
- Part.no. 800-106
- 120x120x100 mm for Multi lift
- Part.no. 800-107
- 220x130x120 mm RS lift
- Part.no. 800-108
- 160x140x110 mm for VW bus, Transporter
- Part.no. 800-112
Spare part list
As a Hedson Partner you can log-in to take part of our spare part lists. Log in…
If you are a Hedson Partner but don’t have access to the Partner Portal, please contact your Hedson contact person to get your account.
If you are an end-user, please contact your local reseller for more information.
