Drester GP10 Monza

Rational and efficient wheel washer with fantastic cleaning performance

Product Highlights - GP10 Monza

Time saving

Adjustable settings, from 25-155 sec, that suits the need for every tire and a Quick Lift that loads heavy wheels in 3 seconds will save time in the tire shop, making it possible to serve even more cars, making more profit

Cost saving

Washing wheels with a Drester by Hedson wheel washer is a profitable service that improves wheel balancing results and adds real customer value. Energy-saving intelligent heating system, low water consumption through closed water system are only two parameters of possible cost savings to make

Environmentally friendly

The Drester GP wheel washers use a closed water system – the machines are operated without water or sewage connections – requiring only electricity and compressed air. The system uses water very efficiently, consuming just one litre per wheel. If required, the Drester waste water cleaning method can be used. By using a flocculation agent and a mixing motor, water and residuals are separated. The filtered clean water can be let out into the drain

Technical Specification

Drester GP10 Monza

Drester GP10 Monza
Part.no. WD10302-AD1
Shipment dimensions
1 pcs on pallet, 1300*1200 mm, 306 kg
Wheel width
145-360 mm (6”-15”)
Wheel diameter
540-860 mm (22”-34”)
Max Wheel Weight
60 kg (132 lbs)
Compressed air connection
8-12 bar (120-174 psi)
Air consumption
400 litres/wash cycle
Air flow
1000 litres/min. at 7 bar
Power supply
400V, 3~, 50 Hz, 16 A
Measures (WxDxH) - without Quick Lift
1081 x 1201 x 1489 mm (43 x 47 x 59”)
Measures (WxDxH) - with Quick Lift
1153 x 1226 x 1489 mm (45" x 48" 59")
Weight of unit
230 kg (510 lbs) without water or DoublePower
Weight of Quicklift
26 kg (60lbs)
Water volume
310 litres (82 US-gallon)
Water consumption
1 litre/washed wheel
Cleaning time/wheel
Adjustable settings from 25-155 secs settings when delivered: 30, 60, 90, 120 sec (dry blowing not included).
Clean rinse
0,3 litre/wheel
Included in delivery
1 rubber mat, 20 kg (44 lbs) of DoublePower Granules, Heater, Granule Basket

Manual

Drester GP10 Monza
PDF
12.99 MB
Download

Spare part list

As a Hedson Partner you can log-in to take part of our spare part lists.   Log in…

If you are a Hedson Partner but don’t have access to the Partner Portal, please contact your Hedson contact person to get your account.

If you are an end-user, please contact your local reseller for more information.

Consumables

Consumables

drester by hedson wheel washer granules

Optimal cleaning performance - only water and granules
Part.no. 230794

Read more

Flocculation Powder for Water Cleaning
5 kg - Part.no R12076
0,5 kg - Part.no R12147

Read more

Detergent BIO-291
Part.no. BIO-291

Read more
Hose filter

Hose Filter for water cleaning
Part.no. 12038

Read more

Performance Components

Granule filter

Filter suitable for all Drester wheel washers
Part.no. 230508

Read more
QuickLift

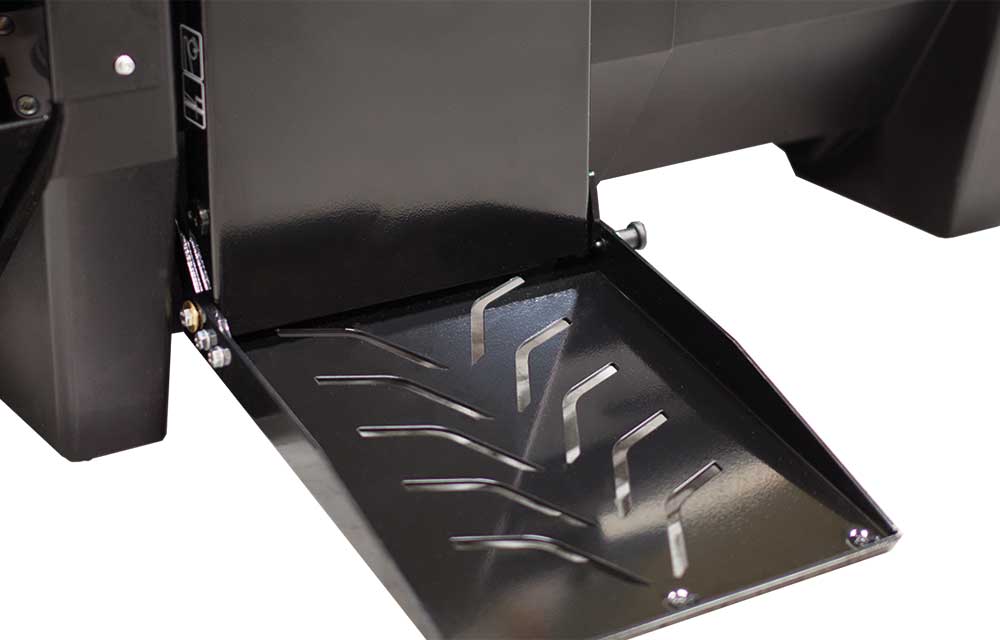

The Quick Lift loads a heavy wheel in less than 3 sec.
Part.no. 230315

Read more
