Herkules AirgoMatic Pro 3513 DUO

Powerful lift with innovative details for the body and paint shop. The new generation of Herkules lifts is characterized by a functional and well thought-out design

Herkules AirgoMatic Pro 3513 DUO

THE INNOVATIVE LIFT FOR THE CLEVER PAINT SHOP OWNER

The new generation of pneumatic Herkules lifts is characterized by a functional and well thought-out design. Many innovative details help simplify everyday work in the paint shop. Despite the compact design, which also characterizes the previous Herkules lifts, longer and heavier vehicles can also be lifted on the new Herkules lift thanks to intelligent roll-off protection and a lifting capacity of 3.5 t. New technology makes the DUO function safer and easier to use than ever before.

Highlights for Herkules AirgoMatic Pro 3513 and Herkules AirgoMatic Pro 3513 DUO

Powerful

Lifting capacity of 3.5 to for lifting vans and heavy electric vehicles

Fit

Lifting hight 1300 mm for ergonomic work

Compact

Space-saving and elegant design

Customisable

Modular pneumatics with optional features

Safe

Standard CE stop according to the DIN standard

Specific Highlights for Herkules AirgoMatic Pro 3513 DUO

EASY-GOING

Low construction height of 10 cm for cars with low ground clearance

HANDY

User-friendly slider for the duo function for lifting on chassis

VERSATILE

Long arms, so lifting points are easily accessible for large and very small vehicles

Available VersionsDescription

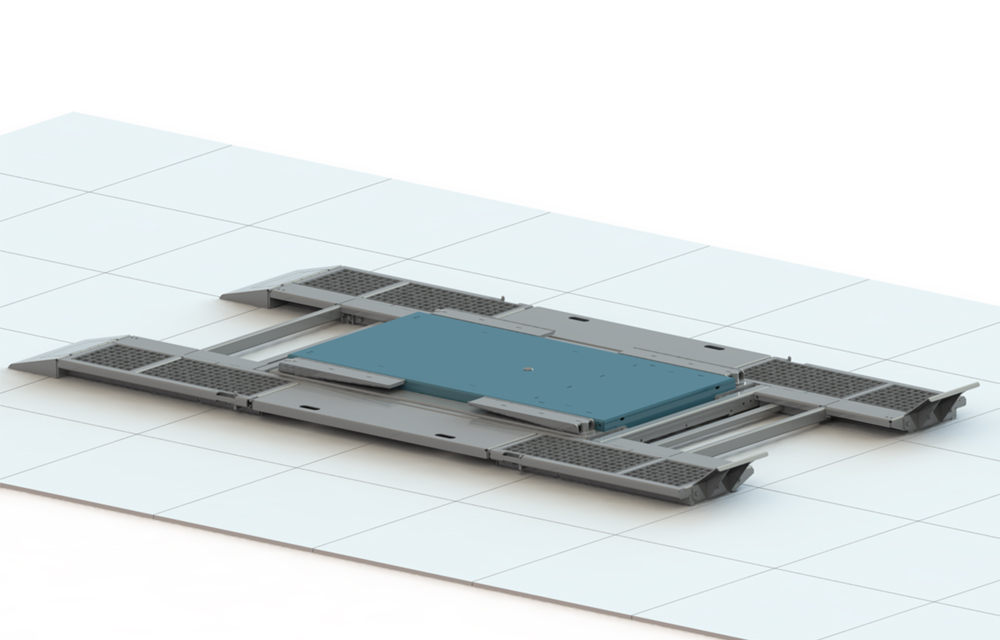

Herkules AirgoMatic Pro 3513 DUO-11Lifting on wheel or lifting on chassis; on-ground installtion

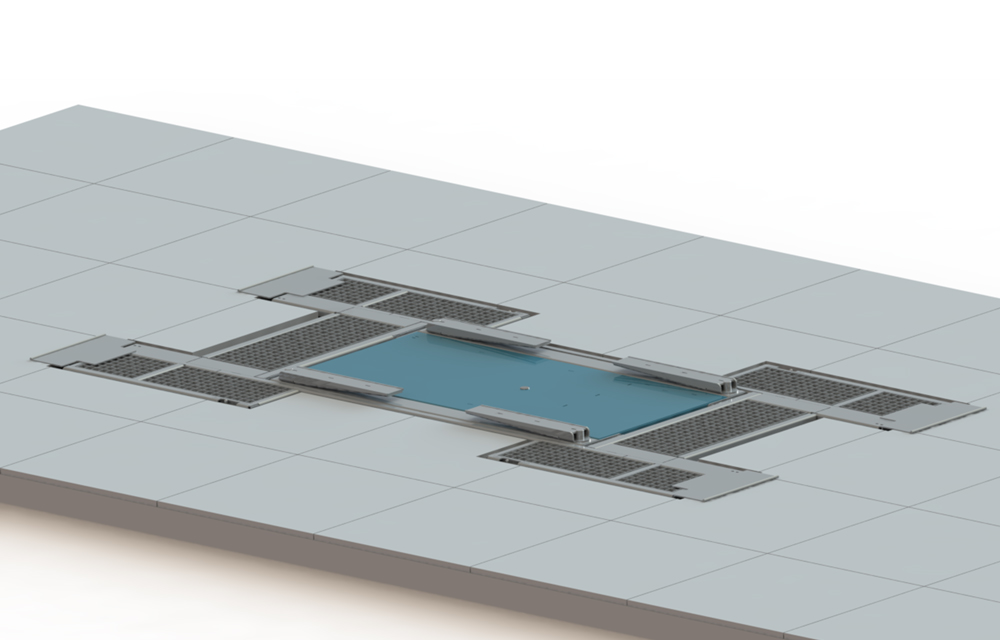

Herkules AirgoMatic Pro 3513 DUO-14Lifting on wheels or lifting on chassis; in-ground installation (concrete or grids)

Benefits for assembly and maintenance

Easy-to-assamble

Simple assembly thanks to useful assembly aids

Modular

Air bellows easily replaceable

Easy-to-maintain

Easy maintenance of the sliding blocks

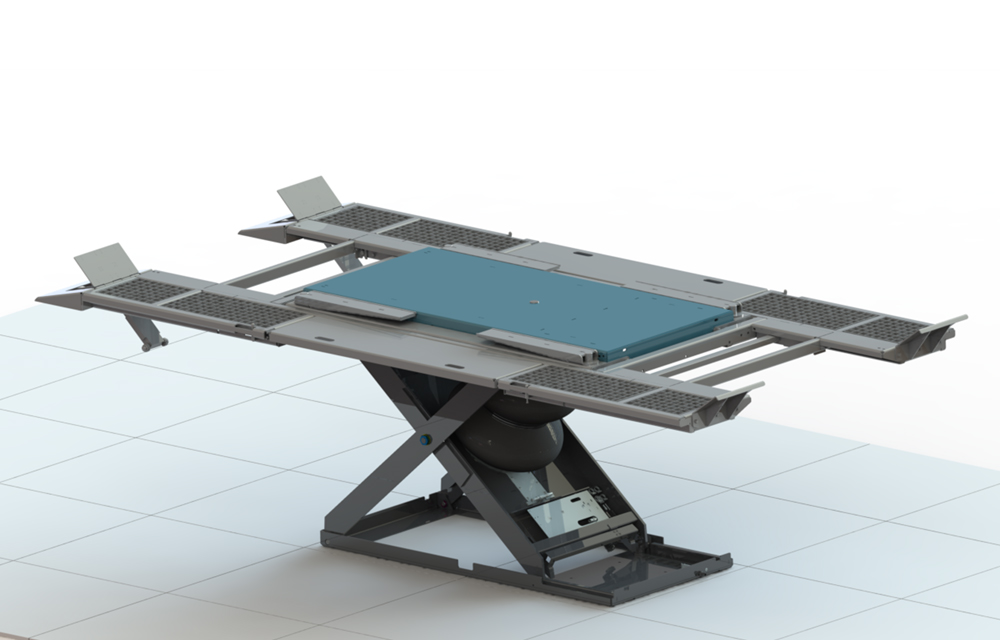

Technical Specification for Herkules AirgoMatic Pro 3513DUO-11 on-ground installation

Lifting capacity
3.5 to
Lifting hight - on-ground version (11)
1300 mm
Air supply
8 bar
Drive over hight - on-ground version (11)
100 mm
Wheelstand max - on-ground version (11)
3700 mm
Weight - on-ground version (11)
1110 kg

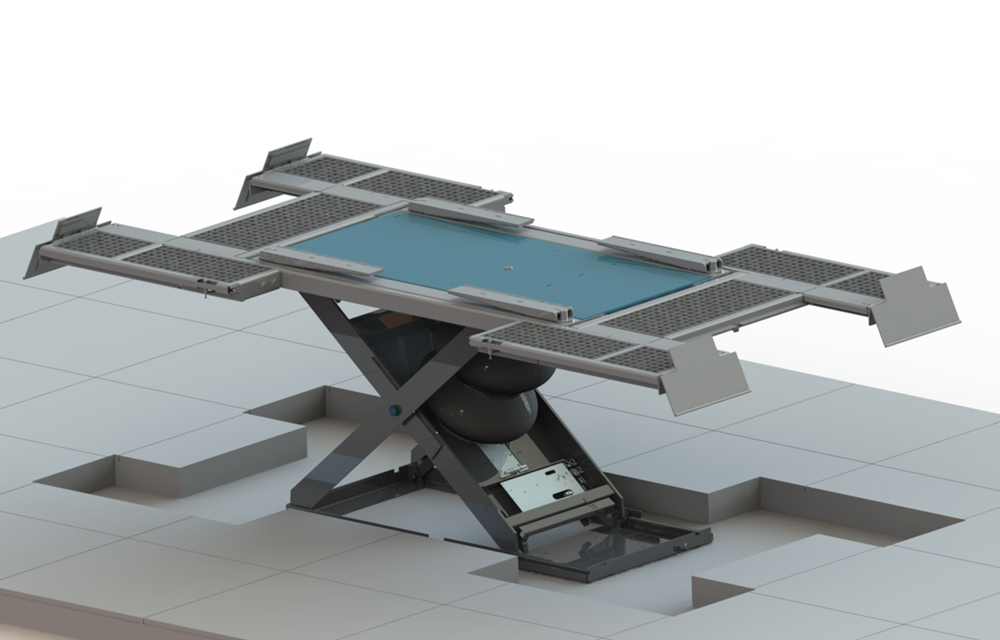

Technical Specification for Herkules AirgoMatic Pro 3513 DUO-14 in-ground installtion

Lifting capacity
3.5 to
Lifting hight - in-ground version (14)
1150 mm
Air supply
8 bar
Pit depth - in-ground version (14)
150 mm
Wheelstand max - in-ground version (14)
3700 mm
Weight - in-ground version (14)
1129 kg
