Herkules AirgoMatic Pro 3513
Versatile lift for the workshop or the paint booth
Many innovative details help simplify everyday work in the paint shop. Despite the compact design, which also
characterizes the previous Herkules lifts, longer and heavier vehicles can also be lifted on the new AirgoMatic
Pro 3513 thanks to intelligent roll-off protection and a lifting capacity of 3.5 t.
Highlights for Herkules AirgoMatic Pro 3513
Powerful
Lifting capacity of 3.5 to for lifting vans and heavy electric vehicles
Fit
Lifting hight 1300 mm for ergonomic work
Compact
Space-saving and elegant design
Customisable
Modular pneumatics with optional features
Safe
Standard CE stop according to the DIN standard
| Available Versions | Description |
|---|---|

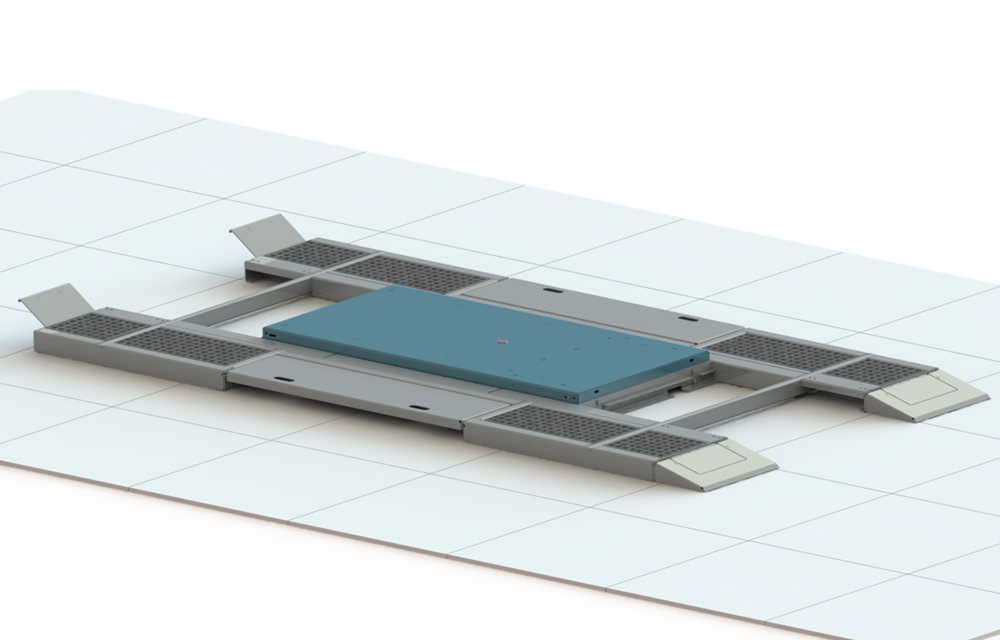

| Herkules AirgoMatic Pro 3513-11 | Lifting on wheel; on-ground installtion |

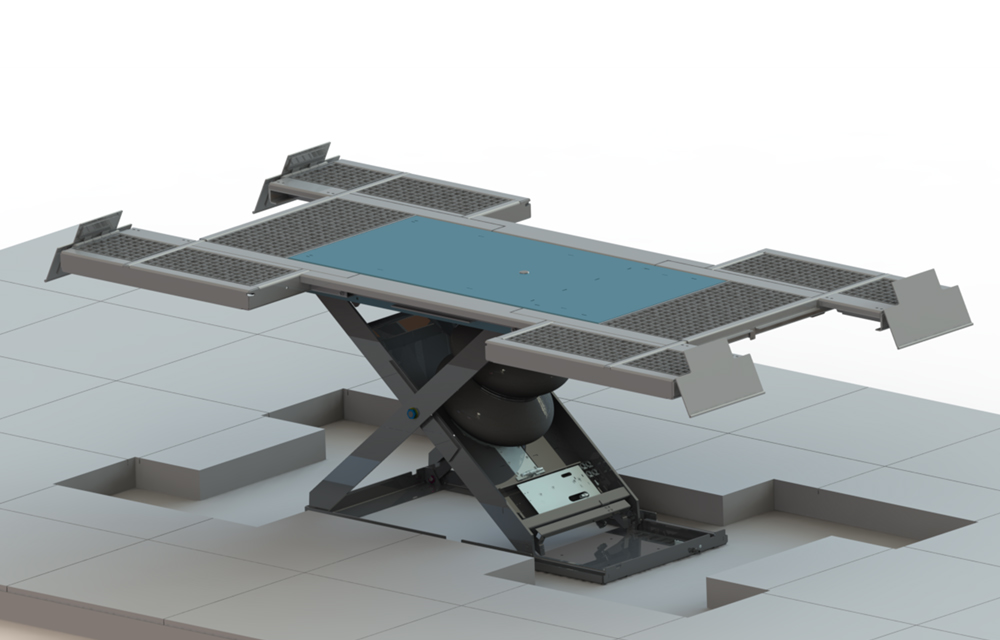

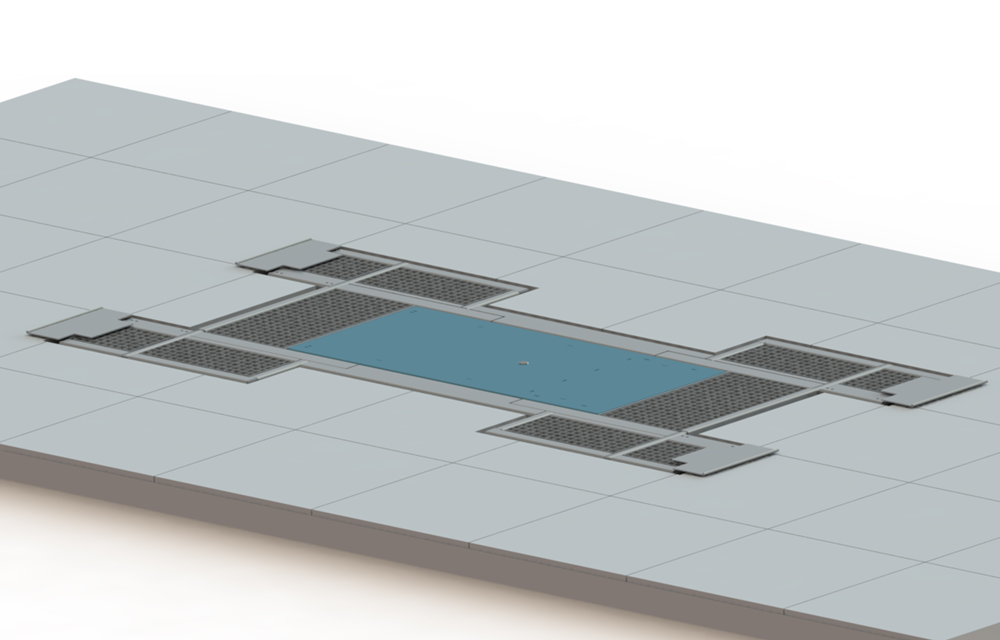

| Herkules AirgoMatic Pro 3513-14 | Lifting on wheels; in-ground installation (concrete or grids) |
Benefits for assembly and maintenance
Easy-to-assamble
Simple assembly thanks to useful assembly aids
Modular

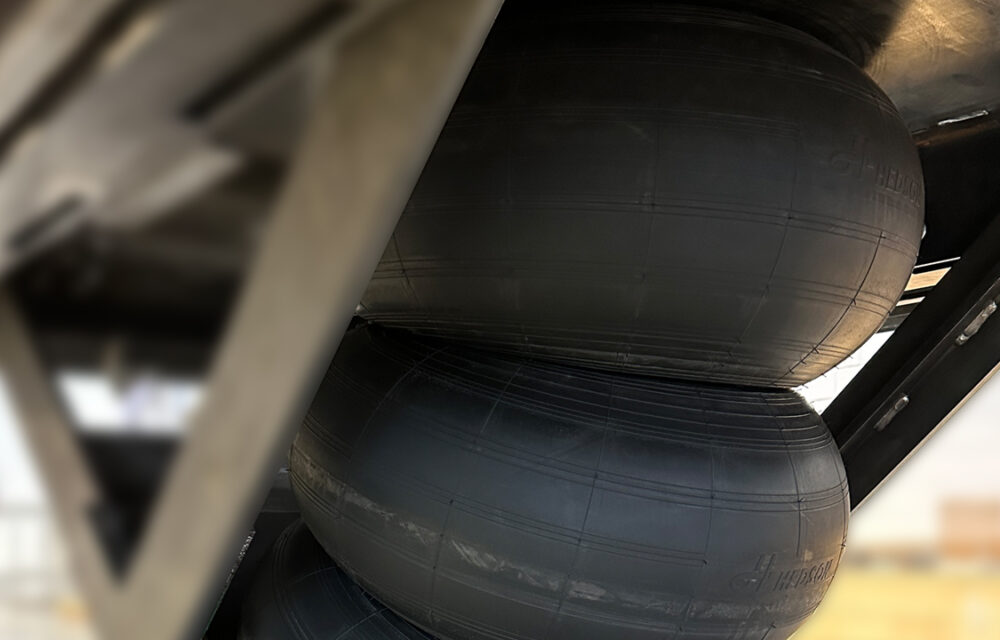

Air bellows easily replaceable
Easy-to-maintain
Easy maintenance of the sliding blocks
Technical Specification for Herkules AirgoMatic Pro 3513-11 on-ground installation
- Lifting capacity
- 3.5 to
- Lifting hight - on-ground version (11)
- 1300 mm
- Air supply
- 8 bar
- Drive over hight - on-ground version (11)
- 100 mm
- Wheelstand max - on-ground version (11)
- 3700 mm
- Weight - on-ground version (11)
- 997 kg
Technical Specification for Herkules AirgoMatic Pro 3513 DUO-14 in-ground installtion
- Lifting capacity
- 3.5 to
- Lifting hight - in-ground version (14)
- 1150 mm
- Air supply
- 8 bar
- Pit depth - in-ground version (14)
- 150 mm
- Wheelstand max - in-ground version (14)
- 3700 mm
- Weight - in-ground version (14)
- 1017 kg
