IRT Combi 4-1 IR-UVA
Unique mobile dryers due to the combination of shortwave infrared and UVA radiation

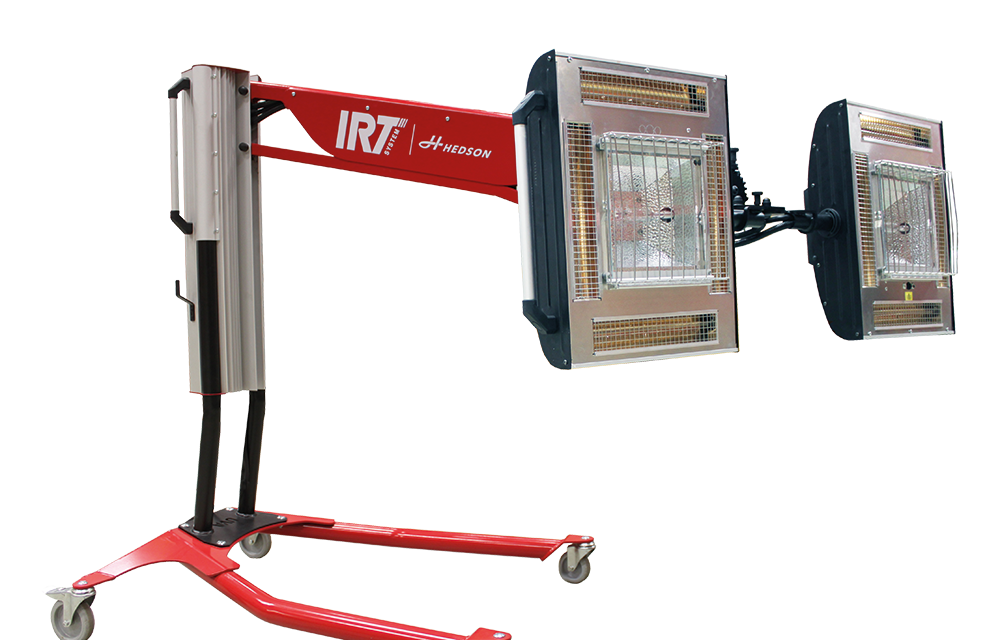

IRT Combi 4-2 IR-UVA
The combination of shortwave infrared and UVA radiation makes this mobile dryer uniqe
Product Highlights - IRT Combi 4-1 & 4-2 IR-UVA
Unique dryer
The combination of shortwave infrared and UVA radiation makes this mobile dryer unique. One cassette includes 4 IR lamps and 1 UVA lamp. These mobile UV dryers is featured with 15 (IR:12, UV: 3) pre-programmed programs for water and solvent based paint material, from putty to clear coat.
INCREASED PRODUCTIVITY
IR and UVA can be run individually and in sequence. We are the only company having gold-coated reflectors behind the short-wave lamps. For this reason, our dryers have unsurpassed drying capacity, reflecting up to 98 % of the short-wave radiation, making the dryers the most effective
QUALITY CONTROL
The IRT control unit includes program selection with built-in ramped temperature control for excellent curing result. IR lamps with +20.000 operating hours and UV lamps with time counter ensures high intensity curing every time
IR and UVA can be run individually and in sequence.
The infrared lamps are mounted in gold surface reflectors,
reflecting up to 98 % of the short-wave radiation.
The IRT control unit includes programme selection.
Time counter for the life length of the lamps.
IR and UVA can be run individually and in sequence.
The infrared lamps are mounted in gold surface reflectors,
reflecting up to 98 % of the short-wave radiation.
The IRT control unit includes programme selection.
Time counter for the life length of the lamps.
One cassette at a distance of 60 cm, on black sheet metal.
One cassette at a distance of 50 cm with an UV-A intensity of 25mW/cm2.
Two cassettes at a distance of 60 cm, on black sheet metal.
Two cassettes at a distance of 50 vm with an UV-A intensity of 25mW/cm2.
IRT Combi – IR-UVA
by Hedson
IRT Combi 4-1 & 4-2
The combination of shortwave infrared and UVA radiation makes this mobile dryer unique. One cassette includes 4 IR lamps and 1 UVA lamp. Featured with 15 (IR:12, UV: 3) pre-set programs for water and solvent based paint material, from putty to clear coat.
Technical Specification
IRT Combi 4-1 IR-UVA
- IRT Combi 4-1 IR-UVA
- Part.no. 800605
- Frequency
- 50 Hz
- Power
- IR: 6 kW UVA: 1,2 kW
- Fuse
- 10 A
- Current
- IR: 9 A UVA: 3 A
- Max. Cassette Height
- 2240 mm
- Voltage
- 380-420V 3 Ph/PE
IRT Combi 4-2 IR-UVA
- IRT Combi 4-2 IR-UVA
- Part.no. 800606
- Frequency
- 50 Hz
- Power
- IR: 12 kW UVA: 2,4 kW
- Fuse
- 16 A
- Current
- IR: 16 A UVA: 6 A
- Max. Cassette Height
- 2240 mm
- Voltage
- 380-420V 3 Ph/PE
Manual IRT UVA COMBI IR/UVA
Spare part list
As a Hedson Partner you can log-in to take part of our spare part lists. Log in…
If you are a Hedson Partner but don’t have access to the Partner Portal, please contact your Hedson contact person to get your account.
If you are an end-user, please contact your local reseller for more information.
Consumables
Consumables
UV Protective glasses
Part.no. 129070
Lamp-IR 1kW 235V 360 U CPL
Part.no. 102700
UV-lamp replacement kit 400V, 1,2 kW (Combi IR-UVA)
Part.no. 714842
IRT cassette air filter
Part.no. 713576
IRT cassette air filter, 10-pcs
Part.no. 713576-10
Lamp-IR 2kW 235V 360 U CPL
Part.no. 102699
