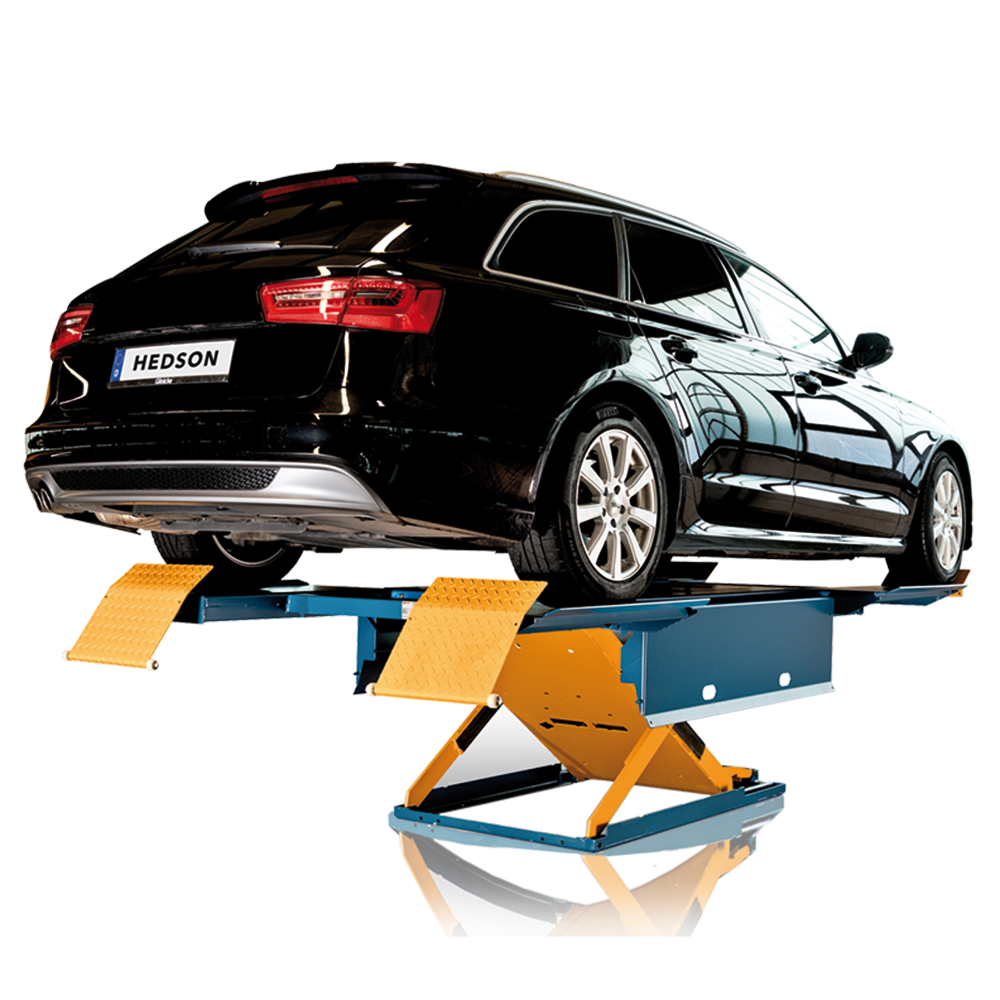

Herkules HLS 1200

The perfect lift for all types of body and paint shops

Product Highlights

High capacity

The lifting and lowering of the working height is done safely and smoothly with a Herkules HLS 1200 by Hedson and increases the access to damaged areas and the ergonomic work process with loading capacity up to 2,5 tons

Space savings

This lift is available in three types for different demands – on-ground, flush mounted and rail transportation. The lifts are easy to install and facilitate an individual planning of body shops by using the existing space optimally

Ergonomic

Due to the low construction height, it is easy to drive the vehicles onto the lift. The work efficiency is increased and the quality is improved by better visual control opportunities due to the easy lifting

Technical Specification

Herkules HLS 1200

Herkules HLS 1200 - 11
Part.no. HLS 1200-11
Herkules HLS 1200 - 14
Part.no. HLS 1200-14
Herkules HLS 1200 - 16
Part.no. HLS 1200-16
Herkules HLS 1200 - 17
Part.no. HLS 1200-17
Weight
750 kg
Lifting height
930 mm
Loading capacity
2,5 tons
Air supply
6 bar
Working height -11, -17
~ 1100 mm
Working height -14, -16
~ 1000 mm
Object height only -11, -17
110 mm
Pit depth -14, -16
115 mm
Installation -11
On-ground
Installation -14
Flush mounted
Installation -16
Flush mounted with CE-stop
Installation -17
Transmobile

Accessories

Pit frame (grids), zinc coated
Part.no. 300-304
Pit frame (concrete), zinc coated
Part.no. 300-307
Additional grids for the front end of HLS 1200, 2 pcs., incl. support angles + fasteners
Part.no. 300-344
Drive over ramps, 2 pcs.
Part.no. 300-430

Manual

Herkules HLS 1200 - 13
PDF
1.25 MB
Download
Herkules HLS 1200 - 61-64-66
PDF
1.67 MB
Download
Herkules HLS 1200 - 11-14-16
PDF
2.34 MB
Download
Herkules HLS 1200 - 11-14-16
PDF
4.52 MB
Download
Herkules HLS 1200 - 11-14-16
PDF
1.02 MB
Download
Herkules HLS 1200 - KO
PDF
1.18 MB
Download
Herkules HLS 1200 - TA
PDF
421.52 KB
Download

Spare part list

As a Hedson Partner you can log-in to take part of our spare part lists.   Log in…

If you are a Hedson Partner but don’t have access to the Partner Portal, please contact your Hedson contact person to get your account.

If you are an end-user, please contact your local reseller for more information.
