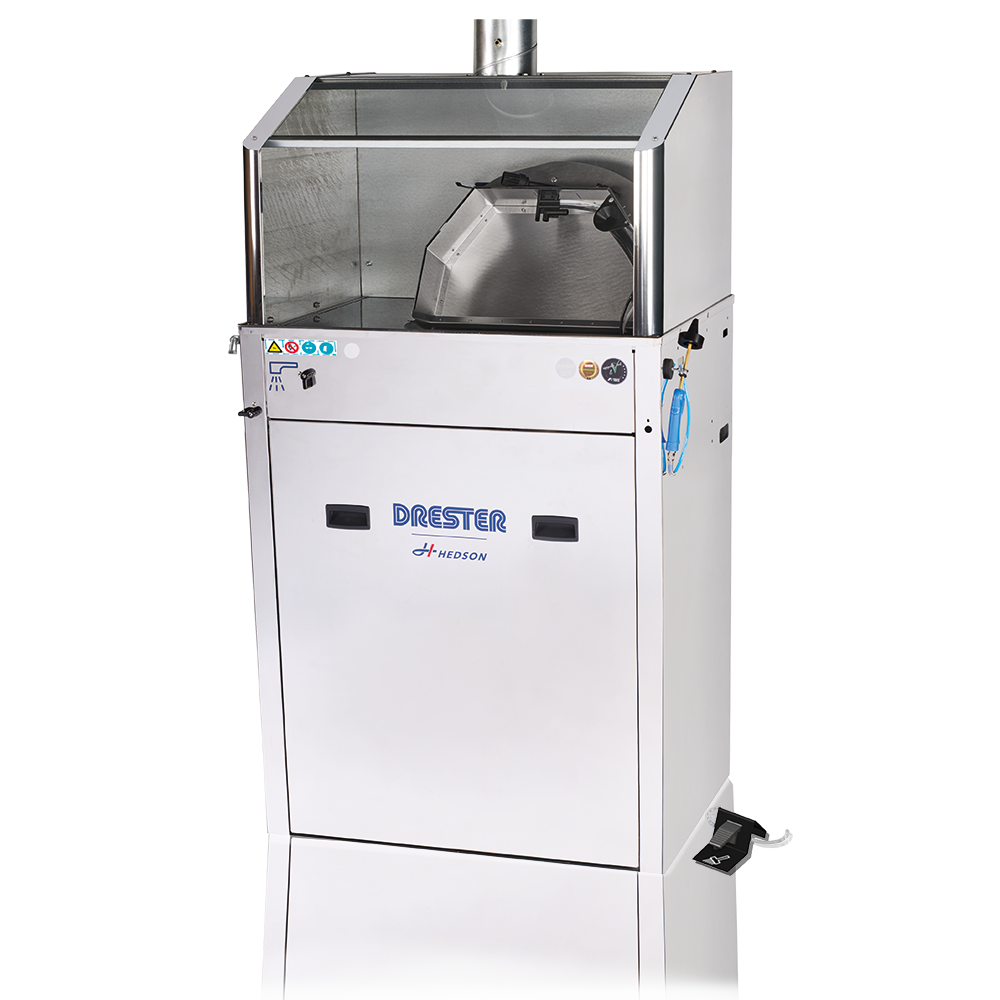

Drester X-series Manual

Robust gun cleaner with one work station equipped with a manual wash compartment for cleaning of all types of paints

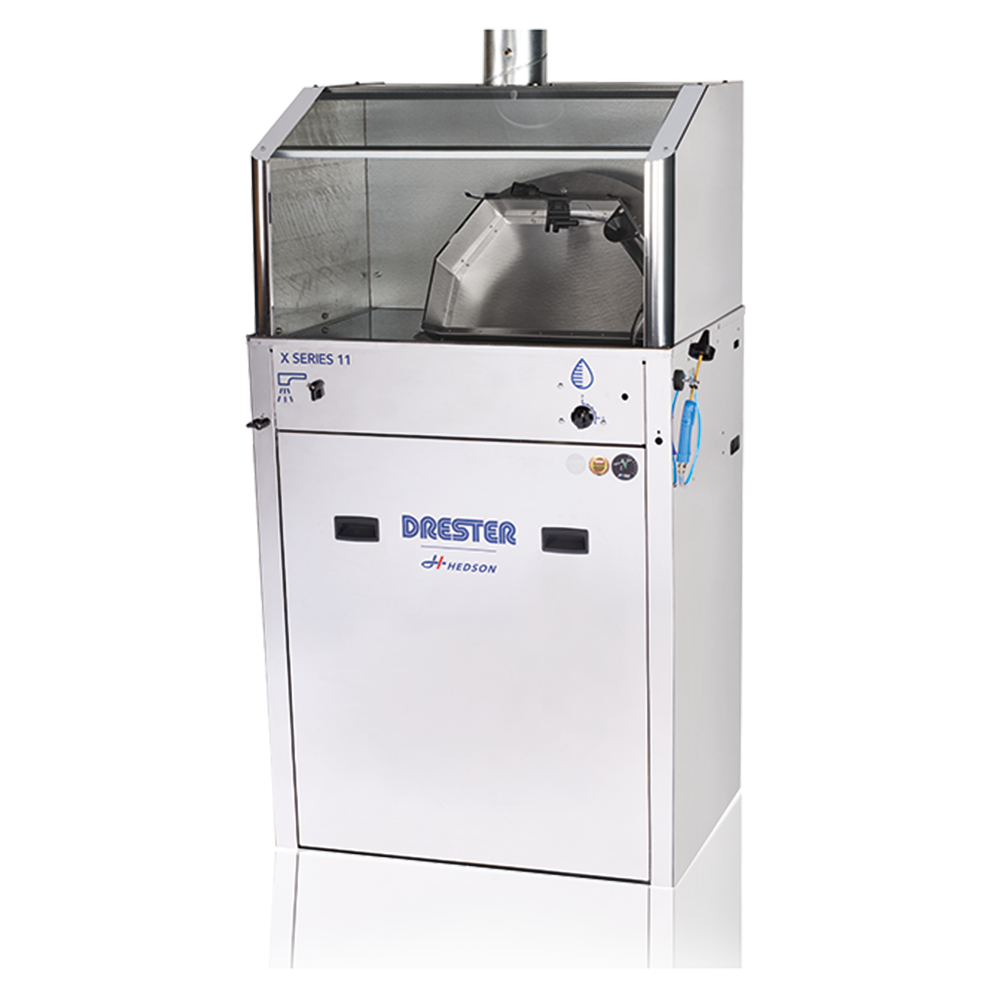

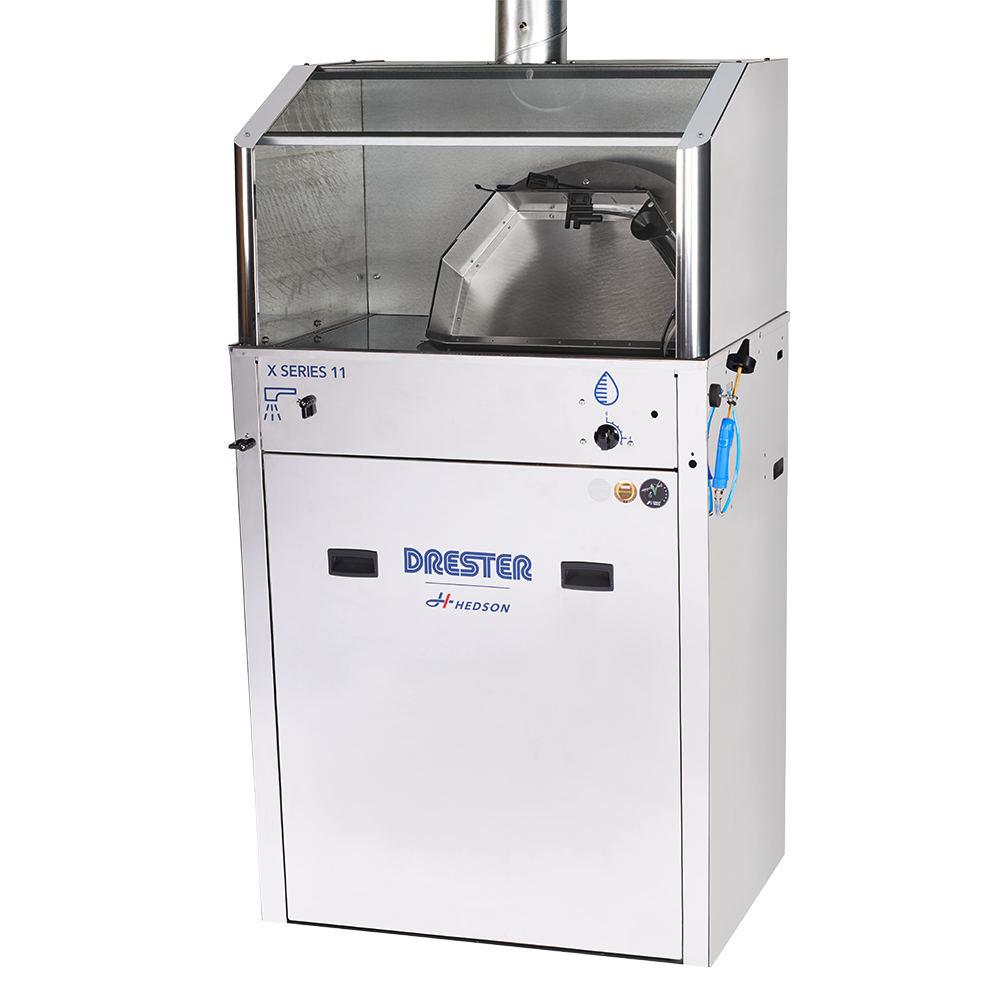

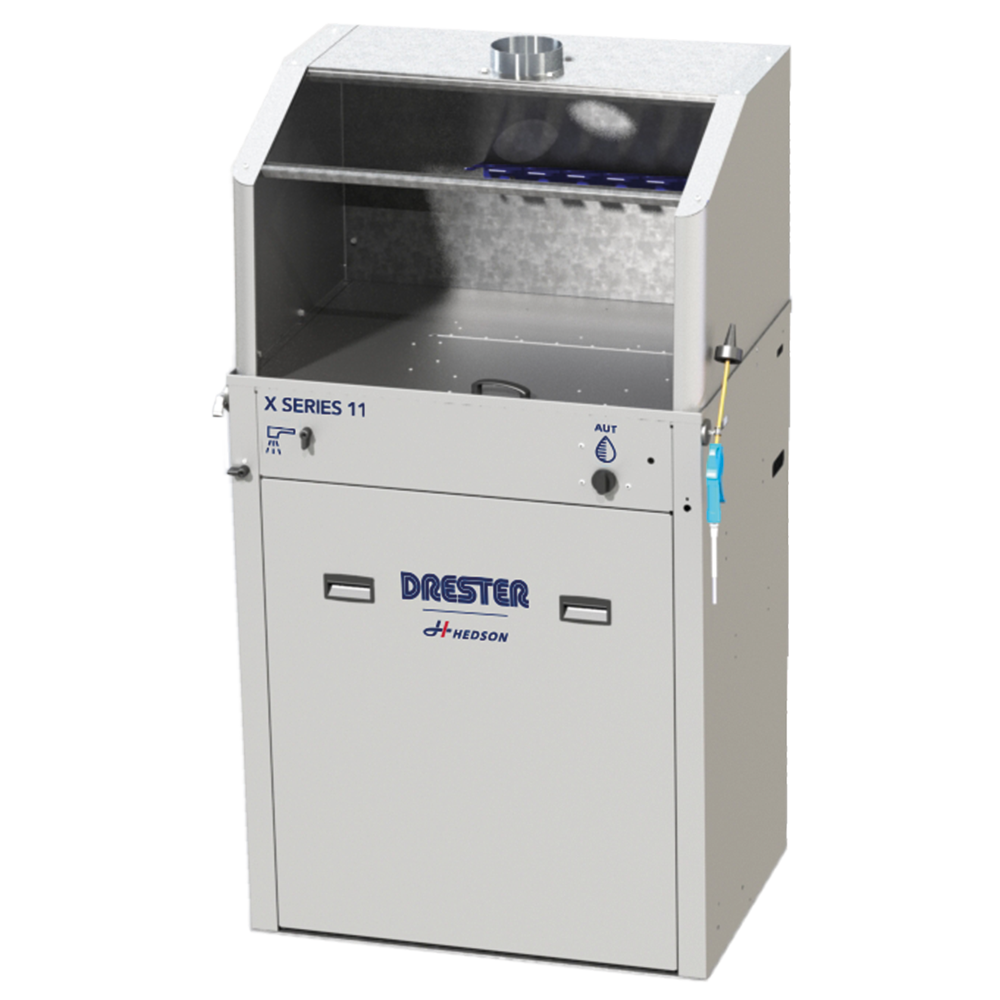

Drester X-series Automatic

Stainless working platform for easier cleaning and welded corners to reduce any spillage

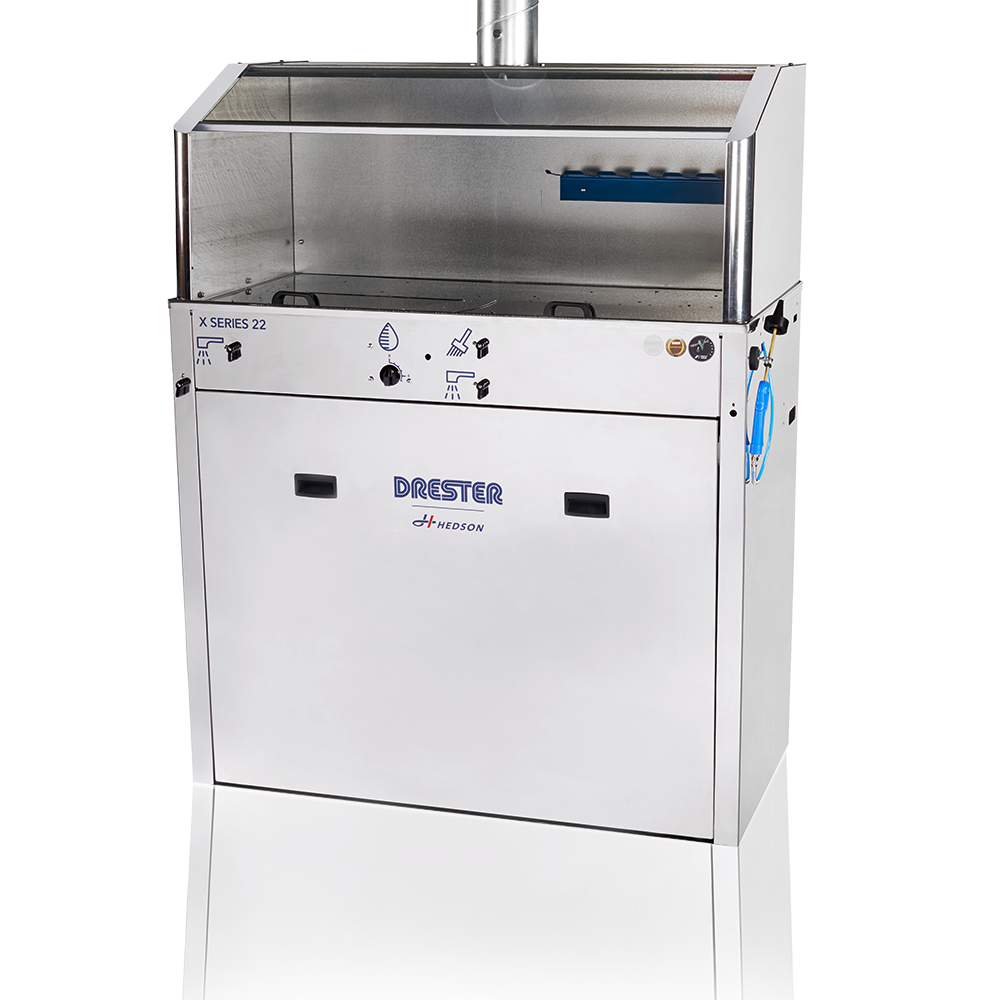

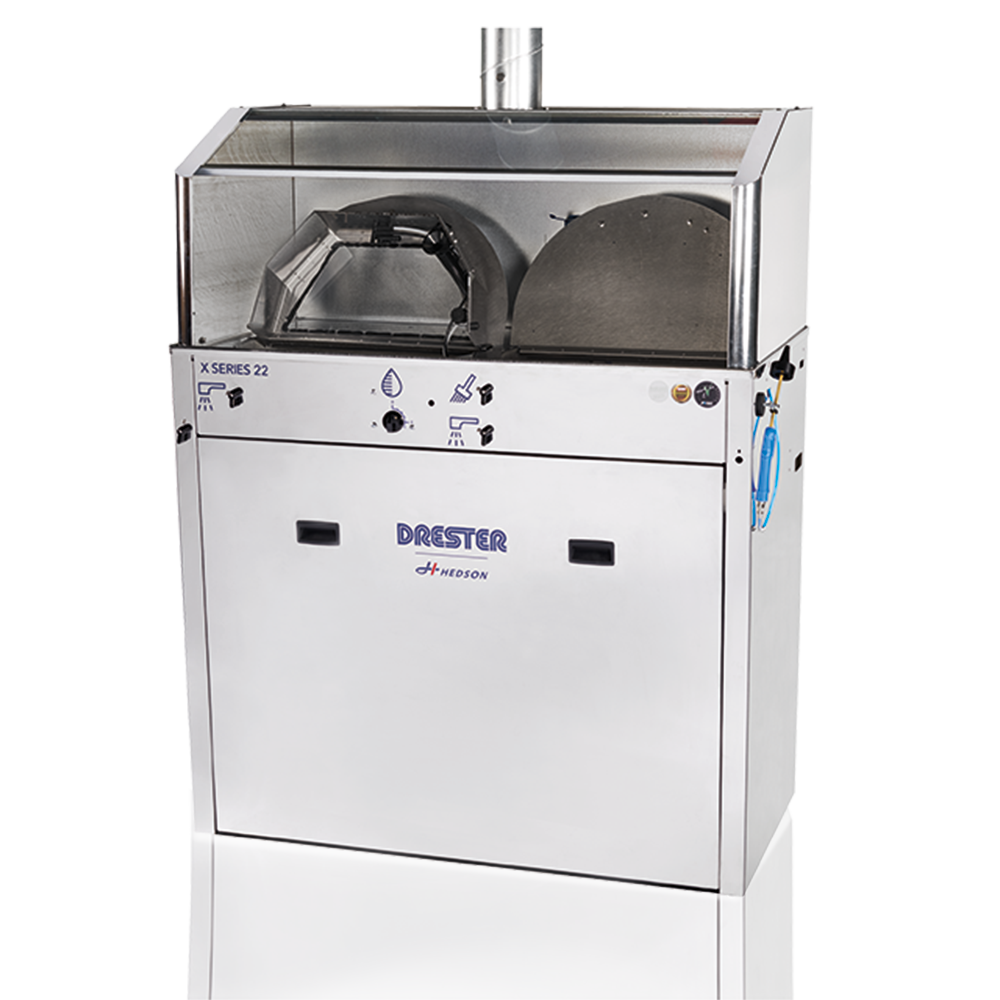

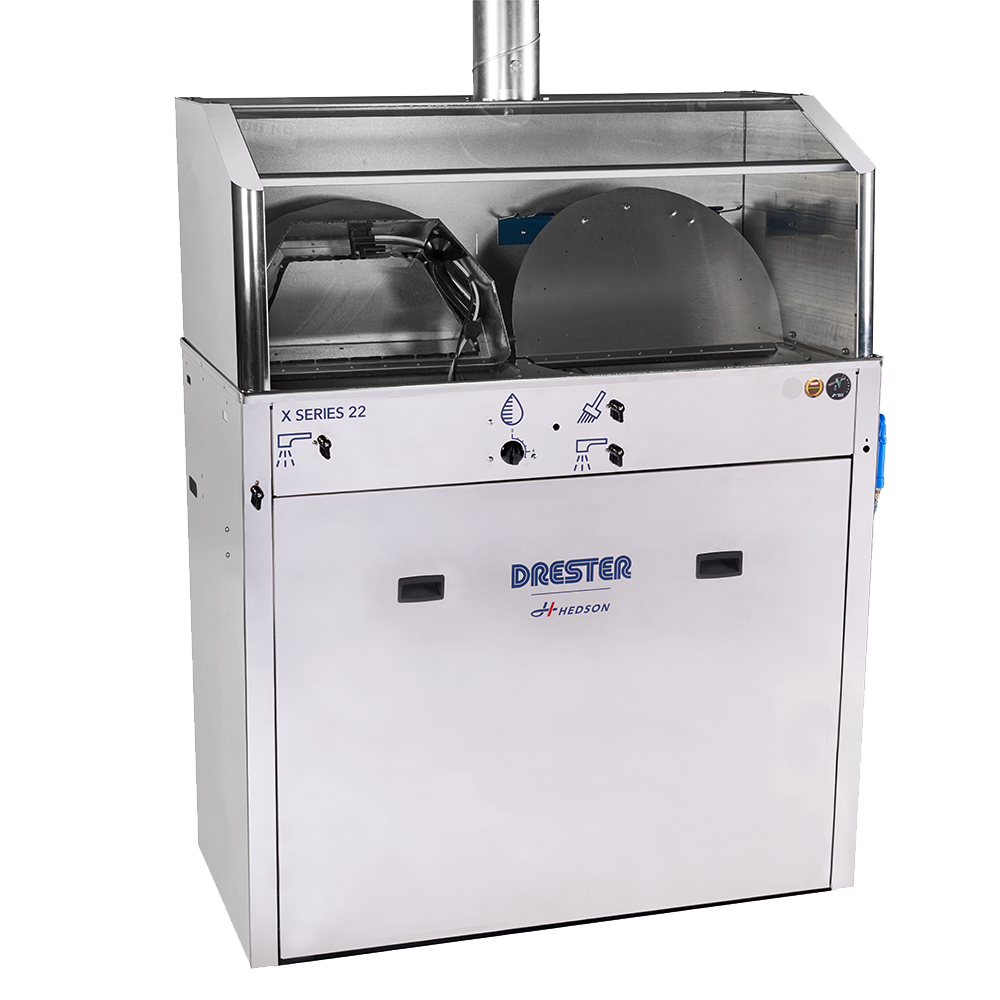

Drester X-series Double

Spray gun cleaner with two work stations. One automatic for cleaning of all types of paints and one manual for cleaning of primer and filler tools, scrapers etc.

Product Highlights

Robust & easy cleaning

Robust gun cleaner developed for workshops and industry with extra heavy workload. With its welded stainless working platform it is easy to keep clean

Efficient workflow

The automatic units have adjustable wash cycle, 1-4 min, washes all types of guns and have no limit to gravity fed guns. Every unit has a spray gun storage, with possibility to store up to 7 spray guns

Ergonomic

With less deep space, every unit is easily maneuvered and more ergonomic for the operator when cleaning

Technical Specification

Drester X-series Manual
Part.no. DIX11M
Drester X-series Automatic
Part.no. DIX11
Shipment dimensions (DIX11)
1 pcs on pallet, 760*900 mm, 83 kg
Drester X-series Double
Part.no. DIX22
Shipment dimensions (DIX22)
1 pcs on pallet, 760*900 mm, 106 kg

Drester X-series Manual & Automatic

Weight
75 kg (165 lb)
Height
1510 mm (59,5”)
Width
835 mm (33”)
Max depth
650 mm (25,5”)
Depth at the floor
610 mm (24”)
Compressed air needed
7–12 bar (110–180 psi) 90 l/min (3 cfm) 1 pump 370 l/min (14 cfm) incl. AIRVENT 11660 in operation
Ventilation capacity
200-500 m3/h (118-294 cfm) -> 0,2-0,5 m/s (0,7-1,6 fps)
Pump capacity
10 l/min
Maximum drum size
60 litres
Solvent pressure
2 bar (30 psi)
Extractor diameter
125 mm (5”)

Drester X-series Double

Weight
95 kg (140 lb)
Height
1510 mm (59,5”)
Width
1185 mm (46,7”)
Max depth
650 mm (25,5”)
Depth at the floor
610 mm (24”)
Compressed air needed
7–12 bar (110–180 psi) 180 l/min (6 cfm) 2 pumps 460 l/min (17 cfm) incl. AIRVENT 11660 in operation
Ventilation capacity
240-600 m3/h (141-353 cfm) -> 0,2-0,5 m/s (0,7-1,6 fps)
Pump capacity
10 l/min
Maximum drum size
60 liters
Solvent pressure
2 bar (30 psi)
Extractor diameter
125 mm (5”)

Options

Minivent (3ph. 380V, 250W) (Double)
Part.no. 2050
Minivent (3ph. 415V, 250W) (Double)
Part.no. 2055
Airvent (Ø125 mm)
Part.no. 11660
Magnetic gun holder
Part.no. 15650
2-gun spray cradle
Part.no. 9290
Collecting tray
Part.no. 10960
Moisture trap
Part.no. 4020
Extension tube
Part.no. 10455
Kit for suction-fed gun
Part.no. 15640
Adapter for side-fed gun
Part.no. 17270
Adaption Kit DIX22‐RDX needed for Dynamic Triple system with DIX22, Drester X-series Double
Part.no. 230891

Manual

Drester X-series - 11
PDF
347.47 KB
Download
Drester X-series - 11, Illustration
PDF
932.85 KB
Download
Drester X-series - 22
PDF
375.19 KB
Download
Drester X-series - 22
PDF
375.46 KB
Download
Drester X-series - 22, Illustration
PDF
1.04 MB
Download
Drester X-series - 11M, Manual
PDF
471.63 KB
Download
Drester X-series - 11M, Illustration
PDF
1.4 MB
Download

Spare part list

As a Hedson Partner you can log-in to take part of our spare part lists.   Log in…

If you are a Hedson Partner but don’t have access to the Partner Portal, please contact your Hedson contact person to get your account.

If you are an end-user, please contact your local reseller for more information.
