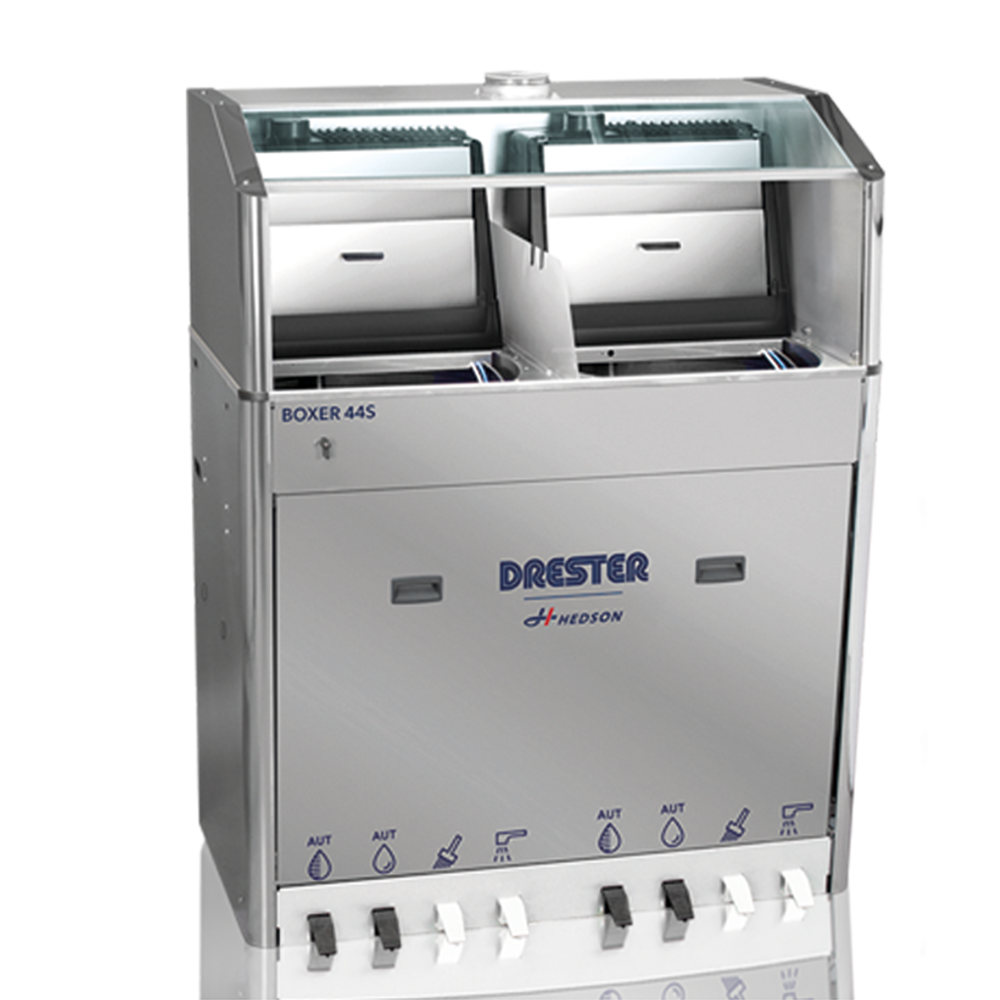

Drester Boxer Quattro Solvent

Cleaning process with re-circulating solvent and clean solvent, which saves time and solvent

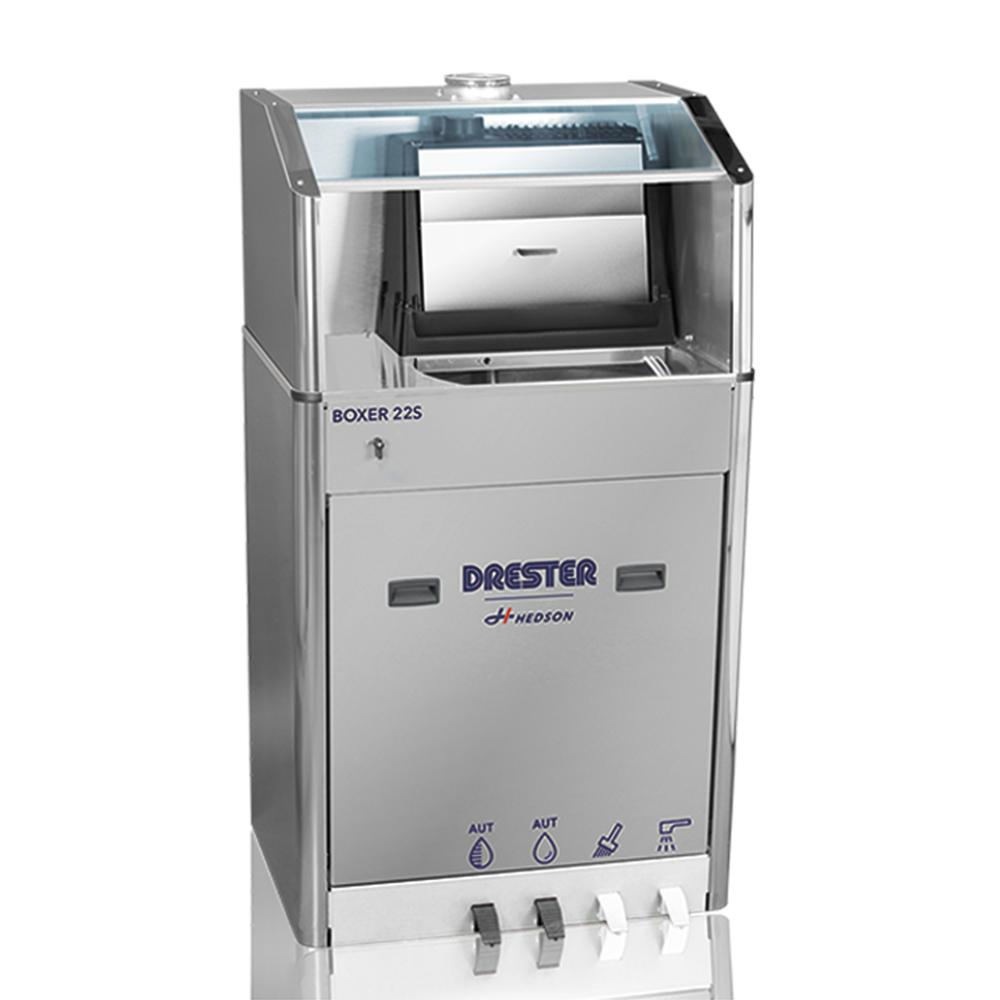

Drester Boxer Double Solvent

Equipped with hoods for protections from splashing, suitable for solvent-based cleaning

Product Highlights - Boxer Solvent

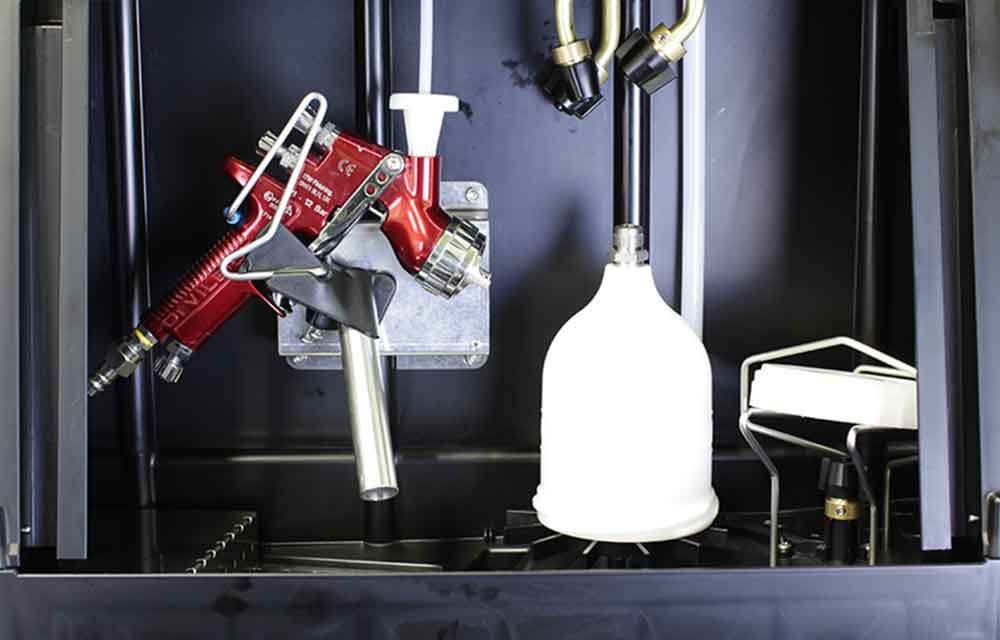

Patented magnetic gun holder

All Drester Boxer by Hedson gun cleaners also feature a patented magnetic gun holder which simplifies the cleaning and use of the gun cleaner. The magnetic gun holder pulls the trigger to open the paint channel and fixates a gun in seconds, in one simple step. It fixates the gun in a position where the gun’s air channels are protected, facing downwards, so there is no risk of solvent entering the air channels.

Ergonomic

A small footprint - easy to operate and user friendly and ergonomic. The operator can easily see what footprint to use

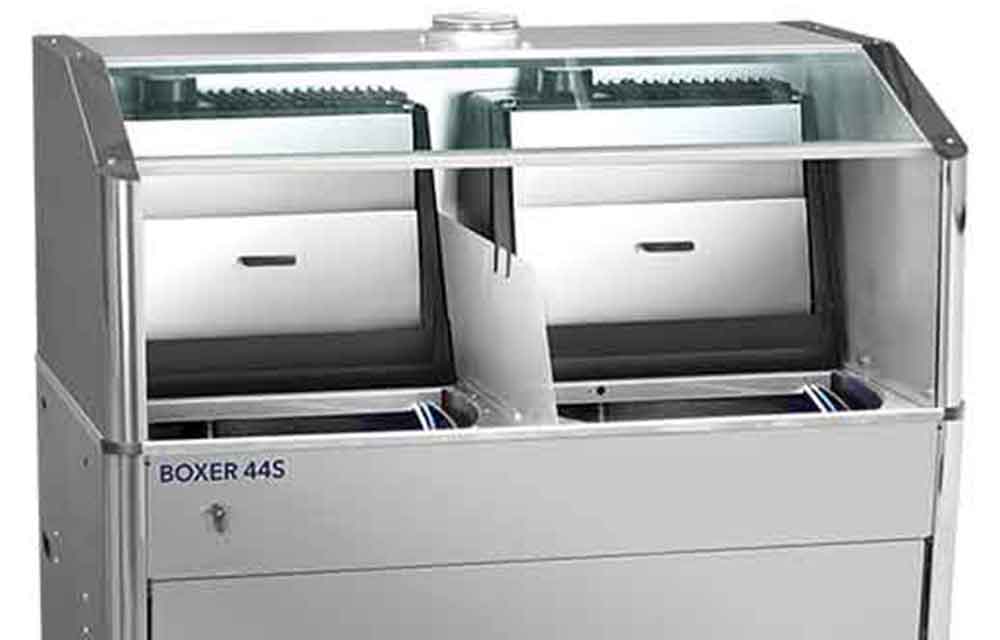

Safety

The gun cleaners is equipped with a hood for protections from splashing and enable different types of ventilation

Technical Specification

Drester Boxer Double Solvent
Part.no. DB22S (standard unit)
Shipment dimensions (DB22S)
1 pcs on pallet, 760*900 mm, 88 kg
Drester Boxer Quattro Solvent
Part.no. DB44S (standard unit)
Shipment dimensions (DB44S)
1 pcs on pallet, 1250*760 mm, 100 kg

Drester Boxer Double Solvent

Weight
75 kg (165 lb)
Compressed air needed
7–12 bar (110–180 psi) 150 l/min (6 cfm)
Ventilation capacity
200-500 m³/h (118-294 cfm) -> 0,2-0,5 m/s (0,7-1,6 fps)
Height
1510 mm (59,5”)
Width
835 mm (33,0”)
Max depth
650 mm (25,5”)
Depth at the floor
610 mm (24,0”)
Extractor diameter
125 mm (5”)

Drester Boxer Quattro Solvent

Weight
105 kg (230 lb)
Compressed air needed
7–12 bar (110–180 psi) 150 l/min (6 cfm) (450 l/min (16 cfm) with DRESTER AIRVENT 11660)
Ventilation capacity
240-600 m³/h (141-353 cfm) -> 0,2-0,5 m/s ( 0,7-1,6 fps)
Height
1510 mm (59,5”)
Width
1185 mm (46,7”)
Max depth
650 mm (25,5”)
Depth at the floor
610 mm (24,0”)
Extractor diameter
125 mm (5”)

Manuals

Drester Boxer Double Solvent (DB22S)
PDF
623.5 KB
Download
Drester Boxer Quattro Solvent (DB42S)
PDF
657.43 KB
Download
Drester Boxer Quattro Solvent (DB44S)
PDF
665.25 KB
Download

Spare part list

As a Hedson Partner you can log-in to take part of our spare part lists.   Log in…

If you are a Hedson Partner but don’t have access to the Partner Portal, please contact your Hedson contact person to get your account.

If you are an end-user, please contact your local reseller for more information.
