IRT PrepCure Prep 4
everyday reliability
- Flash-off/Full bake with time control
- Wide reach and great coverage; 1.0 x 1.1 m
- Set the target time – cure!

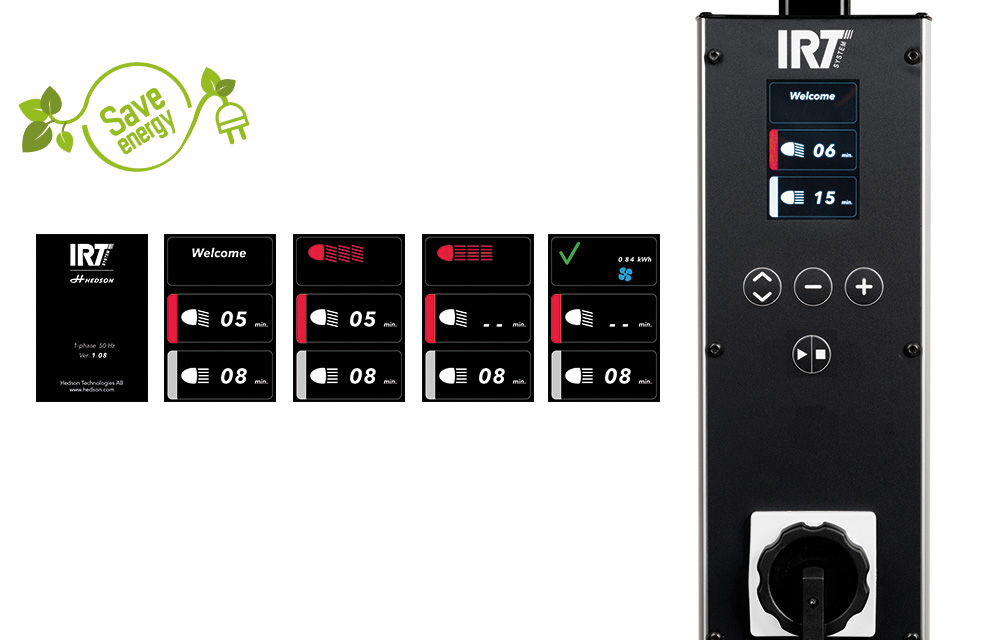

Quick and intuitive display
- Quick and intuitive display
- Energy-use displayed after each cycle
Cure a roof, max height 2.2 m!
- Fingertip-light height adjustment
- Self-locking
- Integrated cables

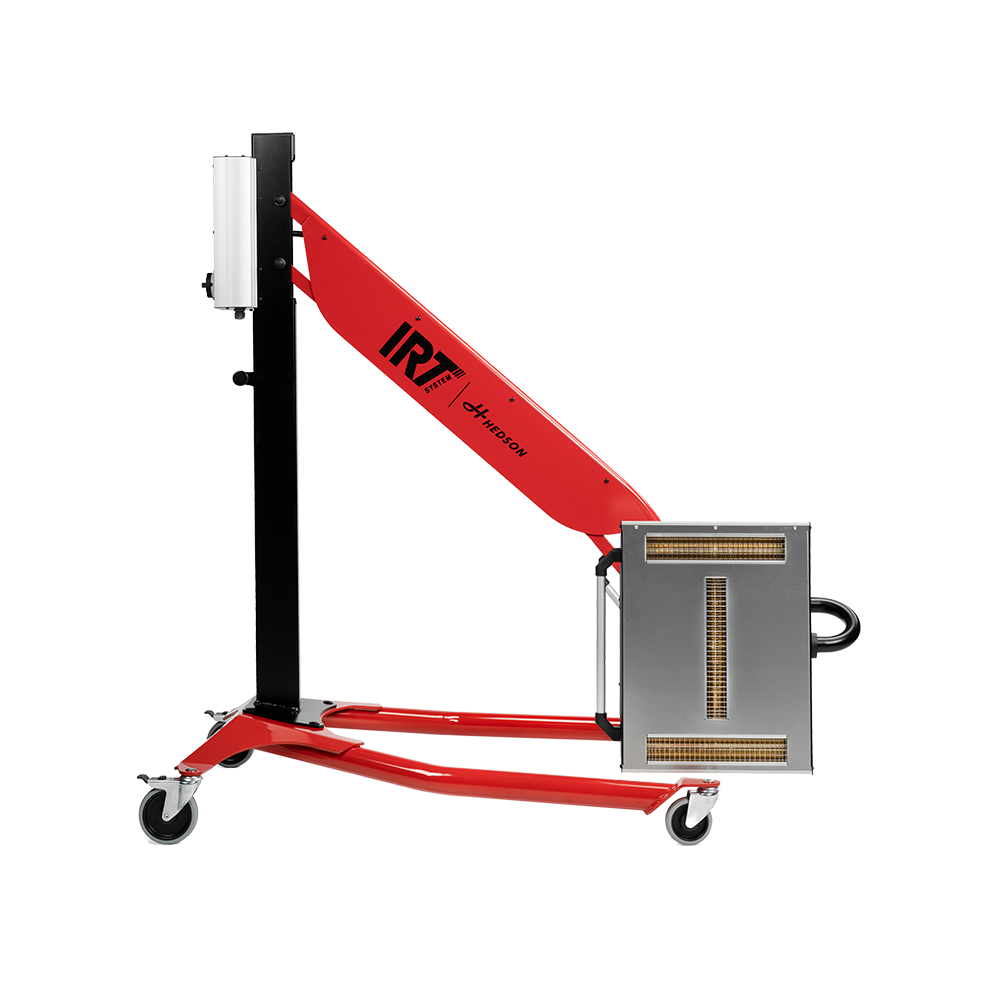

IRT PrepCure Prep 4
Energy-use displayed after each cycle.
Flash-off/Full bake with time control.
Wide reach, both low and high (max 2.2 m).
Great coverage: 1.0 x 1.1 m
3 lamps, 1000 W/lamp.
Low slim base and finger-light arm design.
Parks with small foot-print, cassettes between the legs.
Powerful ventilation increases lamp life.
Efficient IRT FreeForm 24K gold reflector.
prep 4 (1 cassette)
| Part no. | Current | Output power | Fuse | Voltage | Frequency |
|---|---|---|---|---|---|
| 801405 | 13 A | 3 kW | 16 A | 230V, 1 PH, EU | 50-60 Hz |
| 801406 | 13 A | 3 kW | 13 A | 230V, 1 PH, UK (UK plug) | 50-60 Hz |
| 801407 | 13 A | 3 kW | 16 A | 230V, 1 PH, AUS & ARG type 1 | 50-60 Hz |
| 801408 | 13 A | 3 kW | 15/20 A | 200V, 1PH JP | 50-60 Hz |
| 801409 | 13 A | 3 kW | 20 A | 230V, 1PH, NA ETL | 50-60 Hz |
Related Equipment
Even heat = faster, better curing.
The IRT FreeForm reflector shape is carefully designed so that no spots get too hot or too cold. (Because the coldest part decides how long curing takes, and the hottest part limits the max temperature.)
Less wasted energy with 24K gold.
We coat the IRT FreeForm reflector with 24K gold. This reflects the infrared energy onto the surface (up to 97%), not the surroundings.
Longlife lamps – low maintenance.
To keep everything running smoothly, a high-quality ventilation system prevents overheating. This help the lamps last way longer (up to 20.000 hrs).
