IRT PrepCure Prep 3
unbeatable value
- Display integrated in cassette for accessible, intuitive operation
- Set the target time – Cure!

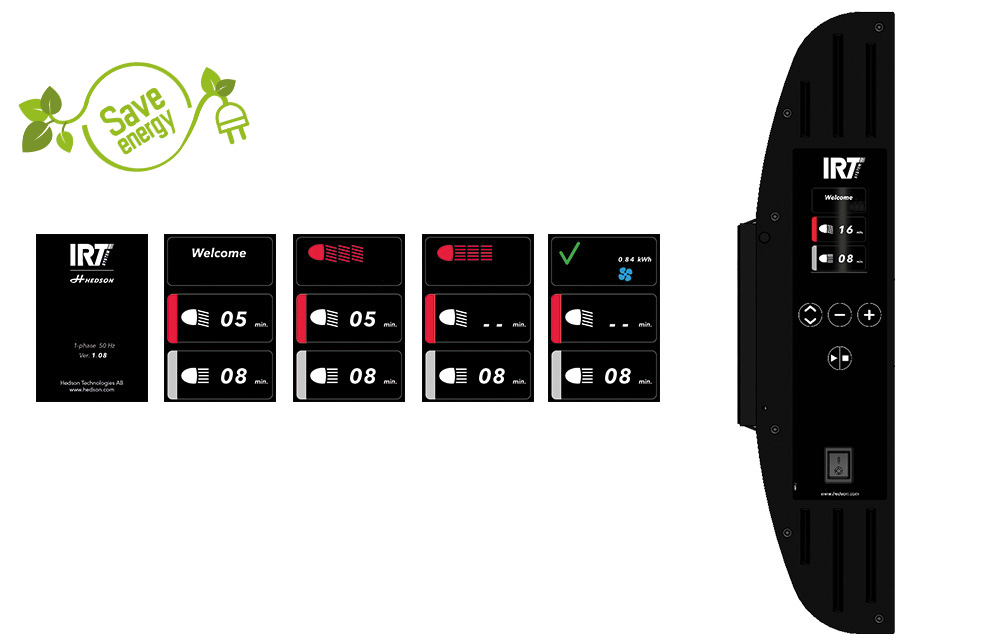

Quick and intuitive display
- Flash-off/Full bake with time control
- Great coverage, curing area: 1.0 x 1.1 m*

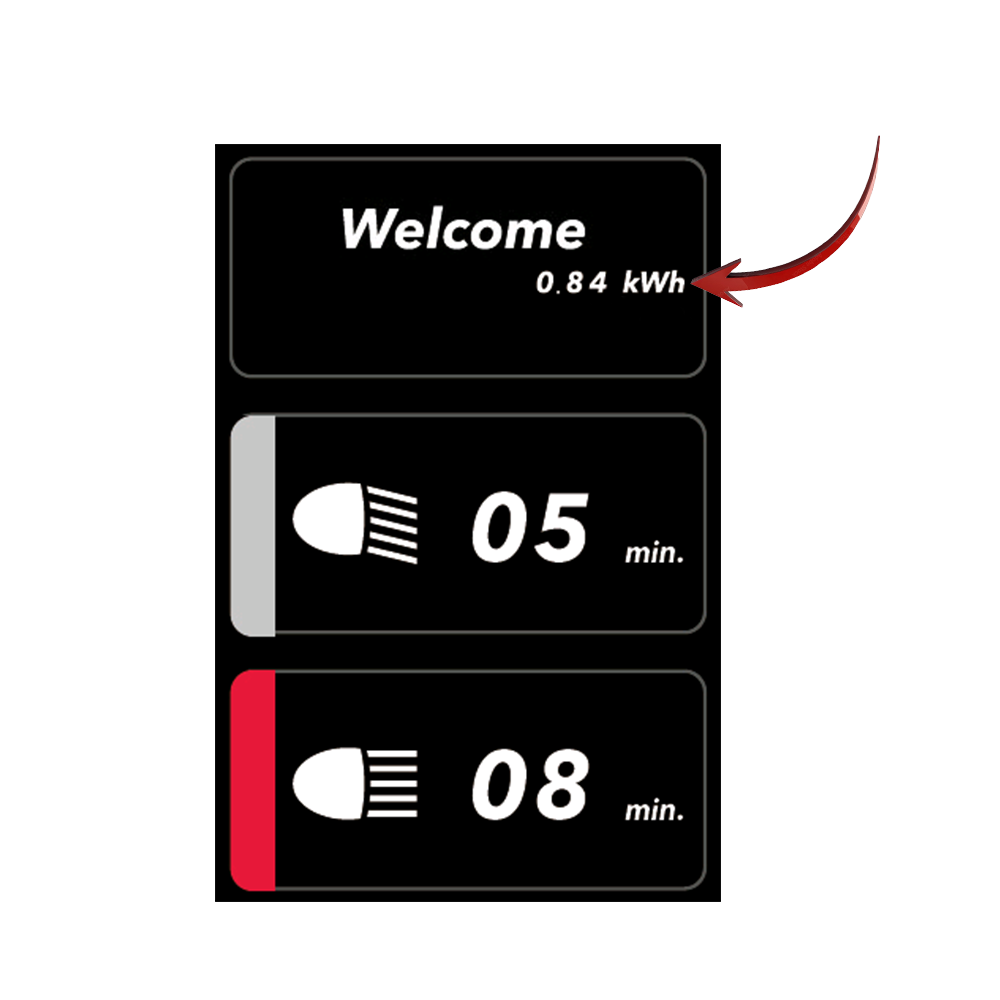

- Energy-use displayed after each cycle
*On black surface at 60 cm distance

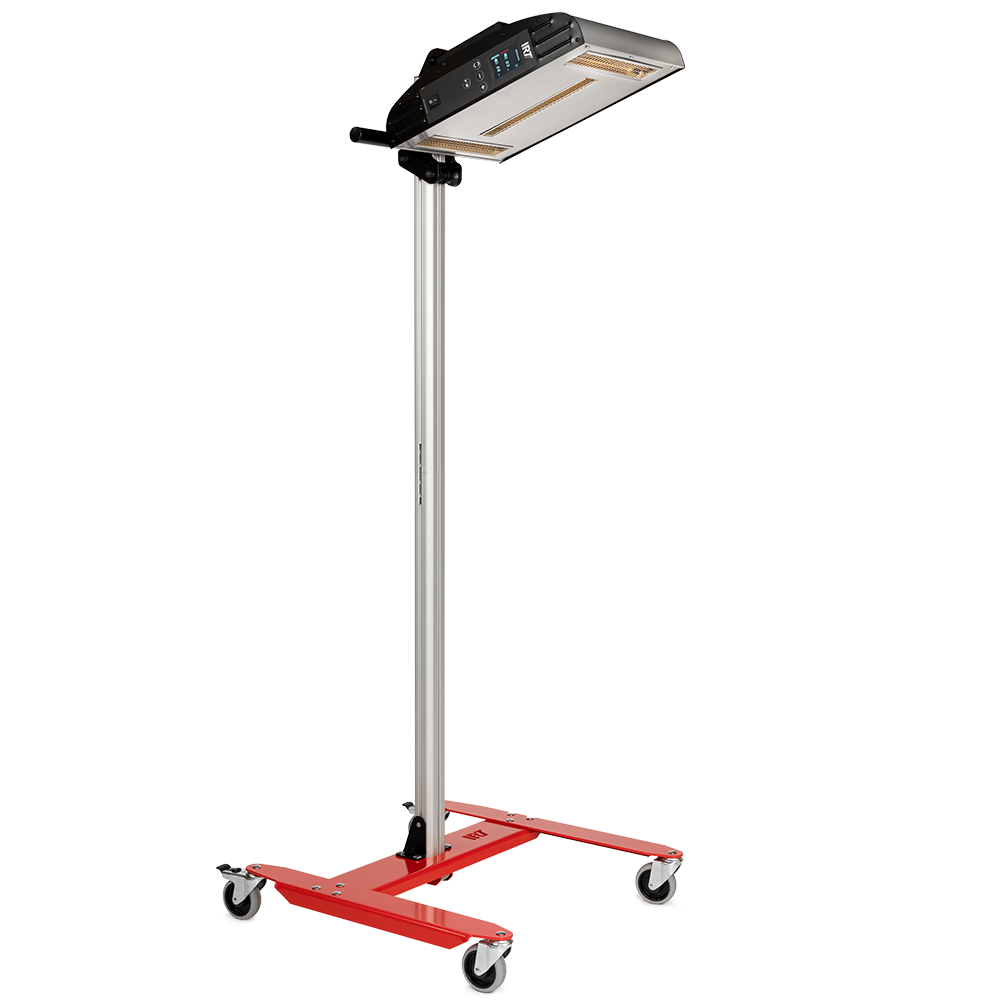

Top reach 1.85 m!
- Smooth adjust up/down with a simple hand motion
- Stable and easy to position

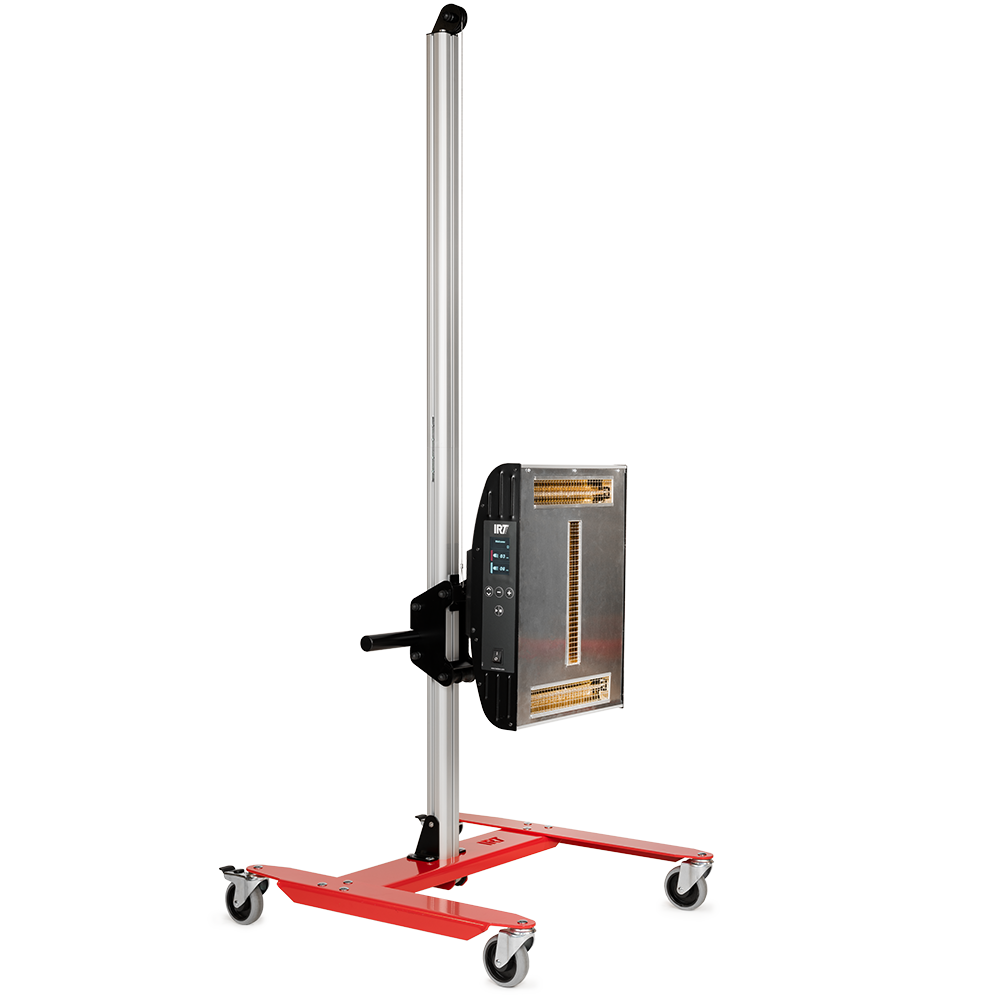

IRT PrepCure Prep 3
Quick and intuitive control – integrated for easy access
Efficient functionality: Flash-off/Full bake with time control
Energy-use displayed after each cycle
Smooth adjust up/down with a simple hand motion
Self-locking
Wide reach, both low and high (1.85 m)
Great coverage**: Curing area: 1.0 x 1.1 m
3 lamps 1000 kW/lamp
Stable and tip-resistant mobile stand
Powerful ventilation increases lamp life
Efficient IRT FreeForm 24K gold reflector
prep 3
| Part no. | Current | Output power | Fuse | Voltage | Frequency |
|---|---|---|---|---|---|
| 801030 | 13 A | 3 kW | 16 A | 230V, 1 PH, EU | 50-60 Hz |
| 801031 | 13 A | 3 kW | 13 A | 230V, 1 PH, UK (UK plug) | 50-60 Hz |
| 801032 | 13 A | 3 kW | 16 A | 230V, 1 PH, AUS & ARG type 1 | 50-60 Hz |
| 801033 | 13 A | 3 kW | 20 A | 200V, 1PH JP | 50-60 Hz |
| 801034 | 13 A | 3 kW | 15/20 A | 230V, 1PH, NA ETL | 50-60 Hz |
Related Equipment
Even heat = faster, better curing.
The IRT FreeForm reflector shape is carefully designed so that no spots get too hot or too cold. (Because the coldest part decides how long curing takes, and the hottest part limits the max temperature.)
Less wasted energy with 24K gold.
We coat the IRT FreeForm reflector with 24K gold. This reflects the infrared energy onto the surface (up to 97%), not the surroundings.
Longlife lamps – low maintenance.
To keep everything running smoothly, a high-quality ventilation system prevents overheating. This help the lamps last way longer (up to 20.000 hrs).
