IRT by Hedson

Adapted for the prep station and the spray booth

IRT by Hedson

Equipped with user friendly advanced technology

Rail system dryers by Hedson

integrated power supply

As the electric power supply is integrated in the rails, there are no loose cables dragging along the floor disrupting work and raking up dust

Easy to adjust

The cassettes are easy to adjust into the correct position. The heater lamps are rigidly set in precision gold coated reflector bodies, ensuring the most even and efficient heat distribution. All lamps are cooled by ventilator fans

AUTOMATIC CURING PROCESS

Drying time and power is controlled by a microprocessor which, pre-programmed for different types of paint, automatically handles the entire curing process. Hedson offers 5 different dryers suitable for the IRT Rail Systems

IRT automotive curing solutions

Optimize the body & paint shop process with IRT rail system heaters with cassettes installed in easy-glide trolleys on self-balanced cassette arms. As the electric power supply is integrated in the rails, there are no loose cables dragging along the floor disrupting work and raking up dust. The cassettes are easy to adjust into the correct position. IRT gold-coated FreeForm reflectors ensure efficient and even heat distribution with reduced energy consumption, short curing times and large curing areas. Low maintenance due to powerful ventilation and efficient particle filter, > 20.000 operating hours per lamp

  • Increase through-put and reduce working hours
  • No cables on the floor – free areas
  • Excellent fit in tight areas between cars
  • Less risk for unintentional damage to the car
  • Low maintenance, > 20.000 operating hours per lamp
IRT SlimArch by Hedson IR

IRT FlexiCure

Flexible for the prep zone, 4 curing zones with 3 IR lamps per zone

Read more

IRT Rail System IR Dryers 4-10 & 4-20 PcAuto

Equipped with user friendly advanced technology such automatic temperature and distance measuring

Read more

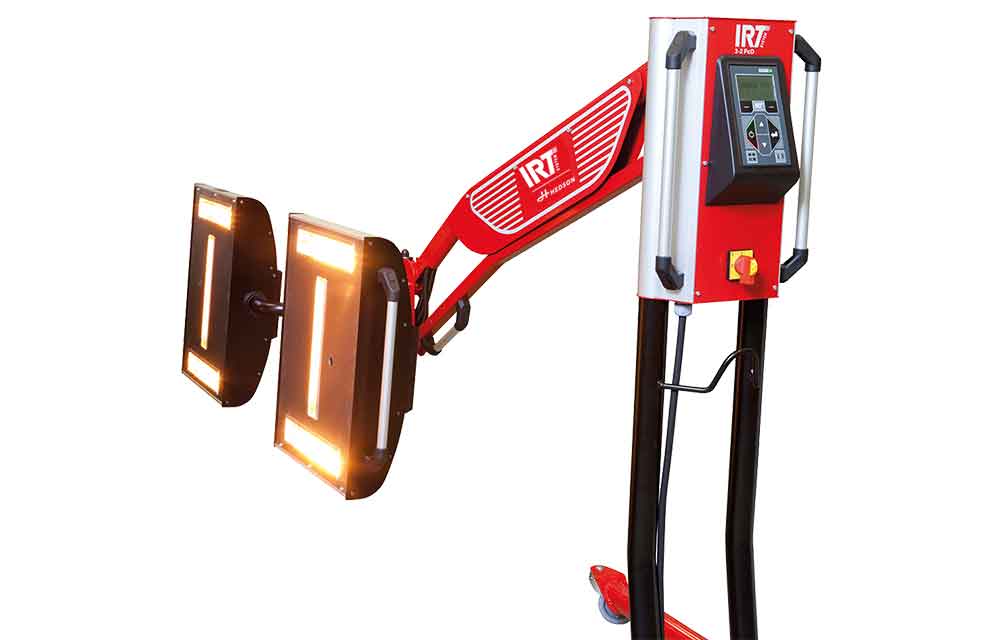

IRT Rail Systems IR Dryers 3-20 PcD

Adapted for the prep station and the spray booth with a control unit for computerized curing process
