IRT PrepCure Prep 1 and Prep 2
Curing made simple
- Compact IR curing for hard-to-reach areas

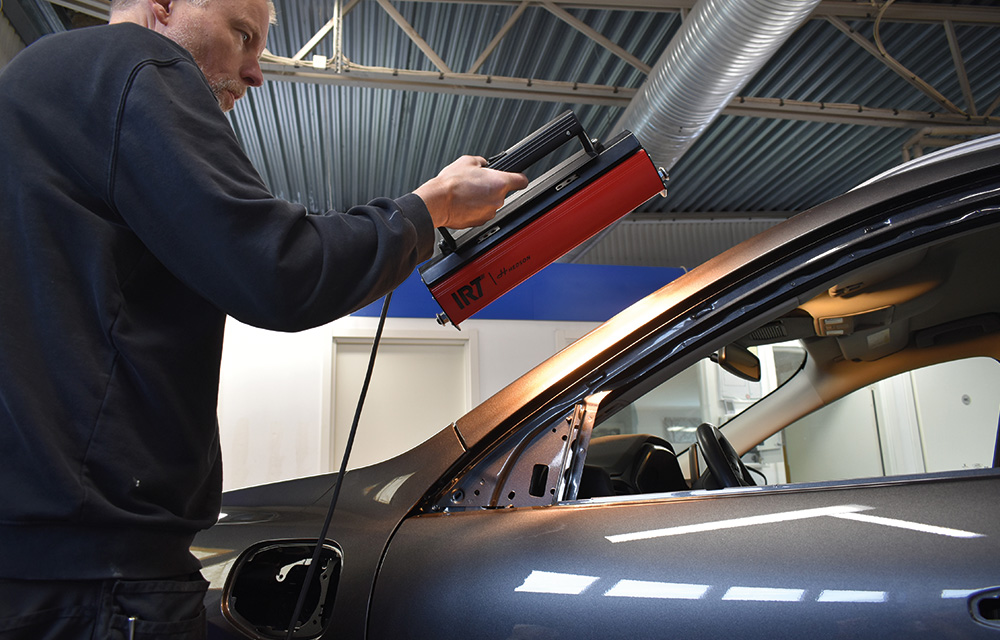

Handheld or on a stand
- High-quality infrared lamps in a compact package
- Stable and tip-resistant mobile stand (option)
IRT PrepCure Prep 1 / 2
Handheld or on a stand (great reach: 1.7 m).

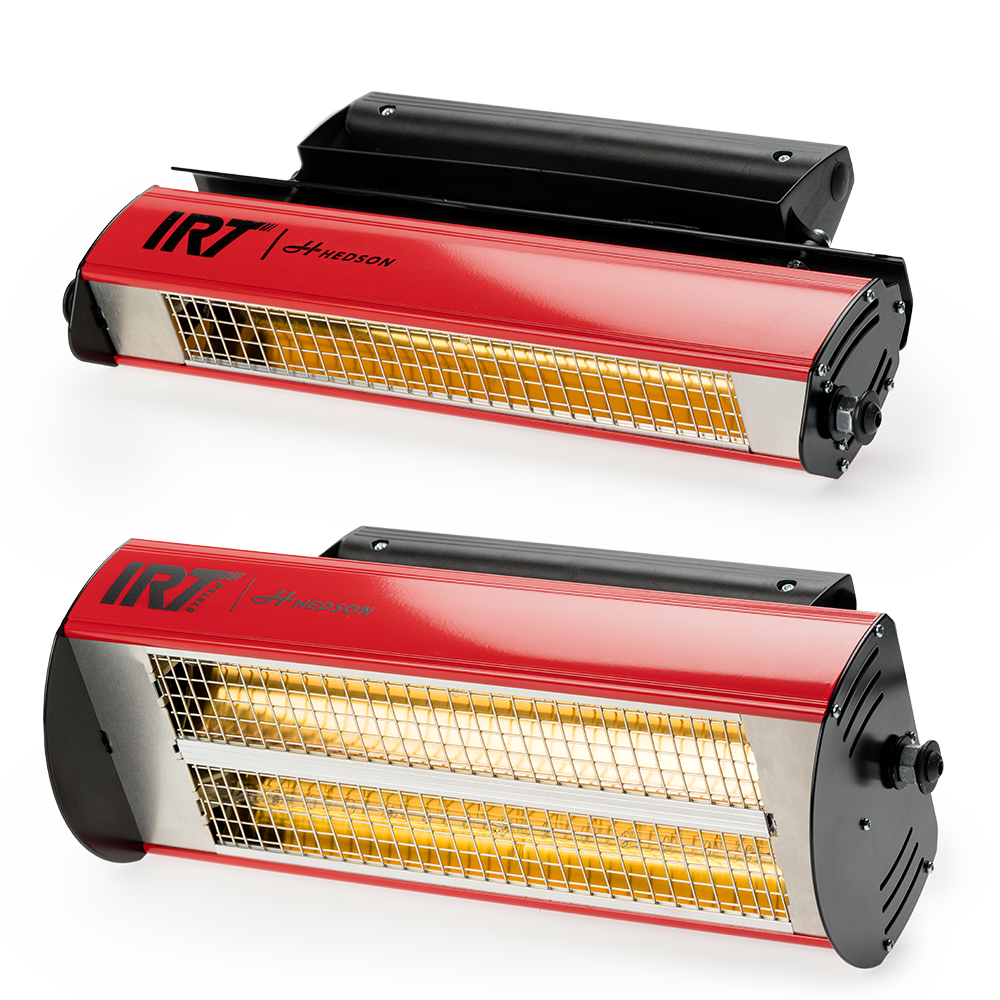

Compact with high-quality lamps
Prep 1 – one lamp – 1000 W
Prep 2 – two lamps – 1000 W/lamp

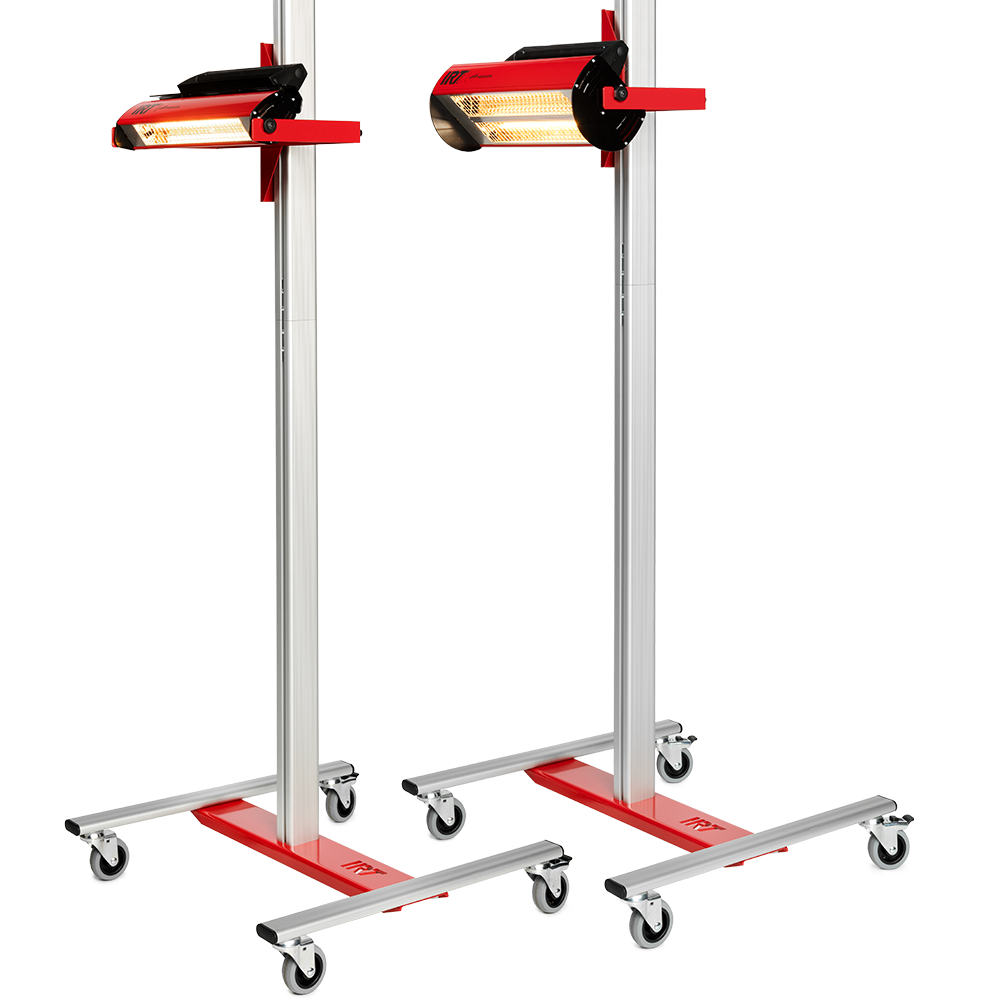

Stable and tip-resistant mobile stand (option)
Powerful ventilation increases lamp life (Prep 2)
Efficient IRT FreeForm 24K gold reflector (Prep 2)
Optional: Stand / Timer for stand
prep 1 handheld
| Part no. | Current | Output power | Fuse | Voltage | Frequency |
|---|---|---|---|---|---|
| 801010 | 4 A | 1 kW | 10 A | 230V, 1 PH, EU | 50-60 Hz |
| 801011 | 4 A | 1 kW | 10 A | 230V, 1 PH, UK (UK plug) | 50-60 Hz |
| 801012 | 4 A | 1 kW | 10 A | 230V, 1 PH, AUS & ARG type 1 | 50-60 Hz |
| 801013 | 7 A | 0.8 kW | 15 A | 100V, 1PH JP | 50-60 Hz |
| 801014 | 7 A | 0.8 kW | 15 A | 120V, 1PH, NA ETL | 50-60 Hz |
prep 2 handheld
| Part no. | Current | Output power | Fuse | Voltage | Frequency |
|---|---|---|---|---|---|
| 801020 | 9 A | 2 kW | 13 A | 230V, 1 PH, EU | 50-60 Hz |
| 801021 | 9 A | 2 kW | 13 A | 230V, 1 PH, UK (UK plug) | 50-60 Hz |
| 801022 | 9 A | 2 kW | 13 A | 230V, 1 PH, AUS & ARG type 1 | 50-60 Hz |
| 801023 | 13 A | 1.6 kW | 15 A | 100V, 1PH JP | 50-60 Hz |
| 801024 | 13 A | 1.6 kW | 15 A | 120V, 1PH, NA ETL | 50-60 Hz |
| Part no. | Voltage | |
|---|---|---|
| 801028 | Stand for Prep 1 / 2 | |
| 801029 | Timer for stand (not NA) | 230V, 1 PH, UK (UK plug) |
Related Equipment
Even heat = faster, better curing.
The IRT FreeForm reflector* shape is carefully designed so that no spots get too hot or too cold. (Because the coldest part decides how long curing takes, and the hottest part limits the max temperature.)
Less wasted energy with 24K gold.
We coat the IRT FreeForm reflector with 24K gold. This reflects the infrared energy onto the surface (up to 97%), not the surroundings.
Longlife lamps – low maintenance.
To keep everything running smoothly, a high-quality ventilation system* prevents overheating. This help the lamps last way longer (up to 20.000 hrs).
