IRT Rail Systems – operational safety with integrated cables
Equip with any number of IRT dryers.
Operational safety

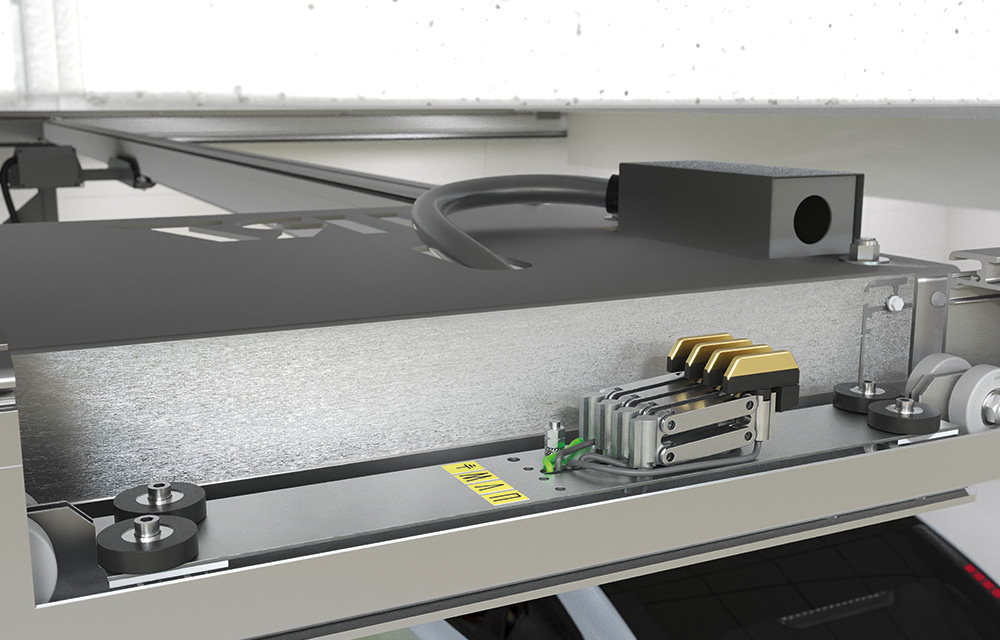

High quality with closed rails and integrated cable system extends lifetime and creates a maintenance free environment.
Lowbuilt to suit workshops
Long experience with rail system installation has resulted in this extremely lowbuilt construction.
For prep area & spray booth
Our standard sidehung cross rail system fits most workshops. Customized solutions are also available to fit all prep areas and paint booths.
IRT Rail Systems
Product information
Tailor-made for prep area and spray booth
The IRT Rail System can be equipped with any number of IRT dryers, all hanging on easy-glide, self-balanced cassette arms (note that the rail dryer is not included).
With the IRT Rail System you can quickly maneuver the dryer into the perfect curing position, reaching all parts of the vehicle, without obstructing loose cables. The IRT Rail System comes in a variety of shapes and sizes and is customizable to suit any type of workshop.

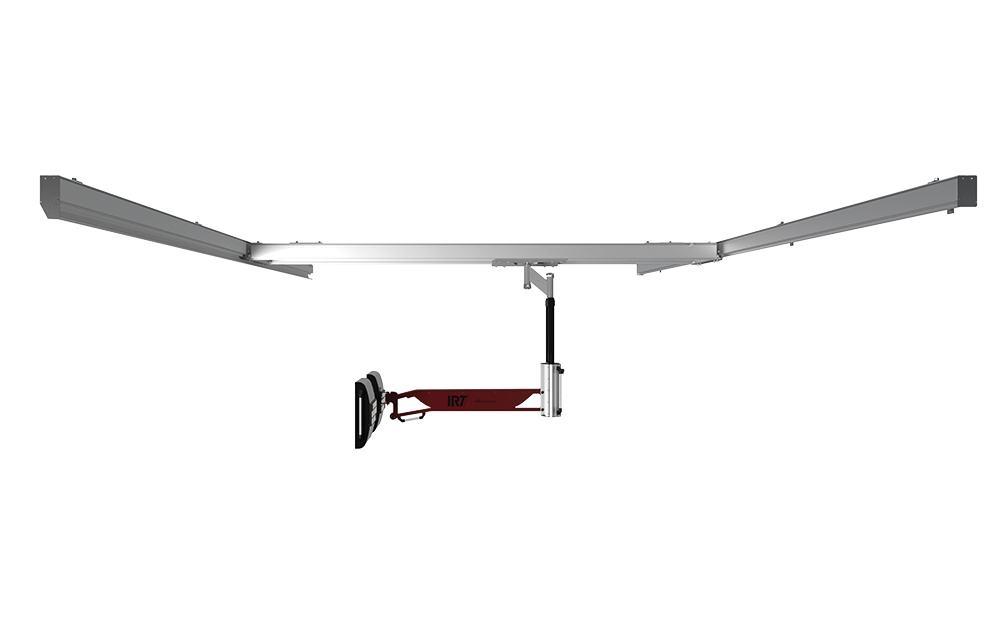

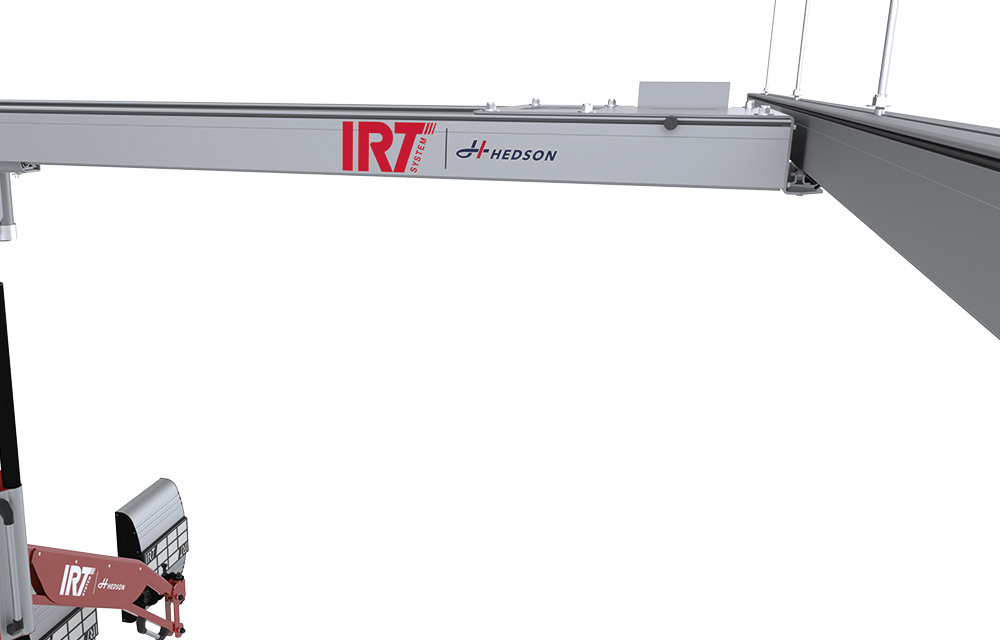

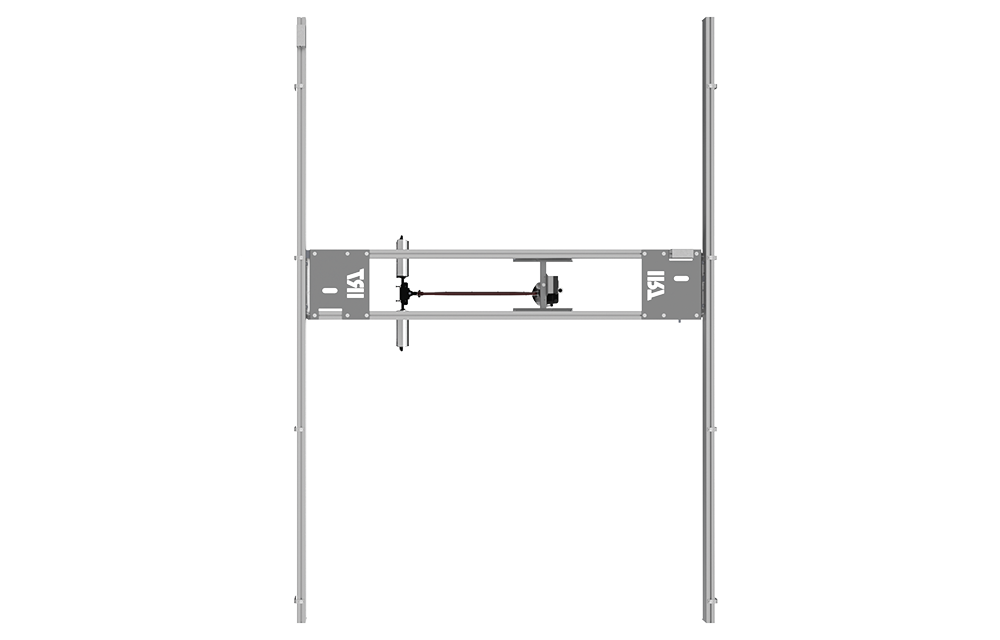

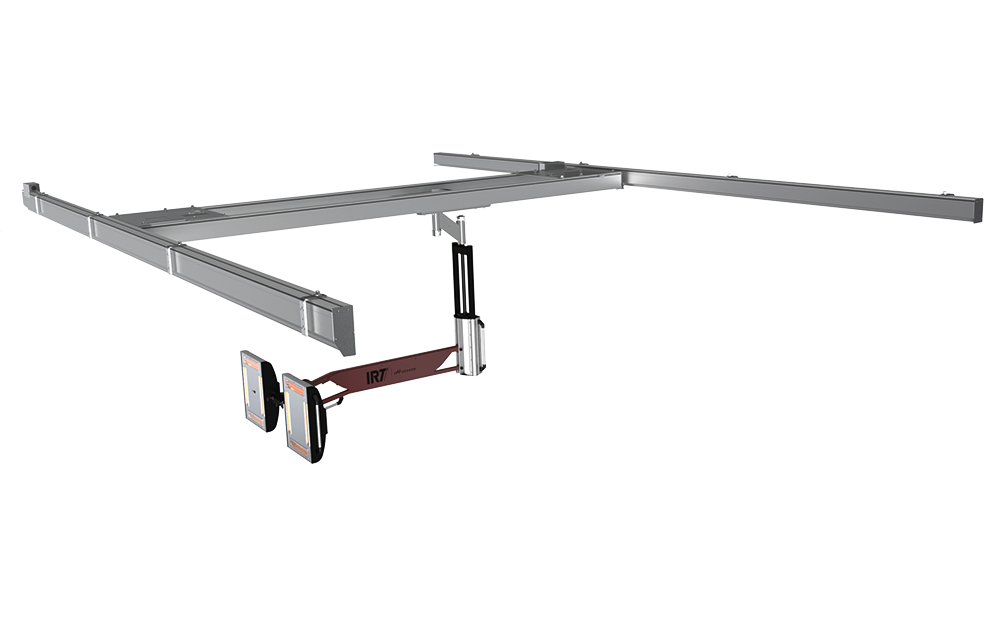

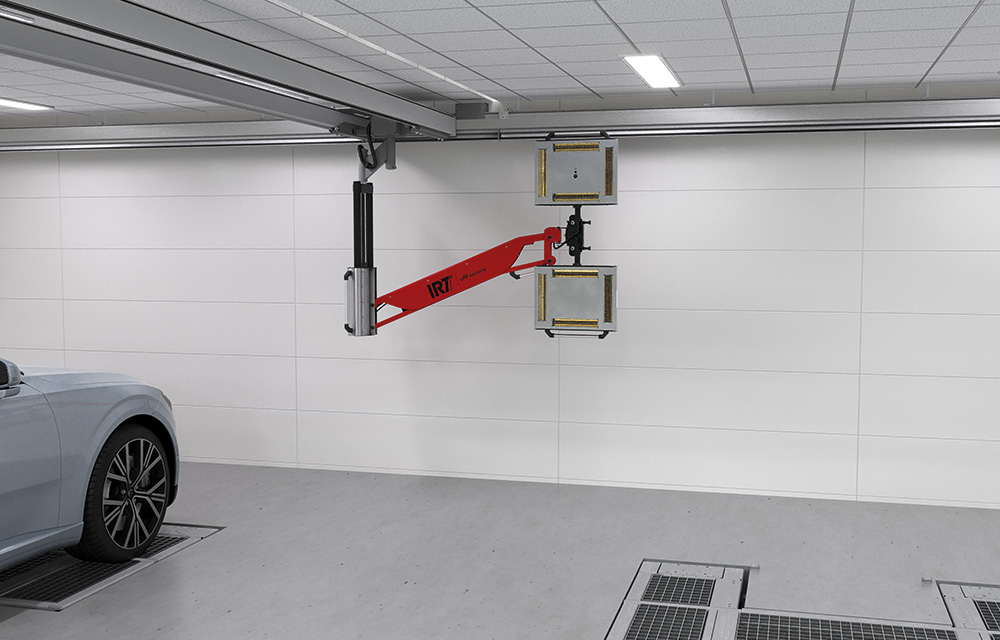

Sidehung Cross Rail System (standard)
Our top-selling version, uses very little space to allow as much flexibilty of use as possible.

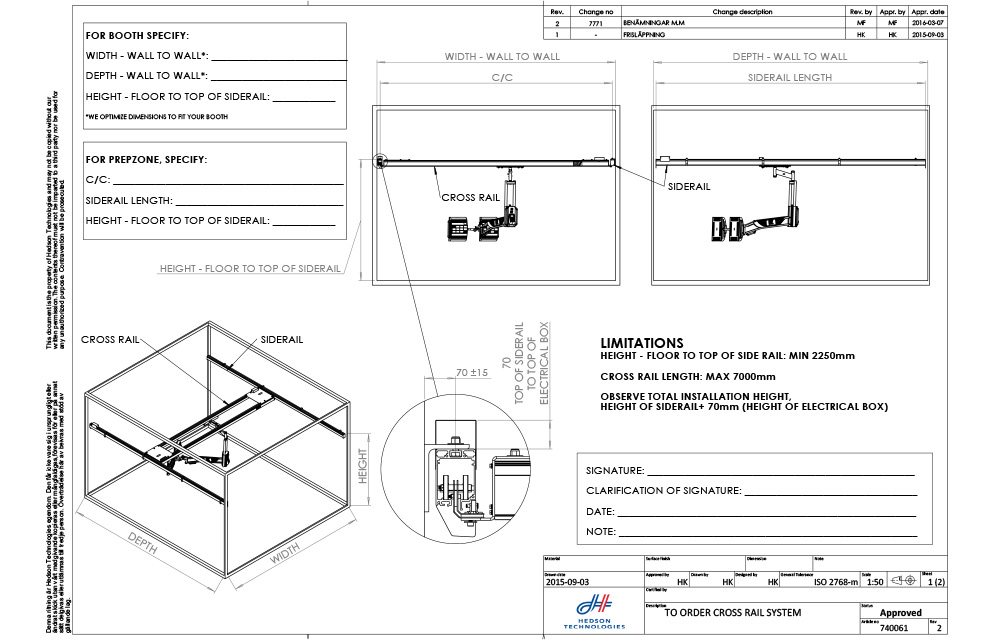

– Use drawing 740061 for guidance (Technical Documentation below). – Follow the Quick Guide steps below to order all necessary parts.

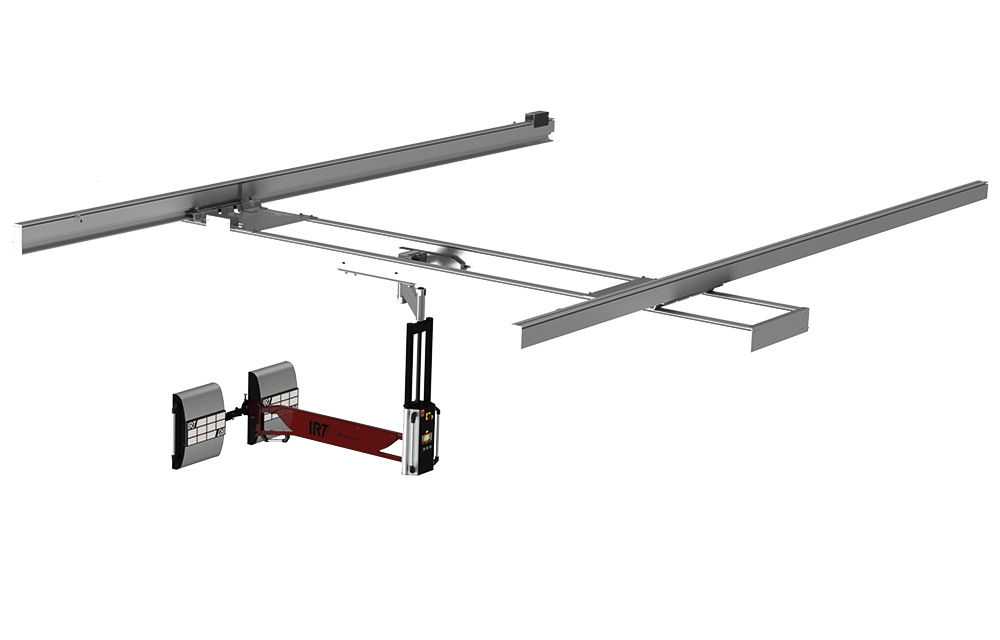

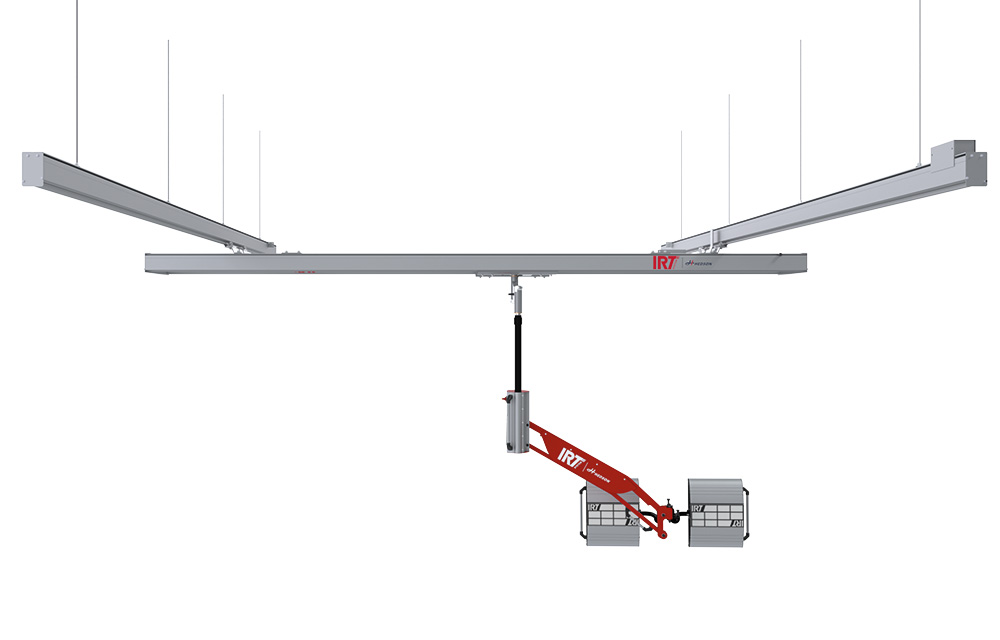

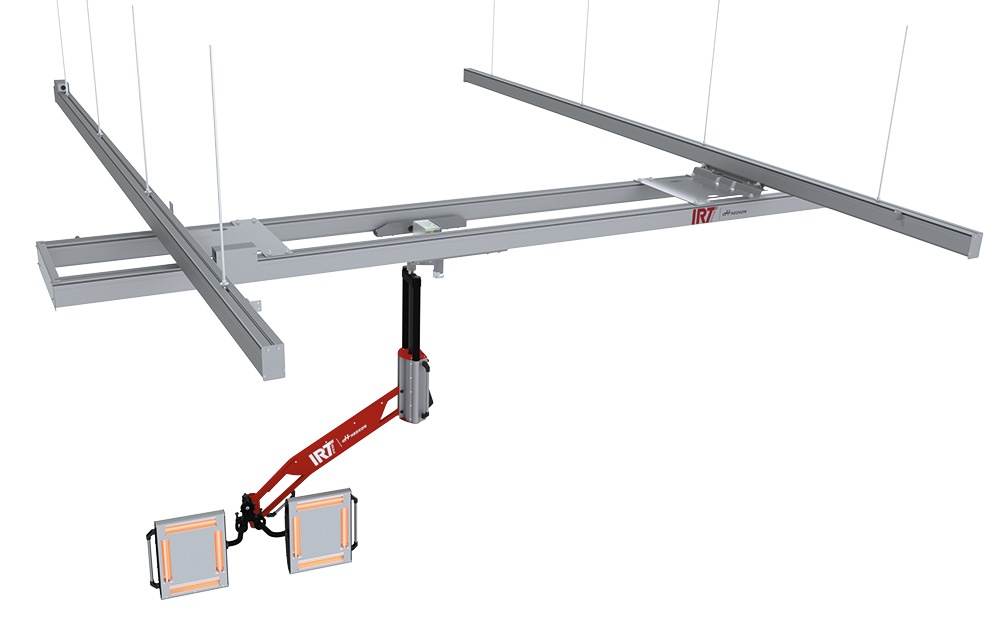

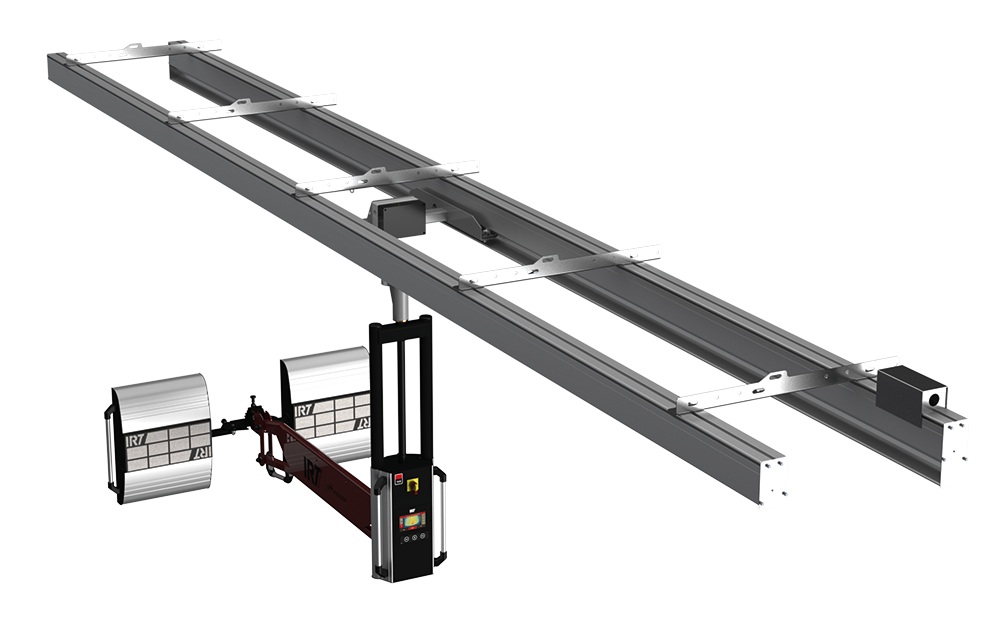

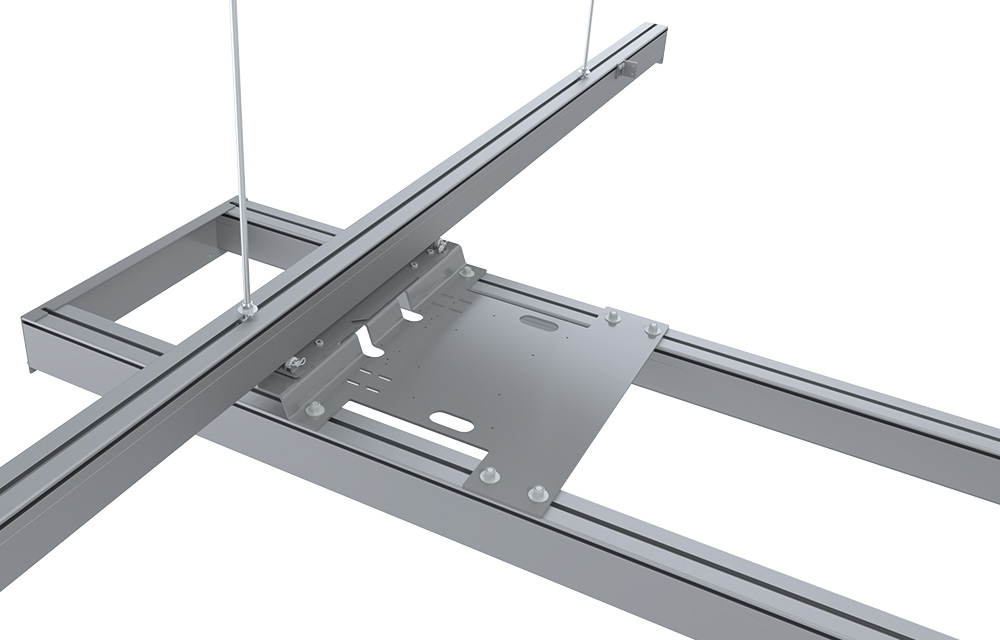

Underhung Cross Rail System
For when you need to work over an area, one or several work stations. By positioning the cross rail under the side rails, obstructions in the prep area /spray booth can be avoided. This version is ceiling installed.

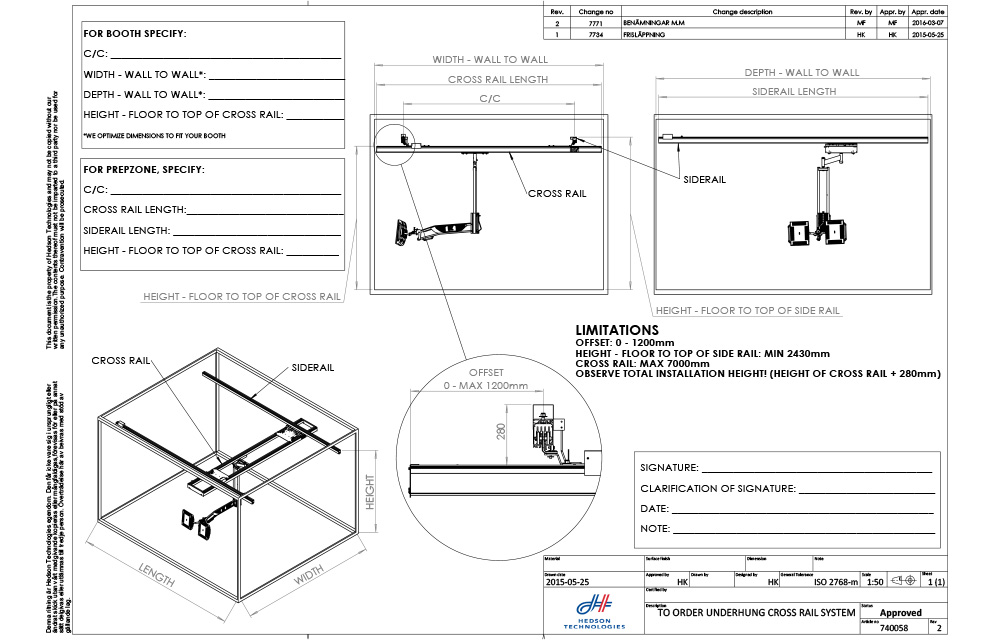

– Use drawing 740058 for guidance (Technical Documentation below). – Follow the Quick Guide steps below to order all necessary parts.

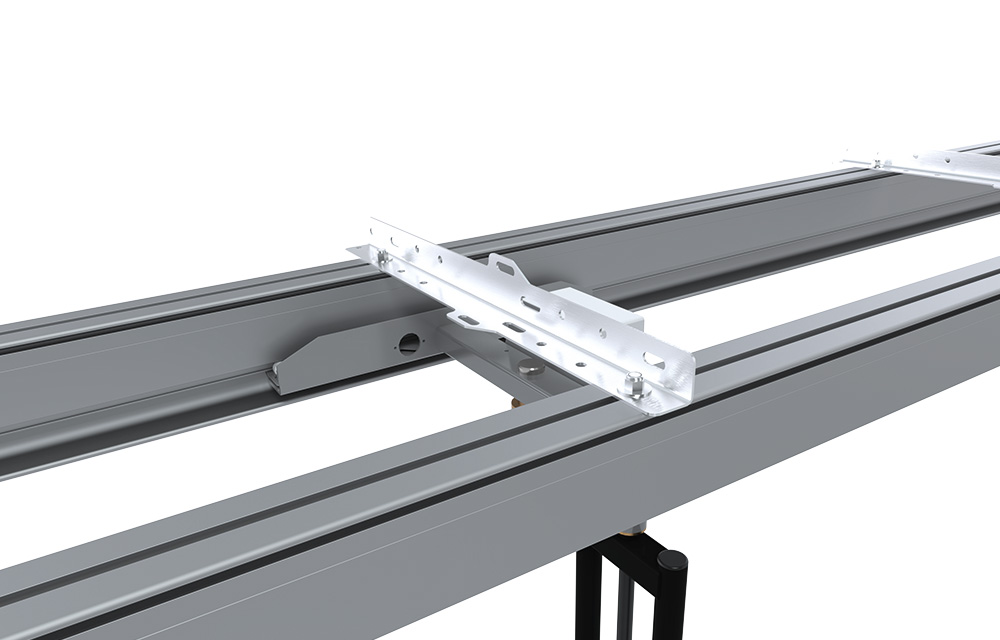

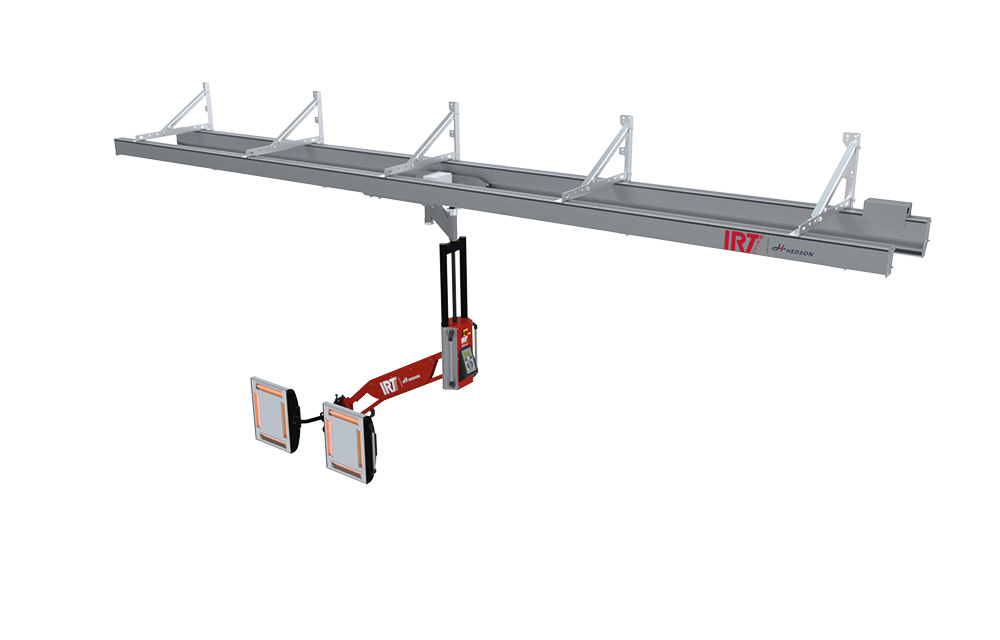

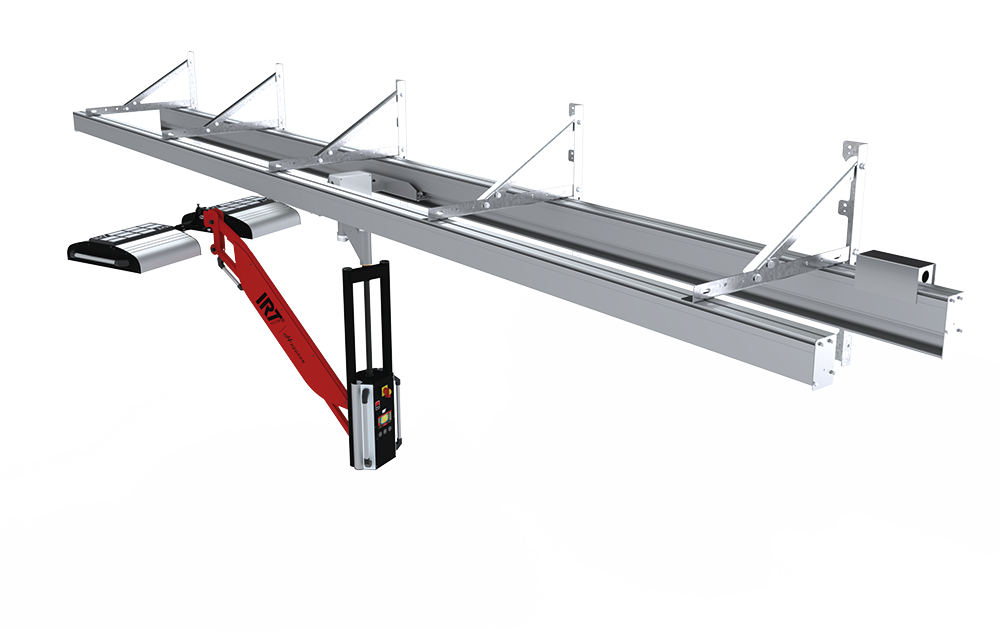

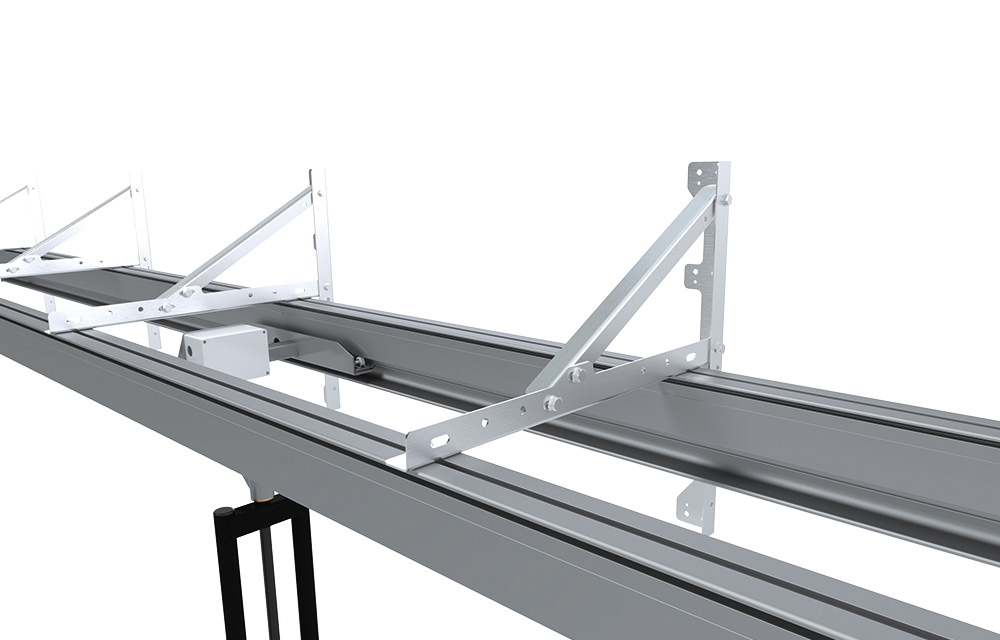

Wall Rail System
For when you need to work along a fixed line. This version is installed to the wall.

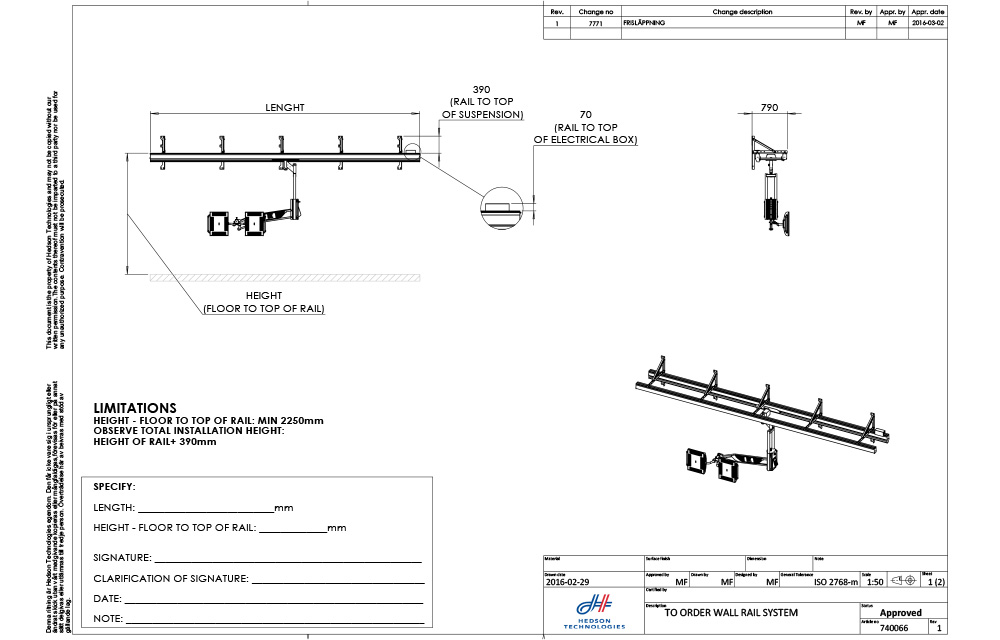

– Use drawing 740066 for guidance (Technical Documentation below). – Follow the Quick Guide steps below to order all necessary parts.

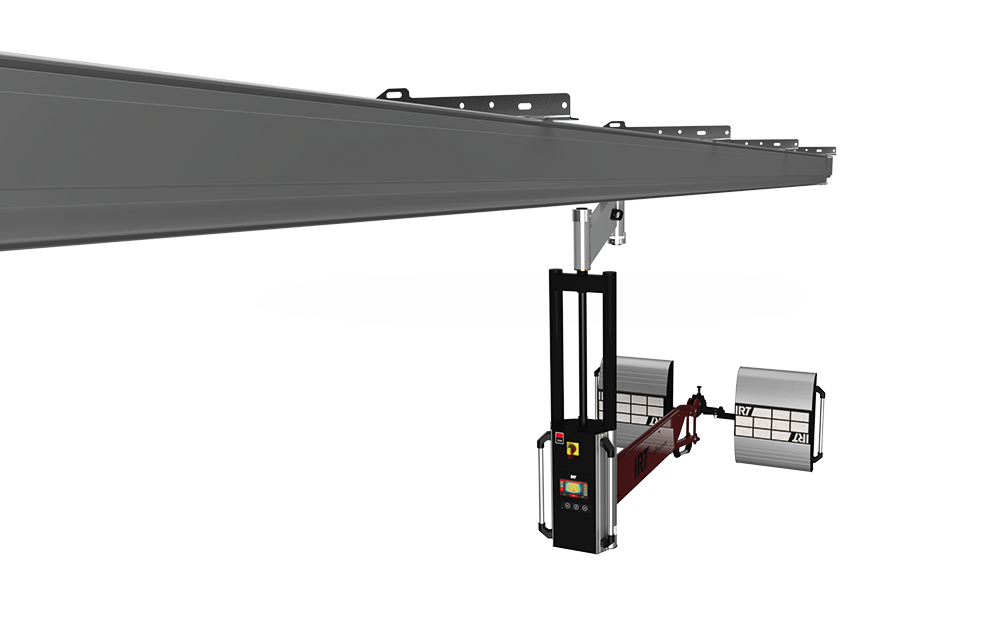

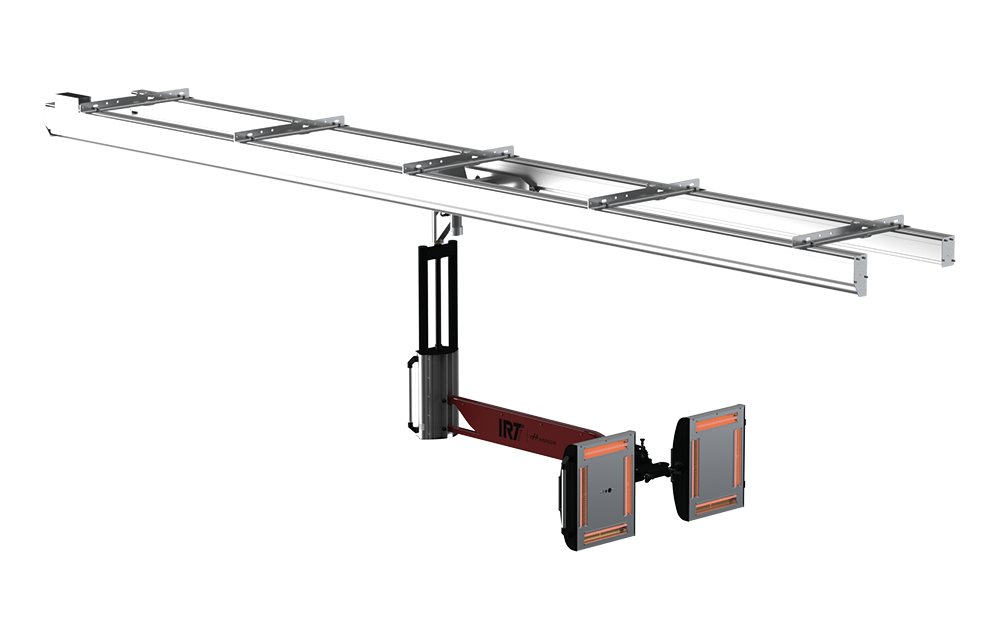

Rail System
For when you need to work along a fixed line. This version is installed to the ceiling.

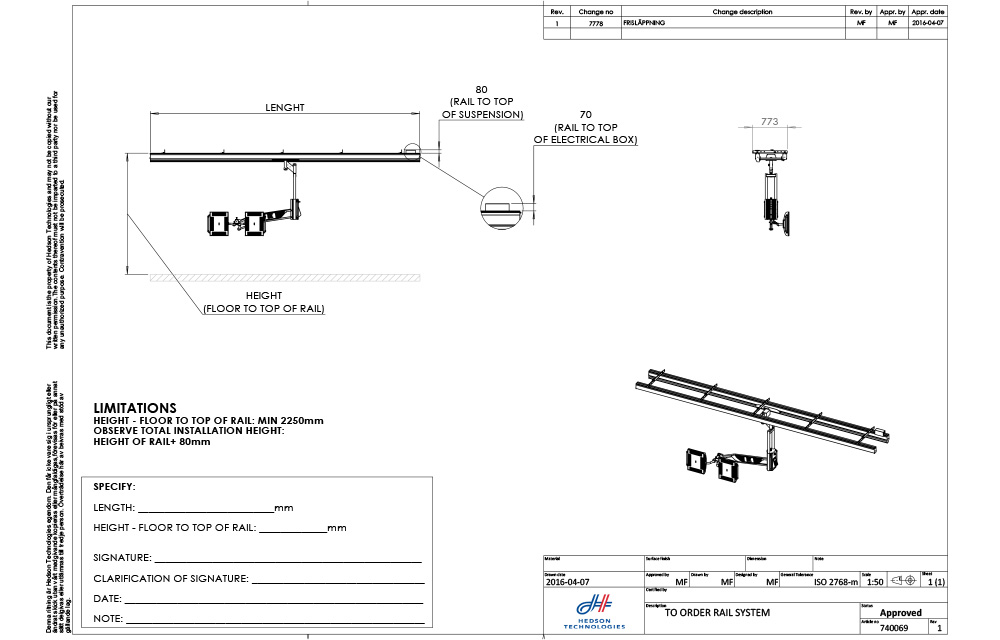

– Use drawing 740069 for guidance (Technical Documentation below). – Follow the Quick Guide steps below to order all necessary parts.
IRT Rail Systems
Video
Watch these two short videos for more insight into our Rail Systems for rail dryers
With a wide curing area of 1.0 × 1.1 m and a maximum working height of 2.2 m, the Prep 4 easily handles everything from small repairs to roof panels on larger vehicles.
