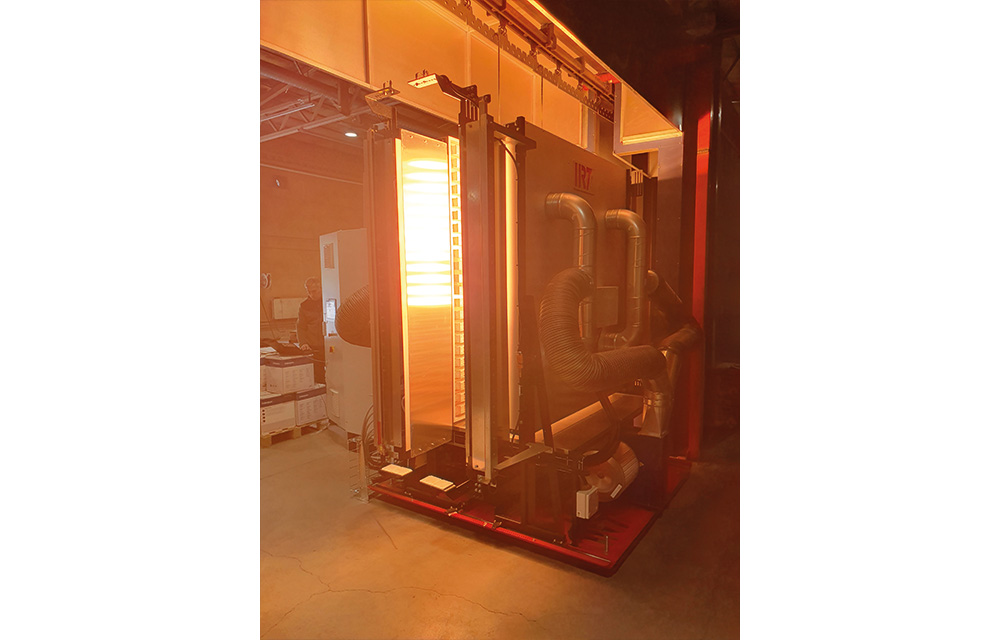

IRT Infrared Booster

Product information

Application

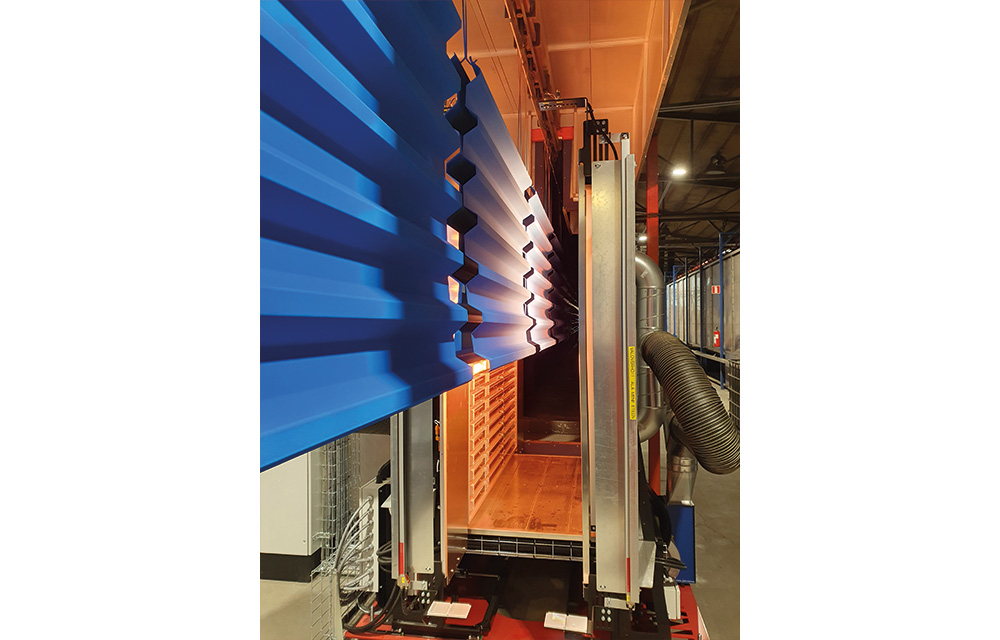

The IRT Booster is ideal for powder coating operations handling a wide range of part sizes, from small components to larger industrial goods. It integrates seamlessly into overhead conveyor systems and supports dynamic production environments.

How It Works

The system uses infrared heating to rapidly increase the temperature of coated parts before they enter the convection oven. This preheating improves curing efficiency and allows for higher line speeds.

Smart sensor technology automatically detects the size of incoming parts and adjusts the heating zones accordingly:

• Width detection adjusts side positioning
• Height detection activates relevant heating zones
• Individual zones can be controlled from 0–100% power

Custom recipes can be created and stored to match different production requirements.

Technical Configuration

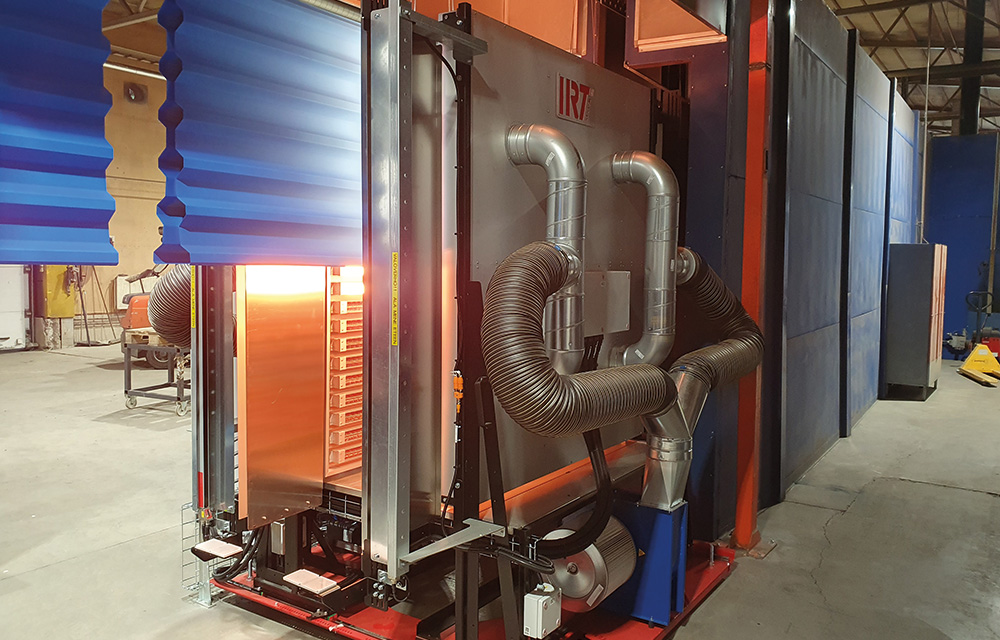

• Infrared Booster with control cabinet

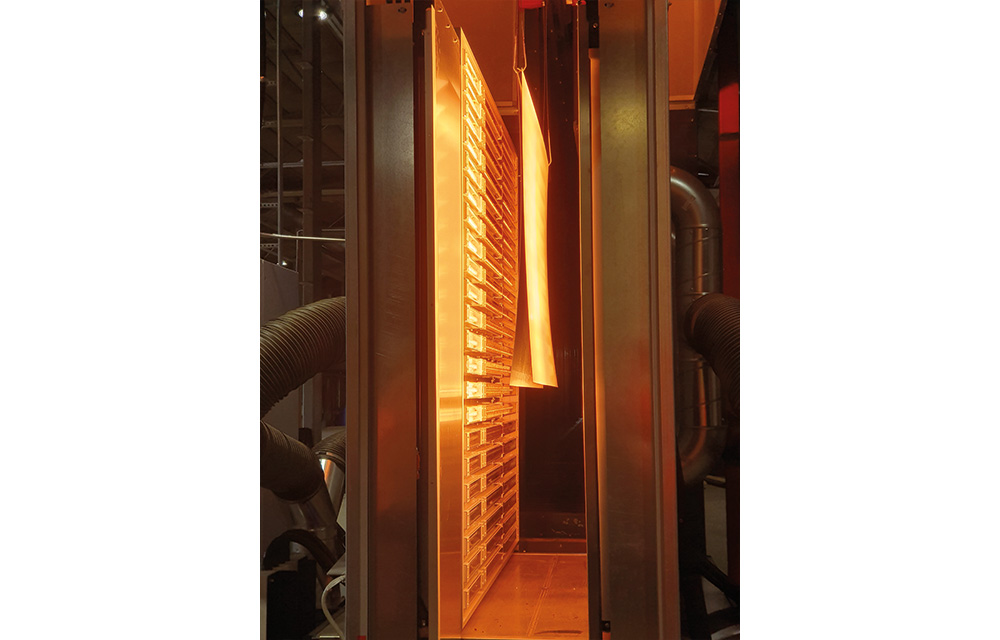

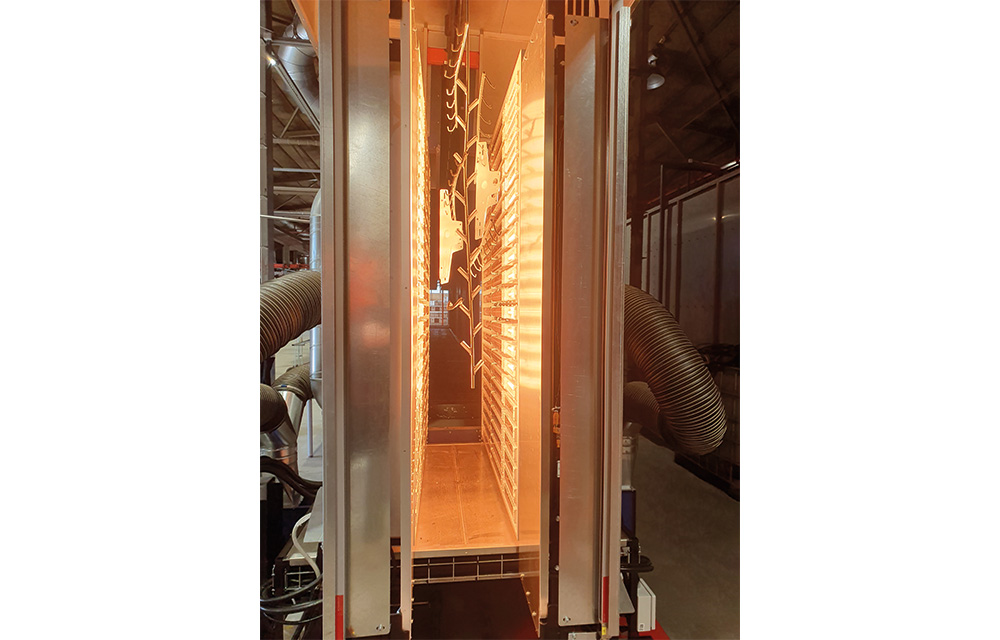

• PowerCassettes mounted on opposite sides
• Multiple high-performance infrared lamps per side
• Individually controlled heating zones
• HMI interface for full system control

Performance Results

• Increased line speed from 1.0–1.2 m/min to 1.5–2.0 m/min
• Ability to process thicker goods (up to 60 mm)
• Improved temperature consistency entering convection oven (approx. 120–180°C)

Energy Efficiency

The IRT Booster operates only when parts are present, reducing unnecessary energy consumption. By preheating parts efficiently, it also allows lower temperatures in the convection oven, further optimizing energy use.

Advantages

Compact footprint for easy integration

Supports thicker materials on existing lines

Reduces dirt buildup in convection ovens

Improves overall curing performance
