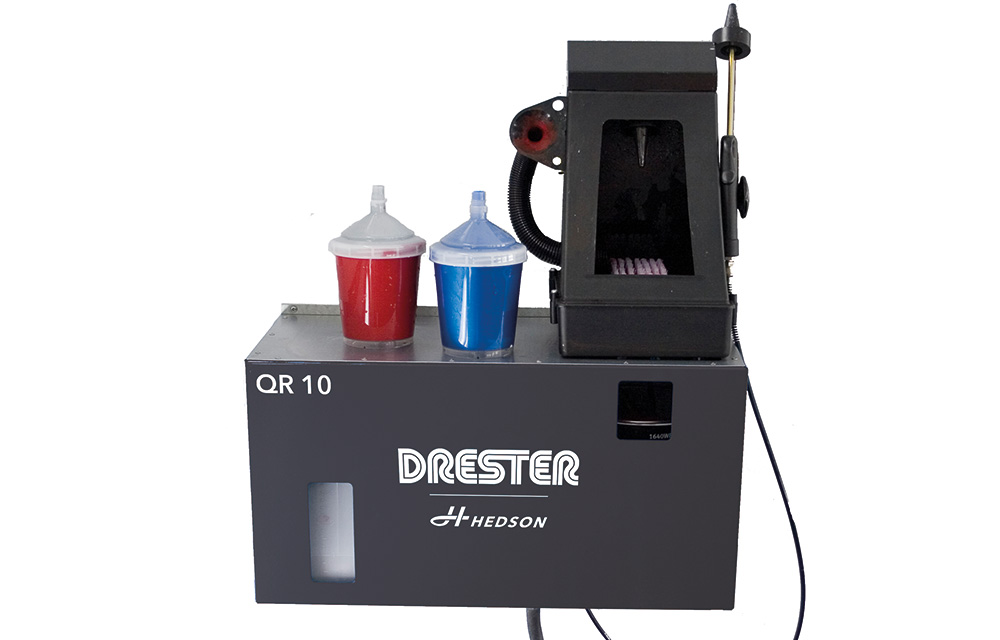

Drester QuickRinse QR-10 provides quick, thorough spray gun cleaning for waterborne paints, especially for use with disposable cup system.
For all disposable cup system
Time and cost savings
Perfectly clean spray gun in 10 seconds
QR-10 can be easily installed anywhere in the paint shop, including inside the paint booth (only for water-borne cleaners).
Installation is simple and easy, either with the use of magnets or more permanently with zip screws.
Save time by keeping the gun cleaner close to the paint job.
Drester QuickRinse QR-10
Product information
Quick and easy high-pressure cleaning for disposable cup systems.
Drester QR-10 is a manual gun cleaner for water-borne paints and is equipped with the well-proven diaphragm pump to allow for proper flow and pressure. Drester QR-10 can be placed inside the spray booth.
Permitted solvents: Water or water-based solvents
Liquid volume of machine: 5 + 5 liter
Compressed air needed: 5-12 bar (80-180 psi), 100 l/min (4 cfm)
Pump capacity: 2 l/min
Drester QuickRinse QR-10
Specifications
Weight (kg)
12.5 kg
Length (mm)
535 mm
Height (mm)
645 mm
Width / depth (mm)
263 mm
Air supply
5-12 bar / 80-180 psi
Cabinet
Grey RAL 7021
Washing stations
1
Cleaning medium
Waterborne
Manual wash zone
Automatic wash zone
Can be connected to Drester Recycler through Drester RDX unit
Fixed rinse nozzle with clean solvent
Automatic cleaning with recirculating solvent
Automatic rinsing with clean solvent
Flow-through brush with recirculating solvent
Flow-through brush with waterborne solution
Automatic cleaning with recycled waterborne solution
