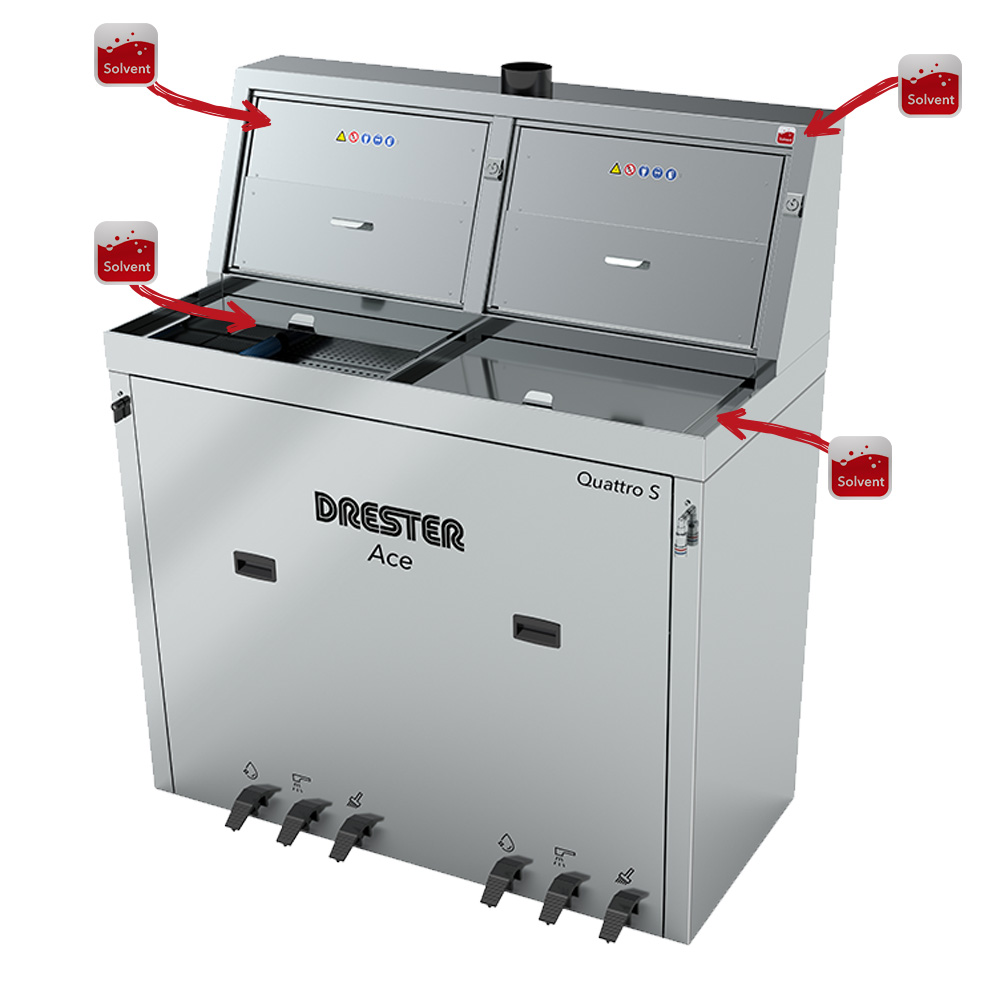

Drester Ace Quattro Solvent stainless steel DI4S Ace Quattro Solvent; Auto-wash in the top compartment and manual wash in the lower area. Maximize your washing power, use both at the same time! Manual washing zone: All washing zones have easily removable working platforms. A breeze to clean with smooth welded edges inside. Our patented universal spray gun holder opens the paint channel and fixes the spray gun in seconds, with the air channel protected by an air purge hose. Drester Capture@Source ventilation provides superior working conditions. High speed extraction of the vapours at the source means minimized user exposure. Our pump, the powerhouse behind all our systems, is focused on efficiency. Unparalleled flow and pressure from our pumps ensure the best possible cleaning power. The new advanced design of the wash compartment nozzle system is only possible, thanks to the robust pump, resulting in more effective wash cycles. With a track record of success spanning over 30 years, almost 200.000 Drester pumps were supplied. Drester Ace Quattro Solvent stainless steel DI4S Drester Ace Quattro Solvent stainless steel DI4S Drester Ace Quattro Solvent stainless steel DI4S Drester Ace Quattro Solvent stainless steel DI4S Drester Ace Quattro Solvent stainless steel DI4S Drester Ace Quattro Solvent stainless steel DI4S Pneumatic lift with swivelarms, 3 t lifting capacity, in-groundDrester Ace Quattro Solvent stainless steel DI4S
New and unique Capture@Source ventilation that captures emissions close to the source. User exposure is minimized.
Product information
Automatic rinsing with clean solvent (after auto wash).
Manual, fixed rinse nozzle with clean solvent.
Flow-through brush with recirculating solvent (manual wash zone).
Patented spraygun holder
Always excellent cleaning results and fits all spray gun brands immediately.Capture@Source ventilation
Capture@Source uses discreet and out of the way vents to intercept the vapors.
Pumps (ATEX cat 1/zone 0, solvent groups IIA and IIB)
Video
Specifications
Weight (kg) 100 kg Length (mm) 1190 mm Height (mm) 1488 mm Width / depth (mm) 675 mm Air supply 7-12 bar / 110-180 psi Cabinet Stainless steel Washing stations 4 Cleaning medium Solvent Manual wash zone YES Automatic wash zone YES Can be connected to Drester Recycler through Drester RDX unit YES Fixed rinse nozzle with clean solvent YES Automatic cleaning with recirculating solvent YES Automatic rinsing with clean solvent YES Flow-through brush with recirculating solvent YES Flow-through brush with waterborne solution NO Automatic cleaning with recycled waterborne solution NO Rinse gun with recycled waterbourne solution NO Dual filter system for recycled water NO Automatic agitation when flocculating NO Air gun for drying YES Air supply line and funnel for blowout YES Time extension kit YES Extractor diameter 100 mm (3.94") Drum volume Solvent 20-60 l Aqua 20-25 l Product documents
Document name Document ID Document type Language
Product Manual Drester ACE
231721-R4
Manual
EN, DE, FR, NL, SE, IT, ES
Brochure Drester ACE
Brochure Drester ACE (EN)
Brochure
EN
Document name Document ID Document type Language Product images
Add ons
Accessories
MAGNETIC GUN HOLDER, for 2 to 3 guns. Fit it standing on the working platform/hood top or hanging on the side of the cabinet. Holds two guns with cups, or three guns without cups.
FLOW-THROUGH WASH BRUSH
WASH BRUSH 3 pcs of 231866
COLLECTING TRAY on wheels, large
HOSE KIT, to connect an Ace Quattro Solvent to an RDX
