Herkules HM 1100

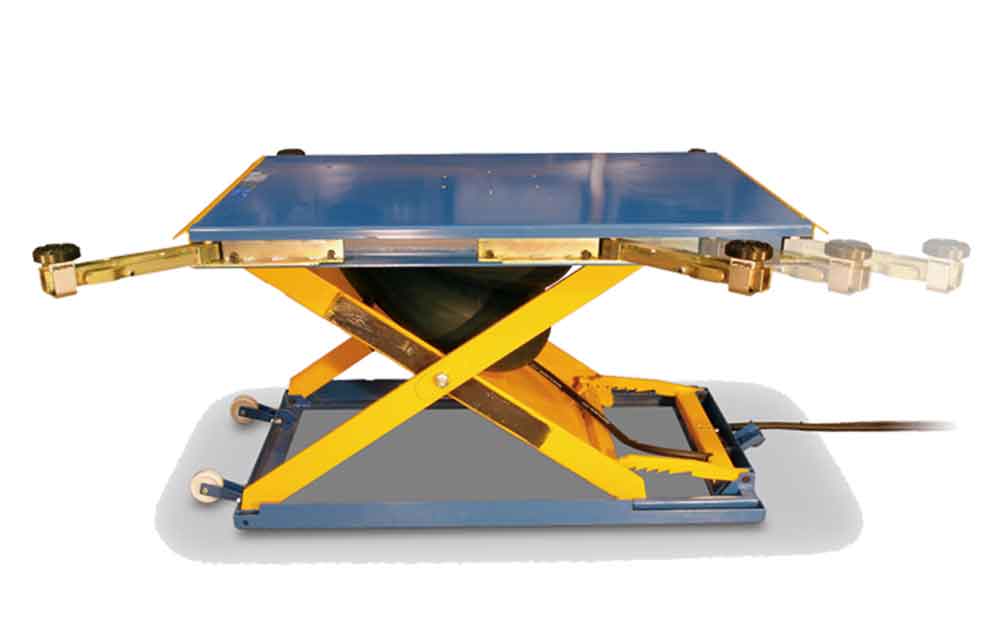

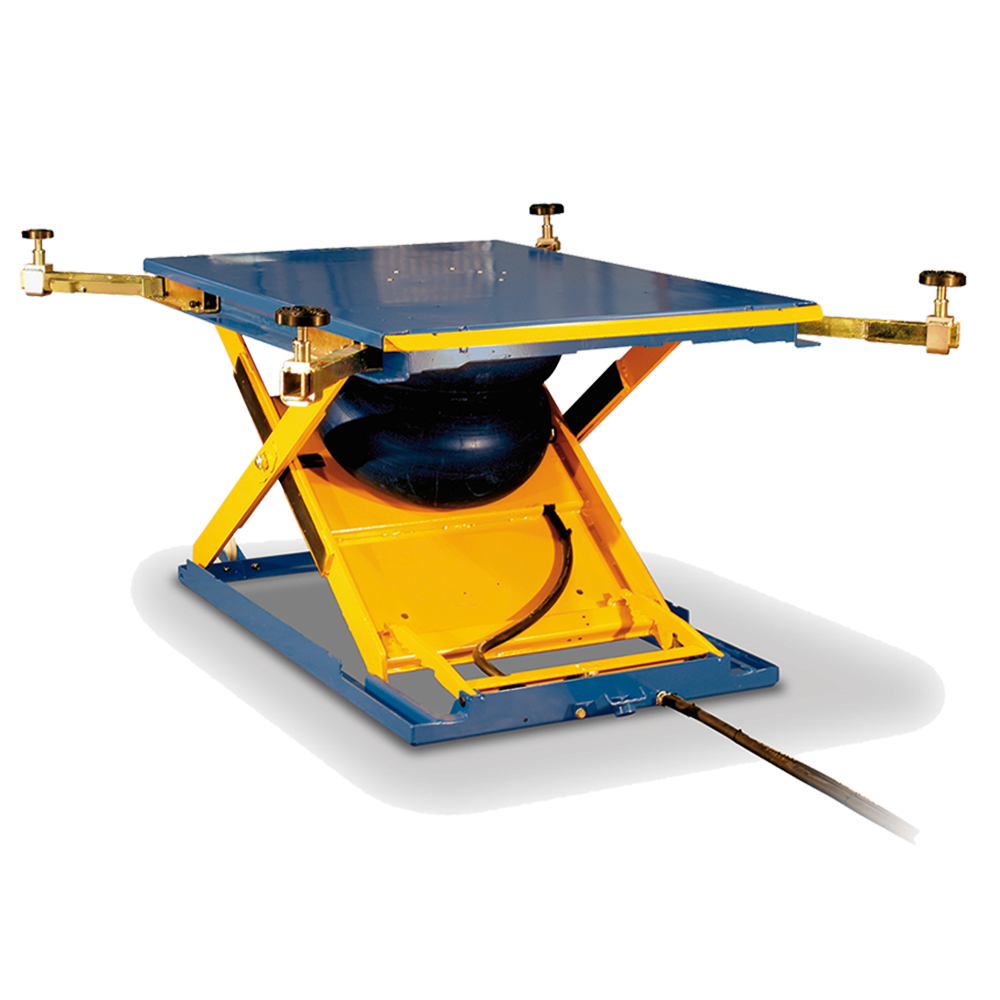

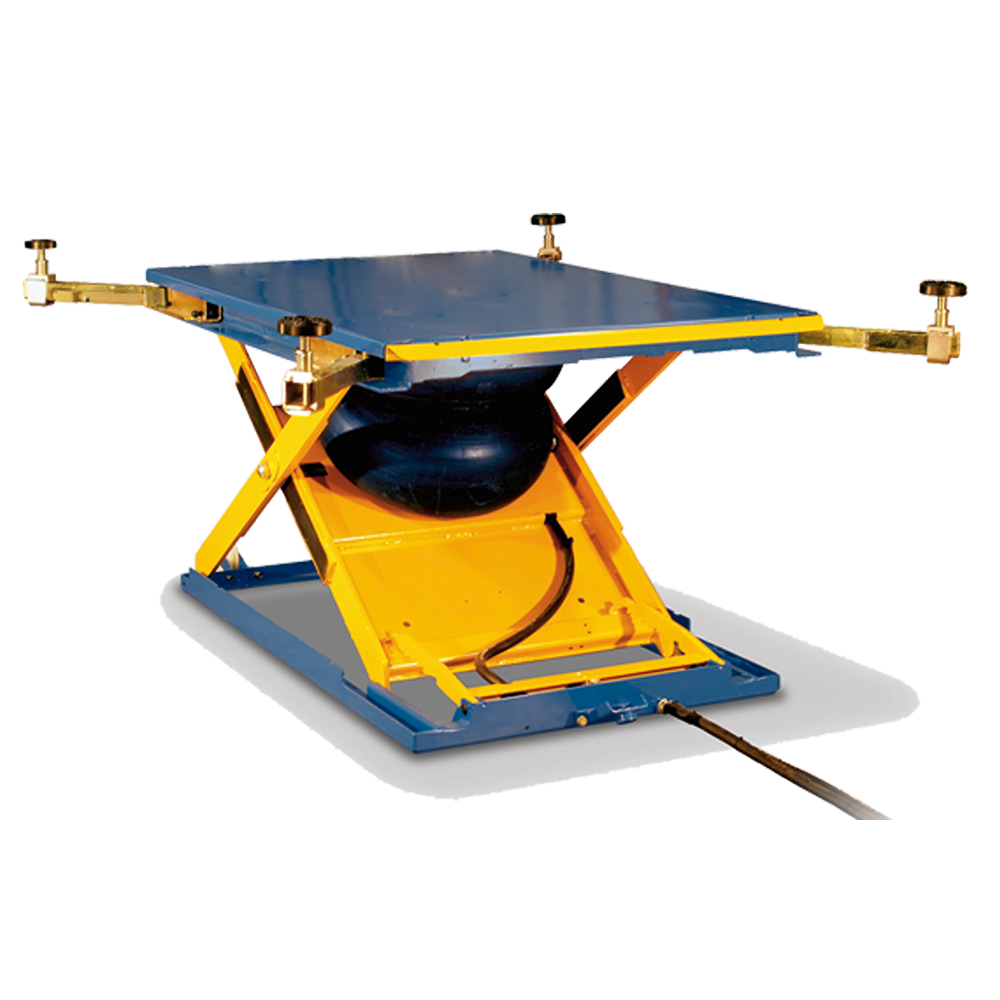

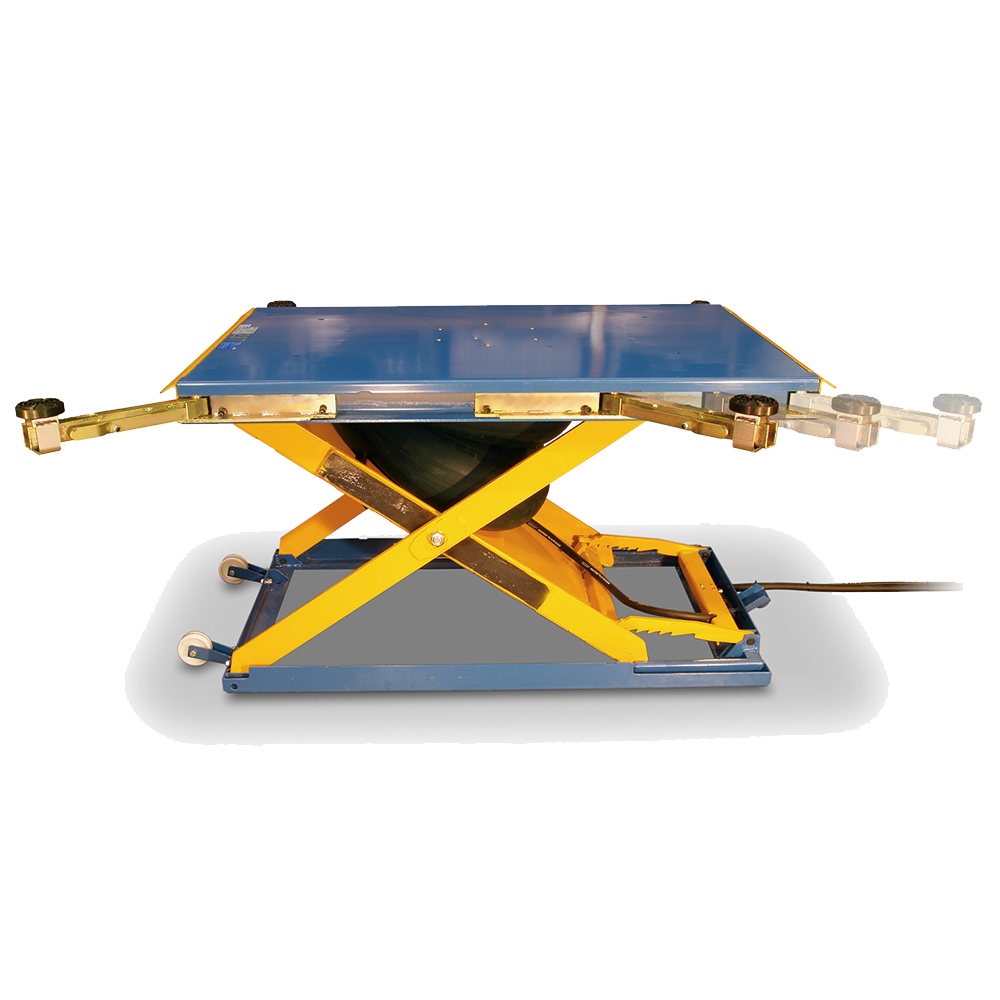

With the lifts, horizontal moveable swivel arms, it is easy to reach the vehicles' original lifting points

Product Highlights

High capacity

The lifting and lowering of the working height is done safely and smoothly with a Herkules HM 1100 by Hedson and increases the access to damaged areas and the ergonomic work process with loading capacity up to 2,8 tons

Space savings

This lift is available in three types for different demands – on-ground, flush mounted and rail transportation. The lifts are easy to install and facilitate an individual planning of body shops by using the existing space optimally

Ergonomic

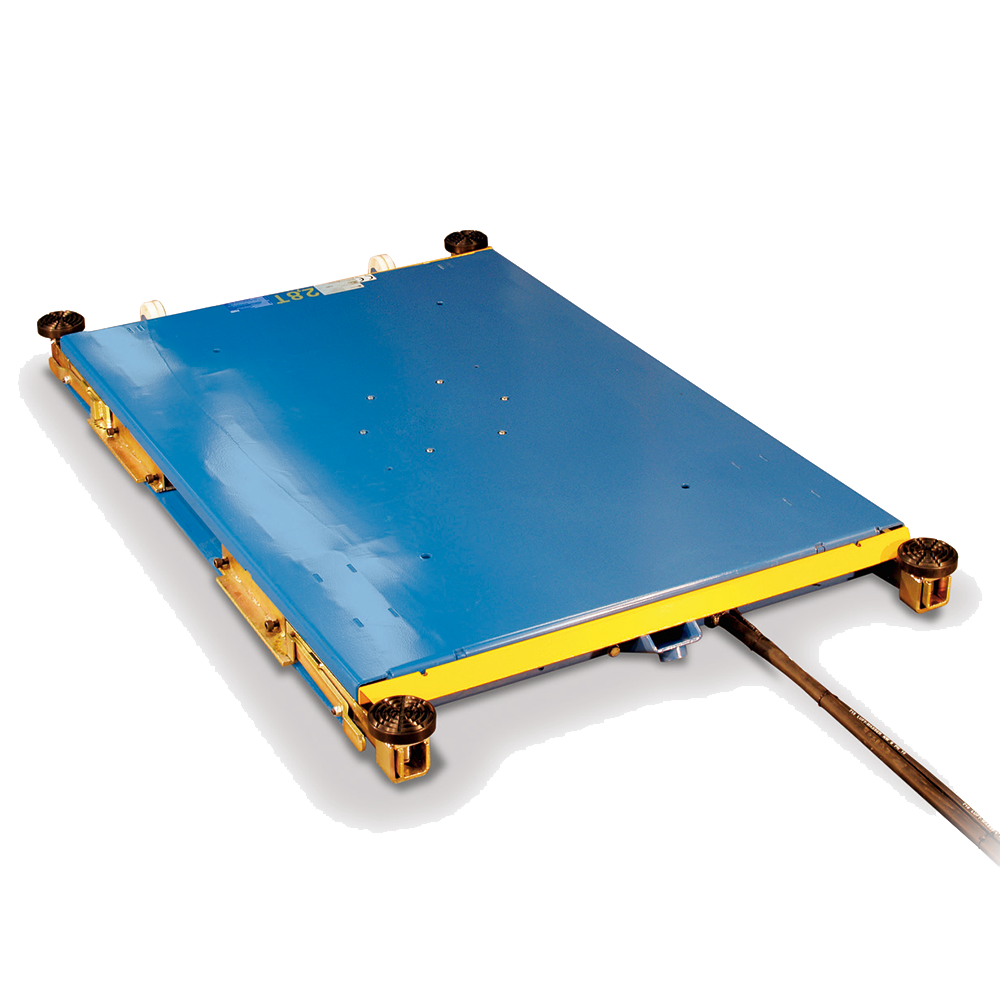

Due to the low construction height, it is easy to drive the vehicles onto the lift. The work efficiency is increased and the quality is improved by better visual control opportunities due to the easy lifting

Technical Specification

Herkules HM 1100

Herkules HM 1100 - version 1
Part.no. HM 1100-01
Herkules HM 1100 - version 2
Part.no. HM 1100-04
Weight
510 kg
Lifting height- version 1
930 mm
Lifting height - version 2
825 mm
Loading capacity
2,5 tons
Air supply
6 bar
Working height - version 1
~ 1100 mm
Working height - version 2
~ 1000 mm
Object height only
115 mm
Pit depth - version 2
115 mm
Installation - version 1
On-ground
Installation - version 2
Flush mounted, with 4 rubber blocks 800-105

Consumables - Rubber blocks

220x130x120 mm for RS lift
Part.no. 800-108
120x120x100 mm for Multi lift
Part.no. 800-107
120x100x80 mm Standard
Part.no. 800-105
220x130x120 mm for Multi lift
Part.no. 800-106
160x140x110 mm for VW bus, Transporter
Part.no. 800-112
120x100x30 mm for DB
Part.no. 800-104

Consumables

Handle and wheels for HM lift
Part.no. 300-170HM
Fitting frame (HM 1100-04), primed
Part.no. 300-317
Fitting frame (HM 1100-04), zinc coated
Part.no. 300-318

Request manual
