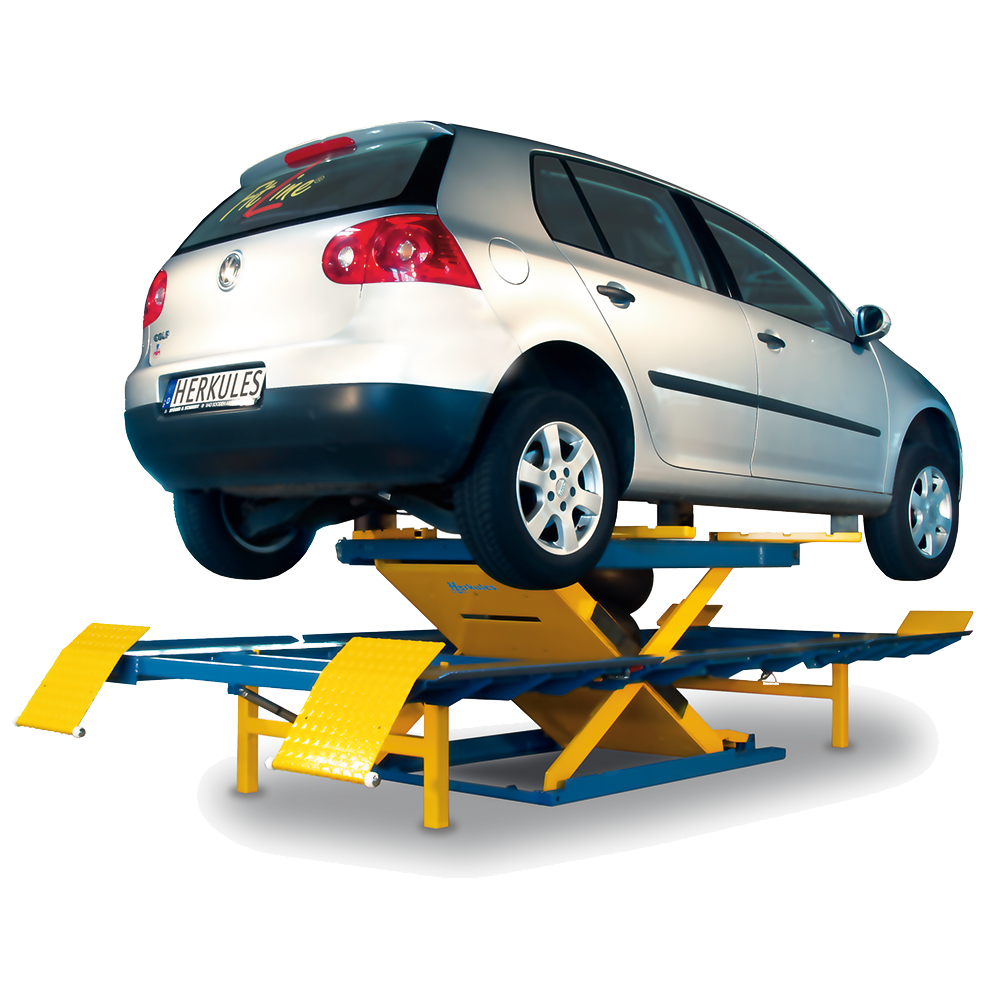

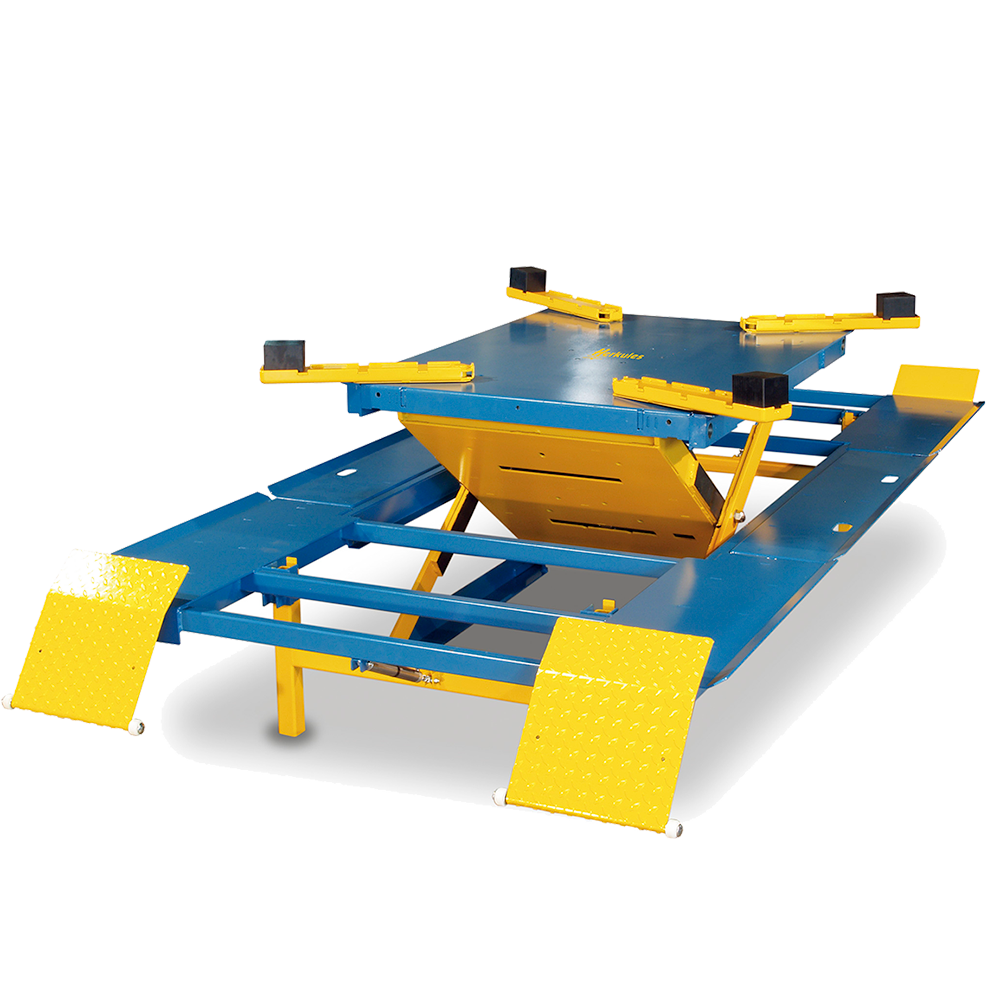

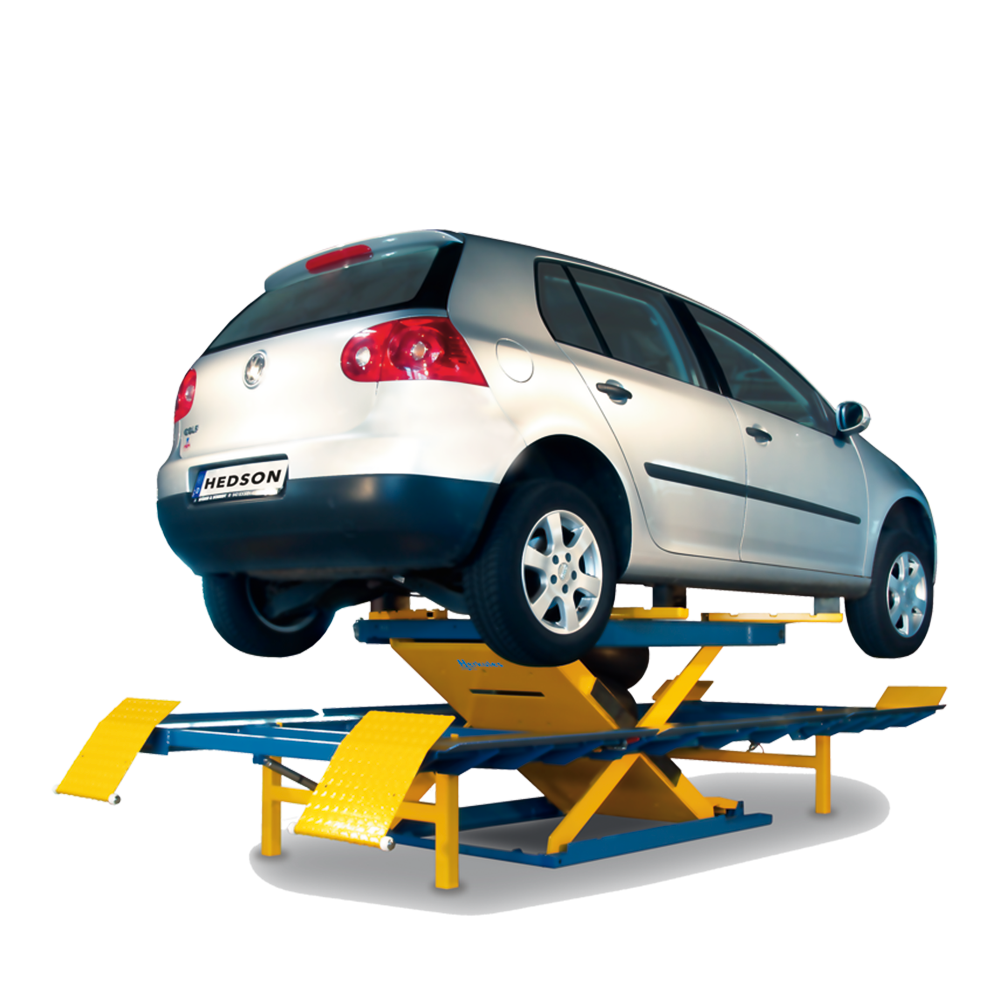

Herkules HLS 1200 DUO

Outstanding lift with double operation. One lift - two possibilities

Product Highlights - HLS 1200 DUO

High capacity

The Herkules HLS 1200 DUO is a user-friendly lift, with its loading capacity of 2,5 tons, for workshops who need to lift the vehicles either on wheels or for a wheel free work position

Space savings

The lift is easy to install and facilitate an individual planning of body shops by using the existing space optimally. It can be installed on-ground or flush mounted

Ergonomic

The lifting and lowering of the working height is done safely and smoothly optimizing the ergonomics and accessibility to all parts of the car during the job

Technical Specification

Herkules HLS 1200 DUO

Herkules HLS 1200 DUO -11
Part.no. HLS 1200-DUO-11
Herkules HLS 1200 DUO -14
Part.no. HLS 1200-DUO-14
Herkules HLS 1200 DUO -17
Part.no. HLS 1200-DUO-17
Weight
850 kg (1875 lbs)
Loading capacity
2,5 tons
Air supply
6 bar
Lifting height -11, -17
max. 930 mm
Lifting height -14
max. 825 mm
Working height -11, -17
~ 1100 mm
Working height -14
~ 1000 mm
Object height only -11, -17
110 mm
Pit depth -14
115 mm
Installation -11
On-ground
Installation -14
Flush mounted
Installation -17
Transmobile

Accessories

Pit frame (grids), zinc coated
Part.no. 300-323
Pit frame (concrete), zinc coated
Part.no. 300-326
Additional grids for the front end for HLS1200, 2 pieces, incl. support angles + fasteners
Part.no. 300-380
Drive over ramps, 2 pieces
Part.no. 300-430

Manual

Herkules HLS1200 - DUO 11-14
PDF
2.08 MB
Download
Herkules HLS1200 - DUO 11-14
PDF
3.32 MB
Download
Herkules K1200 - DUO 17-18
PDF
704.6 KB
Download
