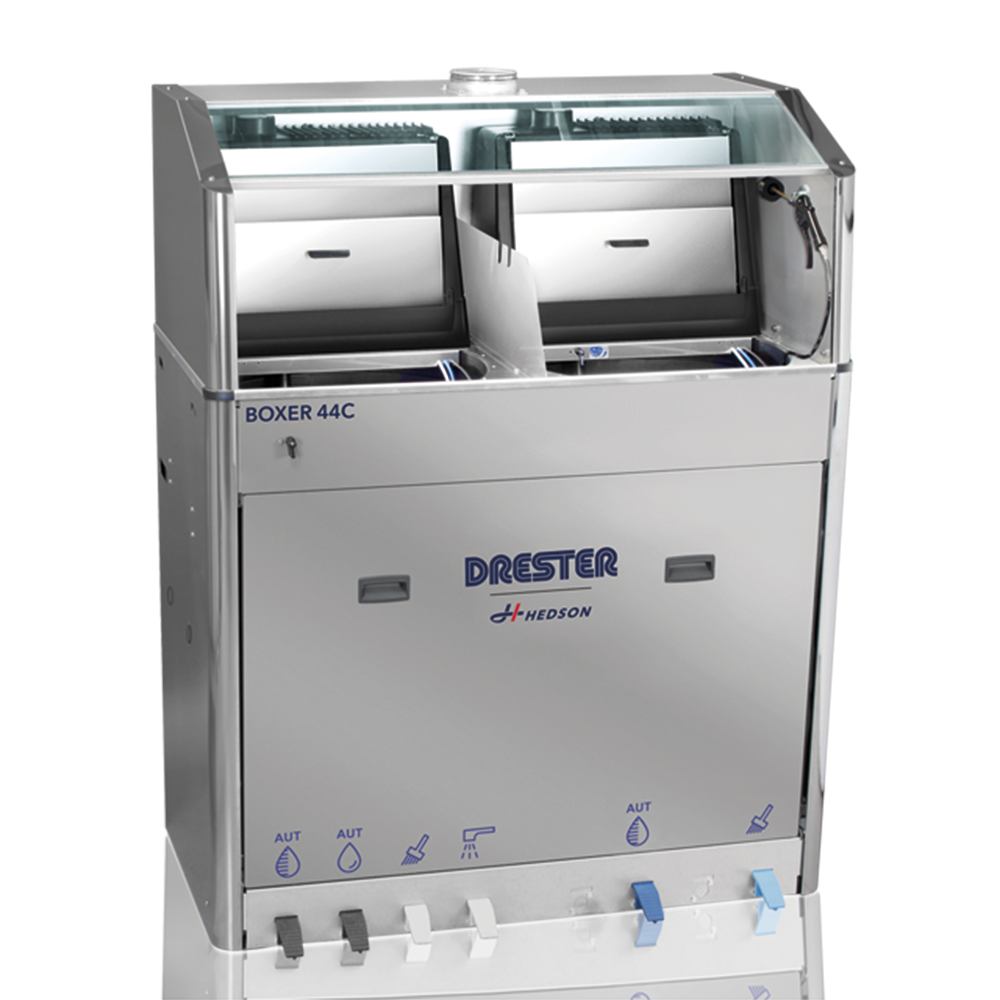

Drester Boxer Quattro Combo

Gun cleaner with the possibility with solvent-based and water-based cleaning

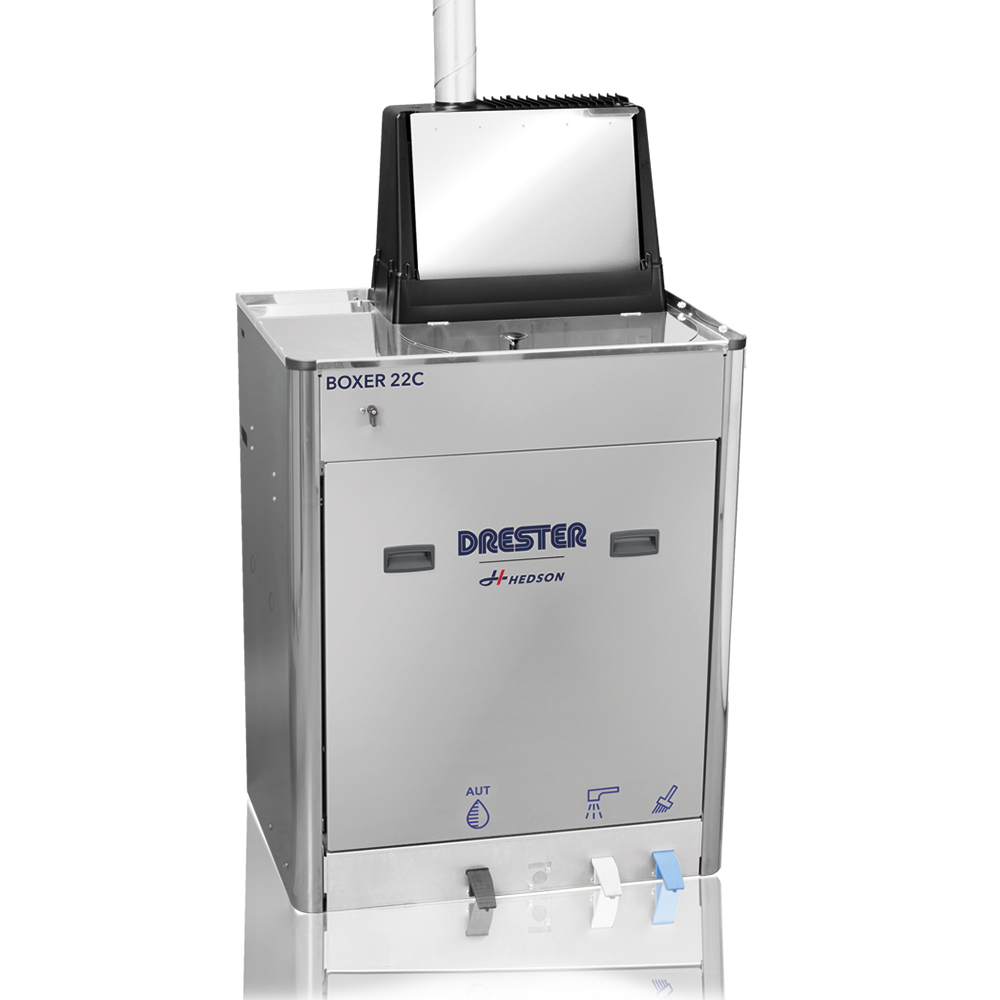

Drester Boxer Double Combo

Gun cleaner with the possibility with solvent-based and water-based cleaning

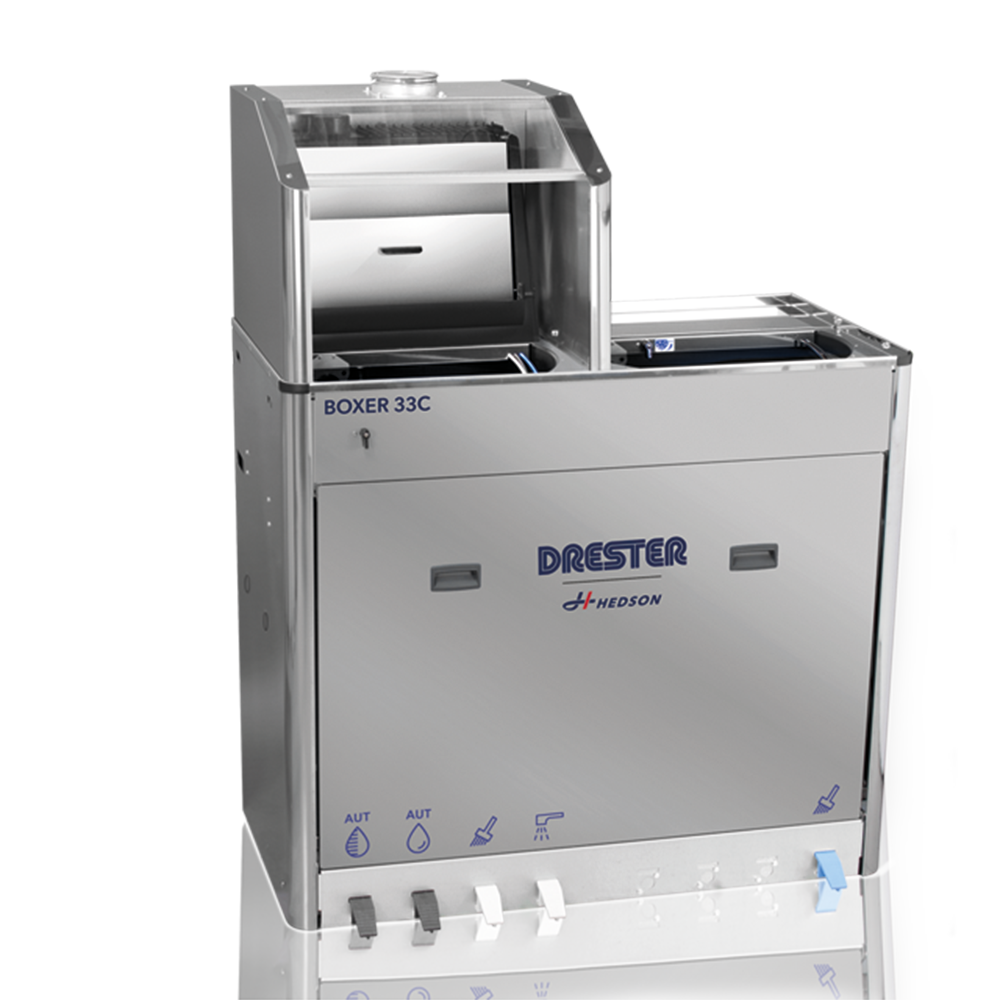

Drester Boxer Triple Combo

Gun cleaner with the possibility with solvent-based and water-based cleaning

Product Highlights - Boxer Combo

User friendly

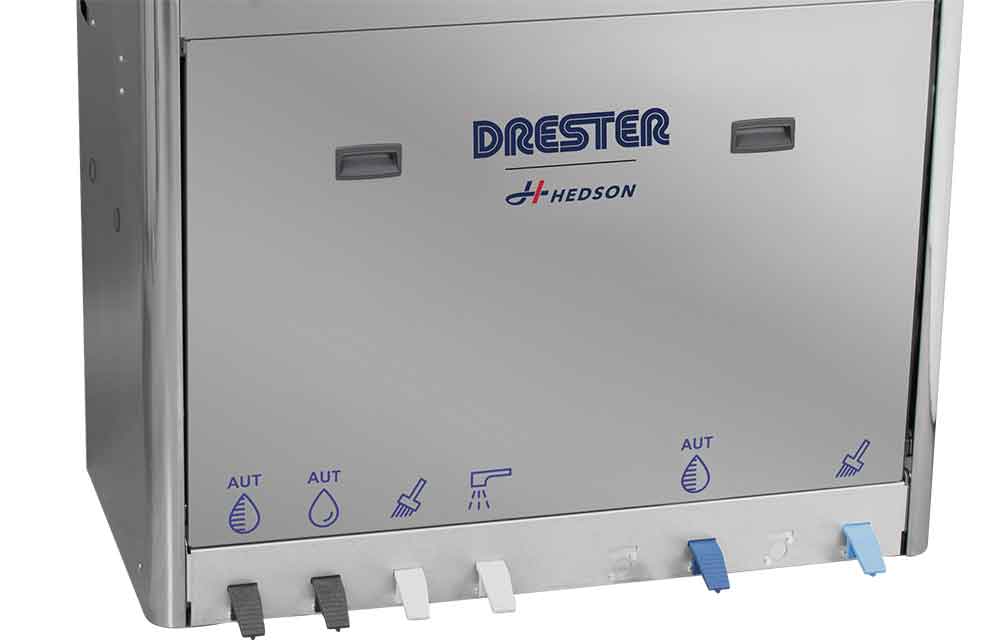

Foot-operated pumps, for hands-free operation and to reduce the solvent consumption. The gun cleaner is also equipped with air pressure regulator and water trap for durability. The specifically, designed spray nozzles gives an optimal wash power

Automatic

Equipped with an Auto box – a compact, effective and flexible washing compartment with integrated fluid channels, which makes less-cluttered space and the power of the pump results in more efficient cleaning, meaning that less clean solvent is needed per gun. The Auto box is located at the back of the unit, allowing a spacious manual washing sink at the front. At the same time as a gun is being cleaned automatically in the Auto box, manual cleaning is available, with a flow-through brush and a clean rinse nozzle

Patented

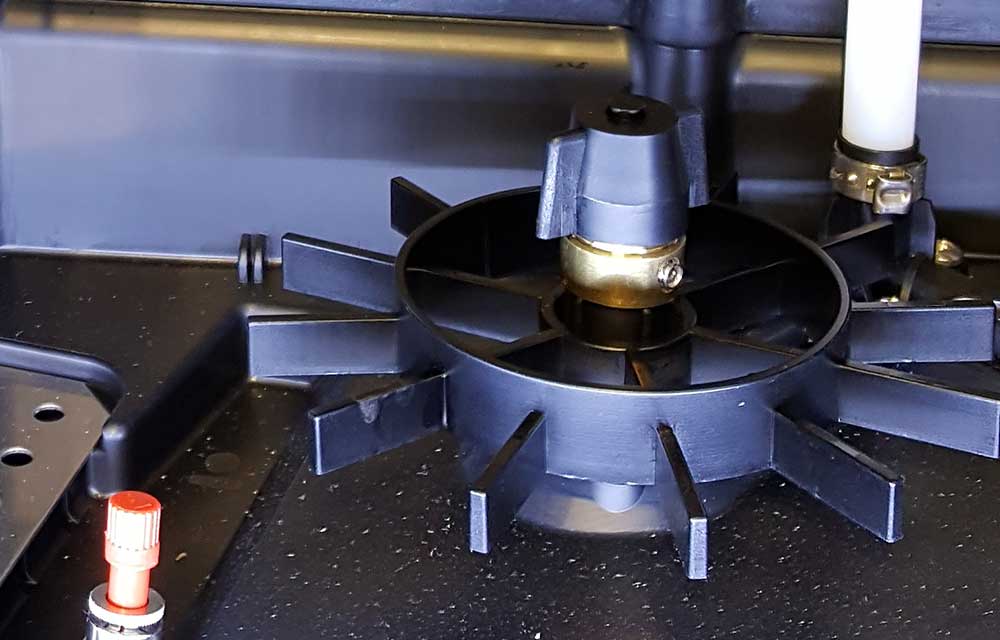

All Drester Boxer by Hedson gun cleaners are featured with a patented magnetic gun holder which simplify the cleaning and use of the gun cleaner. The magnetic gun holder pulls the trigger to open the paint channel and fixates a gun in seconds, in one simple step. It fixates the gun in a position where the gun’s air channels are protected, facing downwards, so there is no risk of solvent entering the air channels

Technical Specification

Drester Boxer Double Combo
Part.no. DI22C (stainless steel)

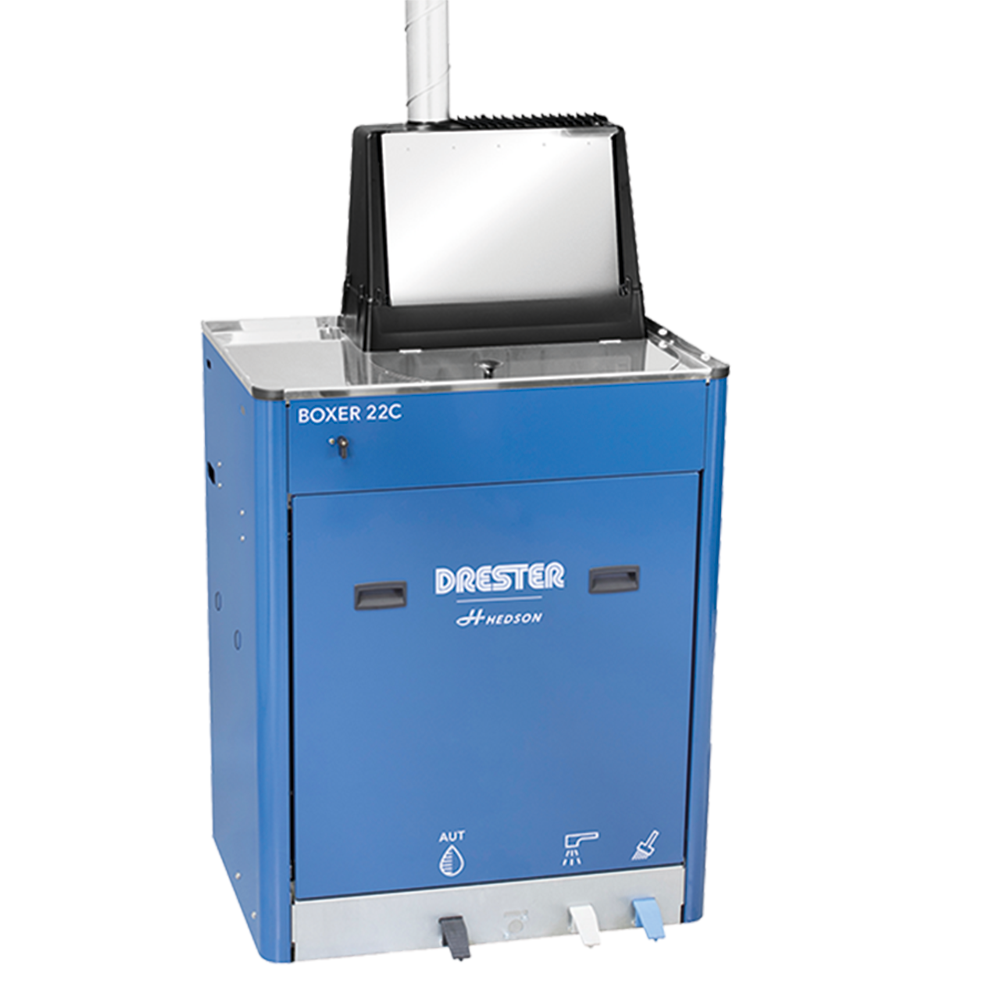

Drester Boxer Double Combo
Part.no. DB22C
Drester Boxer Triple Combo
Part.no. DI33C (stainless steel)

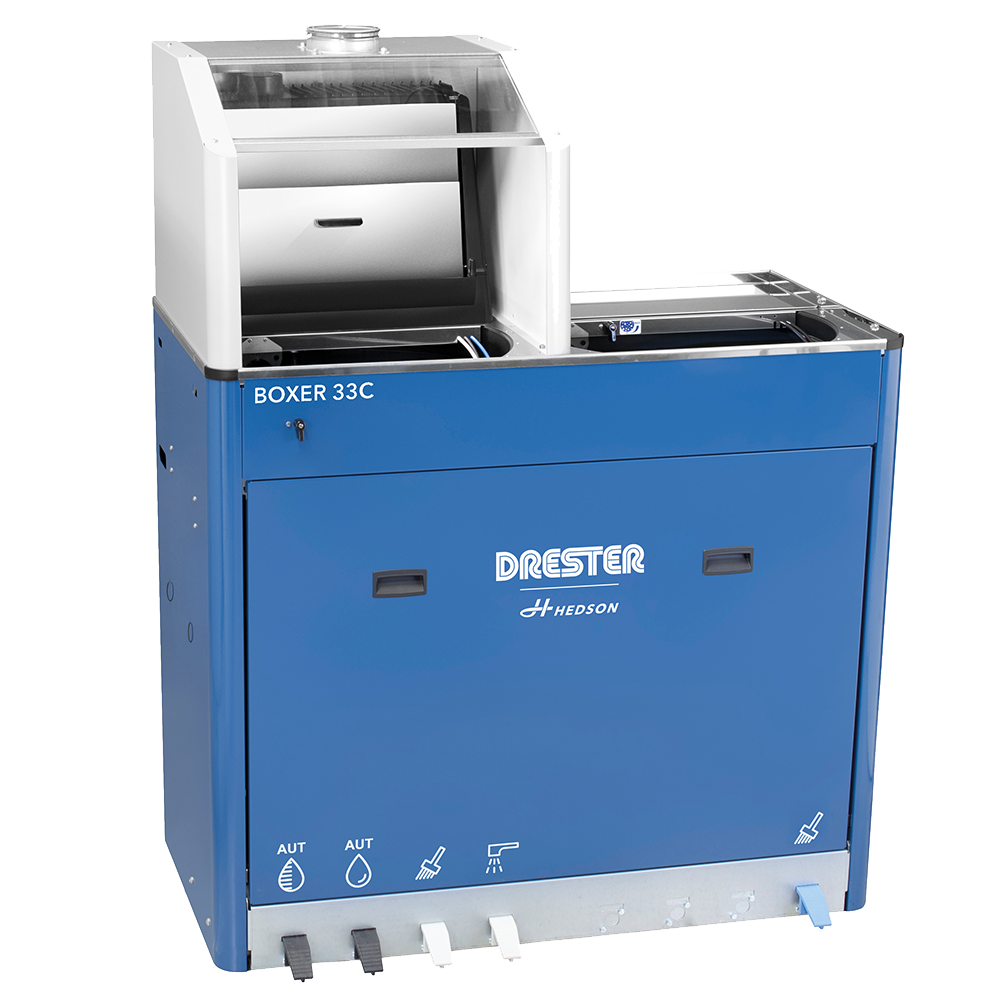

Drester Boxer Triple Combo
Part.no. DB33C
Drester Boxer Quattro Combo
Part.no. DI44C (stainless steel)

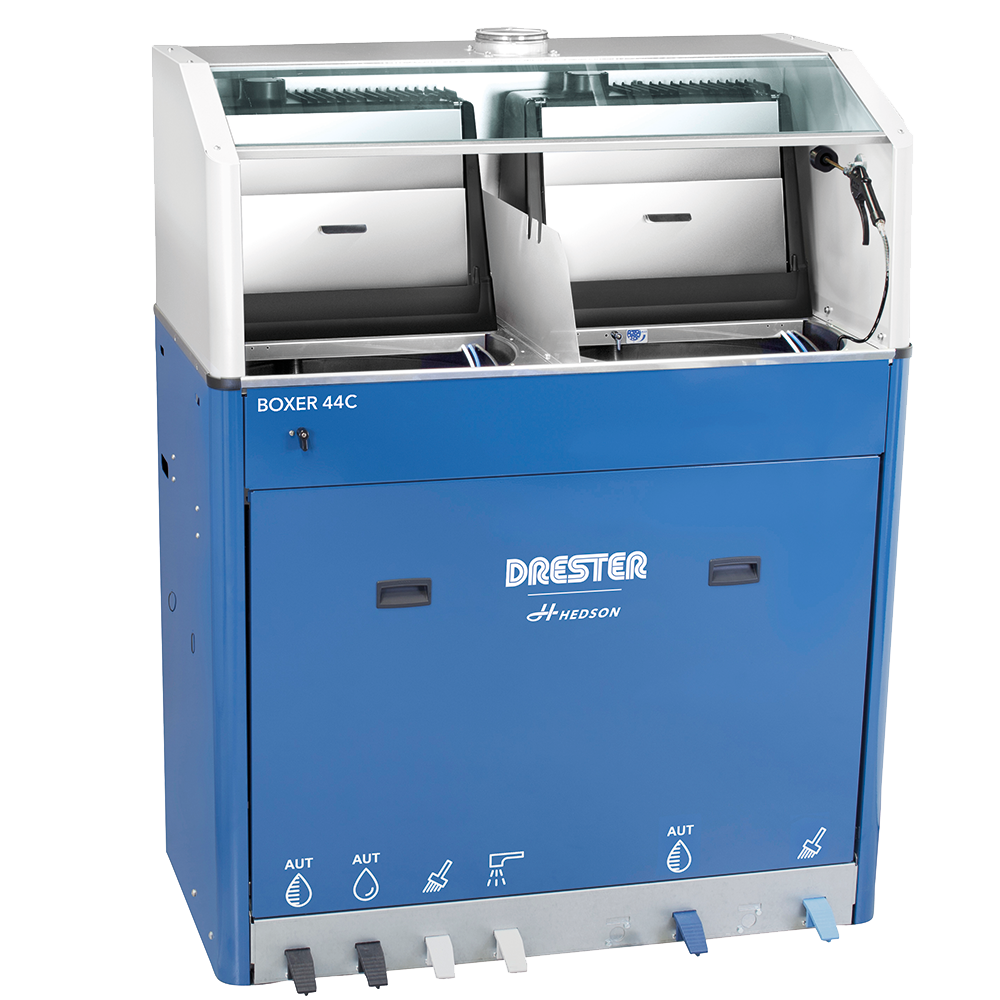

Drester Boxer Quattro Combo
Part.no. DB44C

Drester Boxer Double Combo

Weight
65 kg (140 lb)
Compressed air needed
7–12 bar (110–180 psi) 250 l/min (9 cfm)
Ventilation capacity required - with a 15 m extension
140 m³/h (82 cfm)
Ventilation capacity required - with a 5 m extension
148 m³/h (106 cfm)
Height
1510 mm (59,5”)
Width
835 mm (33,0”)
Max depth
650 mm (25,5”)
Depth at the floor
610 mm (24,0”)
Extractor diameter
80 mm (3,15”)

Drester Boxer Triple Combo

Weight
95 kg (210 lb)
Compressed air needed
7–12 bar (110–180 psi) 250 l/min (9 cfm) (450 l/min (16 cfm) with DRESTER AIRVENT 11660)
Ventilation capacity required
500 m³/h (310 cfm)
Height
1510 mm (59,5”)
Width
1185 mm (46,7”)
Max depth
650 mm (25,5”)
Depth at the floor
610 mm (24,0”)
Extractor diameter
125 mm (5”)

Drester Boxer Quattro Combo

Weight
105 kg (230 lb)
Compressed air needed
7–12 bar (110–180 psi) 250 l/min (9 cfm) (450 l/min (16 cfm) with DRESTER AIRVENT 11660)
Ventilation capacity required
800 m³/h (500 cfm)
Height
1510 mm (59,5”)
Width
1185 mm (46,7”)
Max depth
650 mm (25,5”)
Depth at the floor
610 mm (24,0”)
Extractor diameter
125 mm (5”)

Manual

Drester Boxer Double Combo (DB22C)
PDF
2.26 MB
Download
Drester Boxer Double Combo (DB22C2)
PDF
1.96 MB
Download

Product Add-ons

Consumables

Better cleaning performance, now with a new formula
Part.no. 230120

Read more
Filter

Filters for better cleaning performance
Part.no. R8701

Read more

Efficient cleaning of the
waste water
Part.no. R9211

Read more

Options

Minivent (3ph. 380V, 250W)
Part.no. 2050
Minivent (3ph. 415V, 250W)
Part.no. 2055
Minivent (1ph. 230V, 250W)
Part.no. 1294
Airvent
Part.no. 11660
Magnetic gun holder
Part.no. 15650
Kit for suction-fed gun
Part.no. 15640
Extension tube
Part.no. 10455
Adapter for side-fed gun
Part.no. 17270
Flow-through wash brush
Part.no. 13136
Wash brush (3pcs of 13136)
Part.no. R4466
Foldable lid (DB33C, DB44C)
Part.no. 15610
Water valve kit (DB22C, DB33C)
Part.no. 15620
Plexiglass (DB44C)
Part.no. 15630-1
Plexiglass (DB33C)
Part.no. 15630-3
3-minute kit
Part.no. 8910
Collecting tray (DB33C)
Part.no. 10960
